Assembly

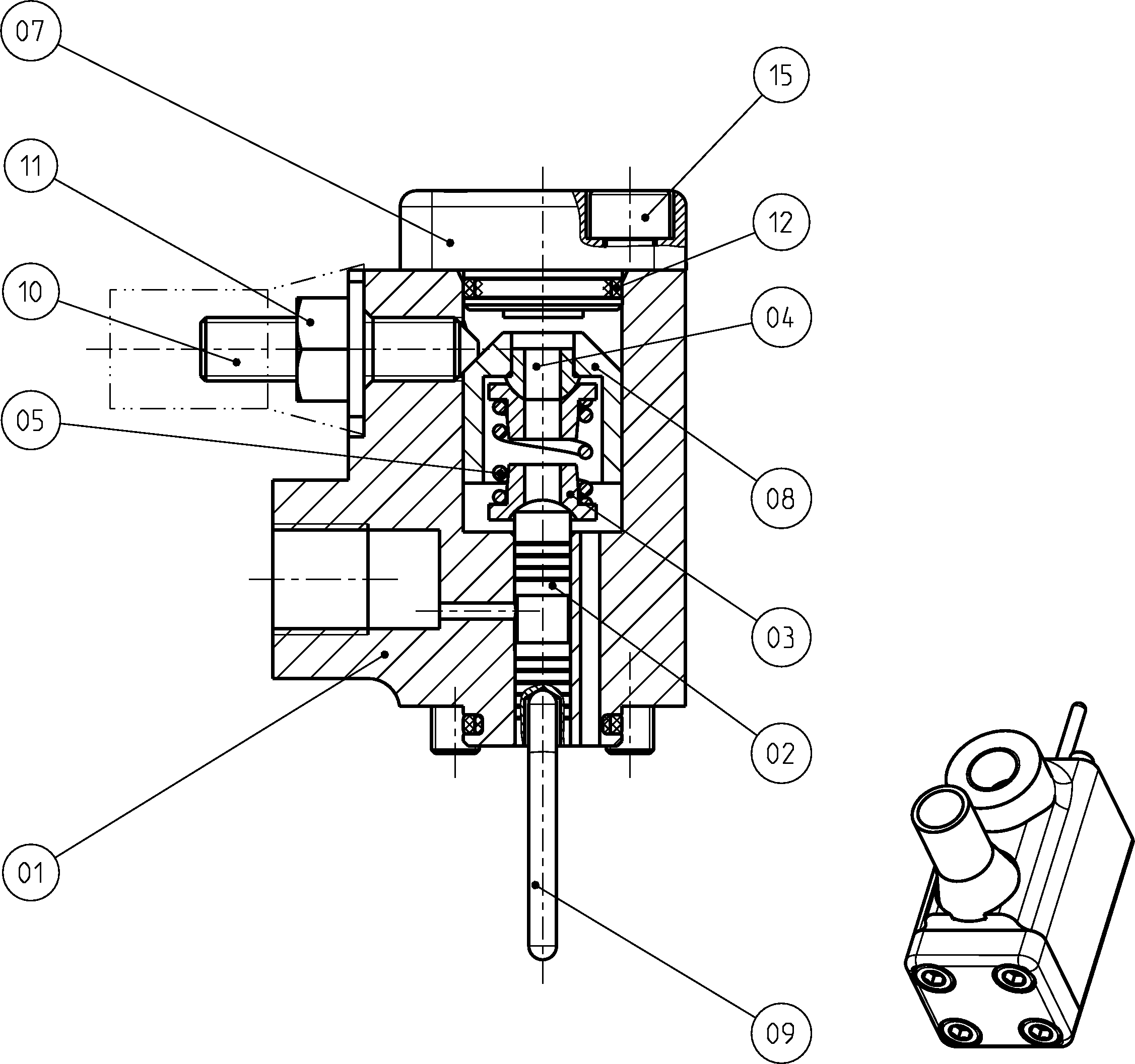

CONTROL ELEMENTR902027806
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902027804 | HOUSING | 1 | ||
| 2 | R902027805 | DIFFERENTIAL PISTON | 1 | |
| 3 | R909449618 | SPRING DISK | 2 | |
| R909449619 | SPRING WASHER | 1 | ||
| 5 | R909921099 | COMPRESSION SPRING | 1 | |
| R909449721 | COVER | 1 | ||
| 8 | R909921096 | ADJUSTING BUSHING | 1 | |
| 9 | R909439610 | PIN | 1 | |
| R909086268 | SETSCREW | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909084939 | O-RINGD | 2 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 |
