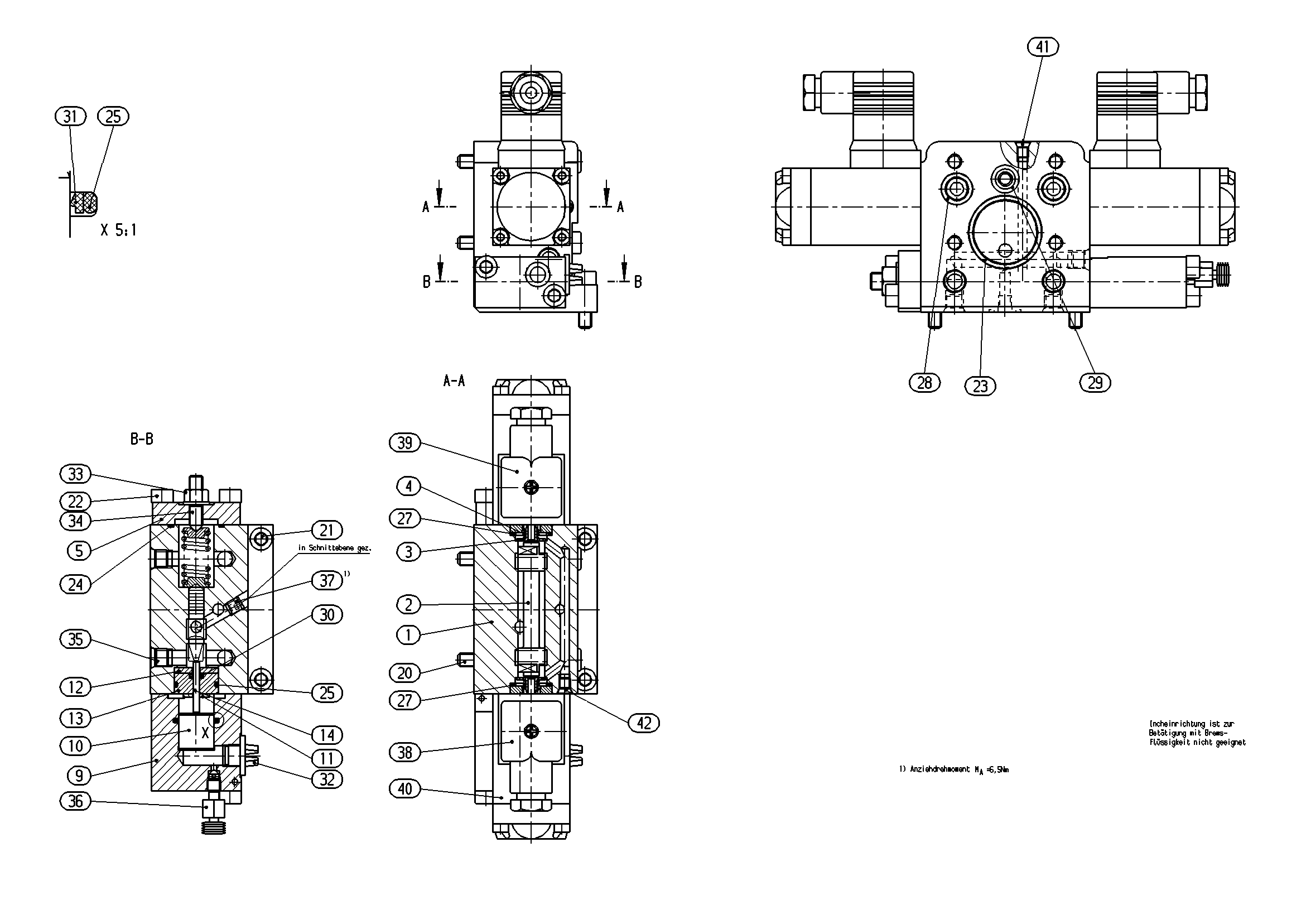

Assembly
INCHING DEVICER902028238
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902028136 | VALVE HOUSING | 1 | ||
| R902009009 | CONTROL PISTON | 1 | ||
| R909400503 | SPRING DISK | 2 | ||
| R909071362 | COMPRESSION SPRING | 2 | ||
| R902028142 | SPRING HOUSING | 1 | ||
| R902052893 | HOUSING COVER | 1 | ||
| R909401708 | PISTON | 1 | ||
| R909404505 | WASHER | 1 | ||
| R902128652 | SEAL BUSHING | 1 | ||
| R909922151 | STRAIGHT PIN | 1 | ||
| R909083028 | SOCKET HEAD CAP SCREW | 6 | ||
| R909083021 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083019 | SOCKET HEAD CAP SCREW | 2 | ||
| R902600641 | O-RINGD | 1 | ||
| R909086250 | O-RINGD | 1 | ||
| R909084939 | O-RINGD | 2 | ||
| R909083734 | O-RINGD | 2 | ||
| R909086332 | O-RINGD | 3 | ||
| R909085709 | O-RINGD | 1 | ||
| R902600639 | O-RINGD | 1 | ||
| R909153892 | ROD SEALD | 1 | ||
| R902602203 | SEAL SCREW | 1 | ||
| R909152425 | SEALING NUT | 1 | ||
| R909153284 | SETSCREW | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909831012 | BLEEDER VALVE | 1 | ||
| R902600705 | PLUG | 1 | ||
| R913022796 | PLUG-IN CONNECTOR | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R909428266 | SWITCHING SOLENOID Assembly parts list →L | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 |
