Assembly

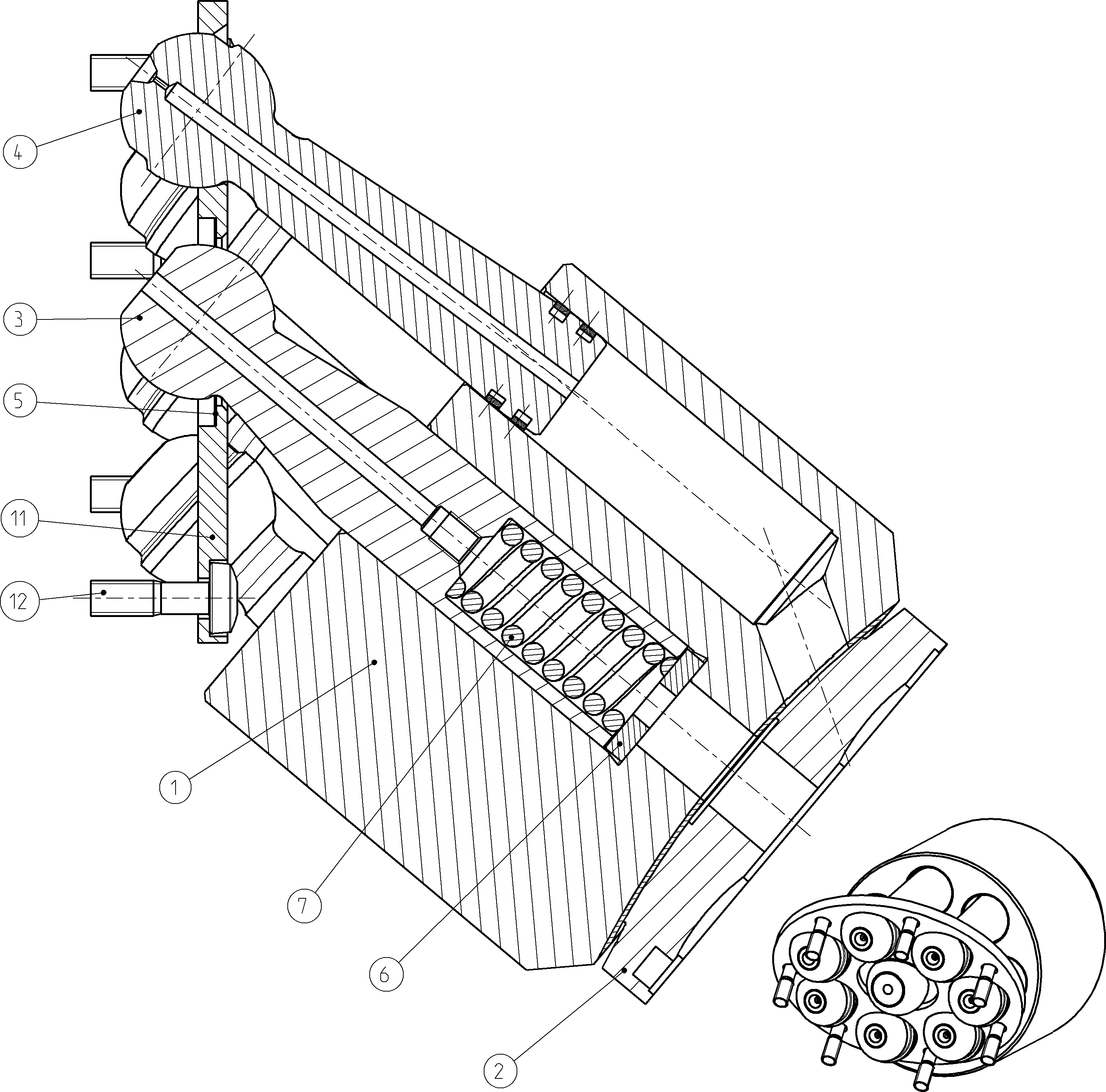

ROTARY GROUPR902028963
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902004398 | CYLINDER | 1 | ||
| R909650835 | CONTROL PLATE | 1 | ||
| R902027352 | CENTER PIN | 1 | ||
| R902031678 | PISTON | 7 | ||
| R909409612 | WASHER | 1 | ||
| R902077200 | ADJUSTMENT SHIM Assembly parts list →L | 1 | ||
| R902027353 | COMPRESSION SPRING | 1 | ||
| R909444064 | RETAINING PLATE | 1 | ||
| R902602395 | PAN-HEAD SCREW | 7 |
