Assembly

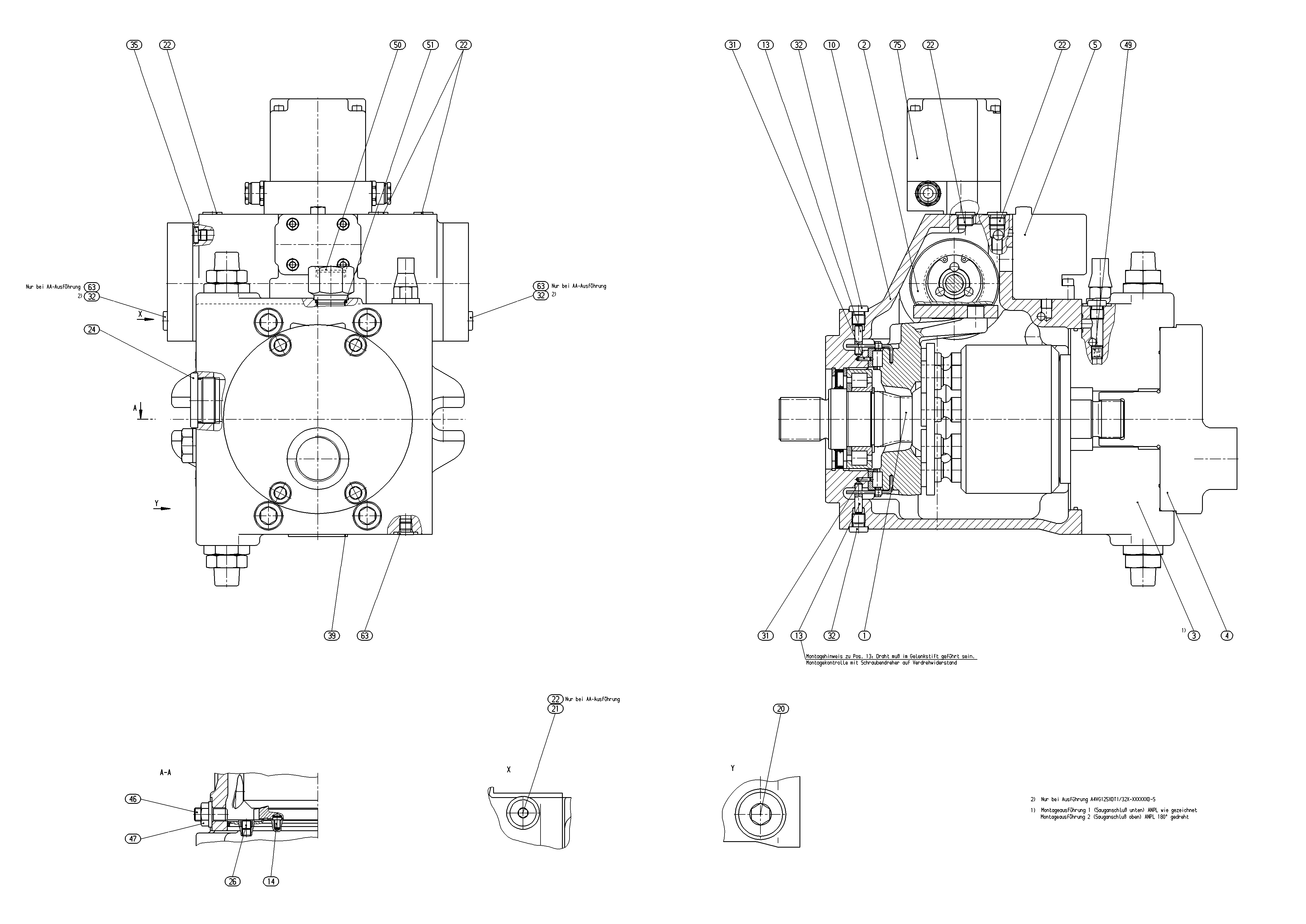

AXIAL-PISTON PUMPR902029188
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902026909 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902010595 | CONTROL Assembly parts list →L | 1 | ||
| R902025658 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902043287 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902007727 | CONTROL UNIT Assembly parts list →L | 1 | ||
| R902025548 | HOUSING | 1 | ||
| R902118633 | PIVOT PIN | 2 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909153378 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 4 | ||
| R909153862 | SCREW PLUG | 1 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909157392 | SCREW PLUG | 1 | ||
| R909154982 | SETSCREW | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909426707 | NOZZLE | 1 | ||
| R909432964 | THREADED PART | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909154478 | SCREW PLUG | 1 | ||
| R909601335 | SWITCH ASSEMBLY Assembly parts list →L | 1 | ||
| 98 | R902095530 | SEAL KIT | 1 |
