Assembly

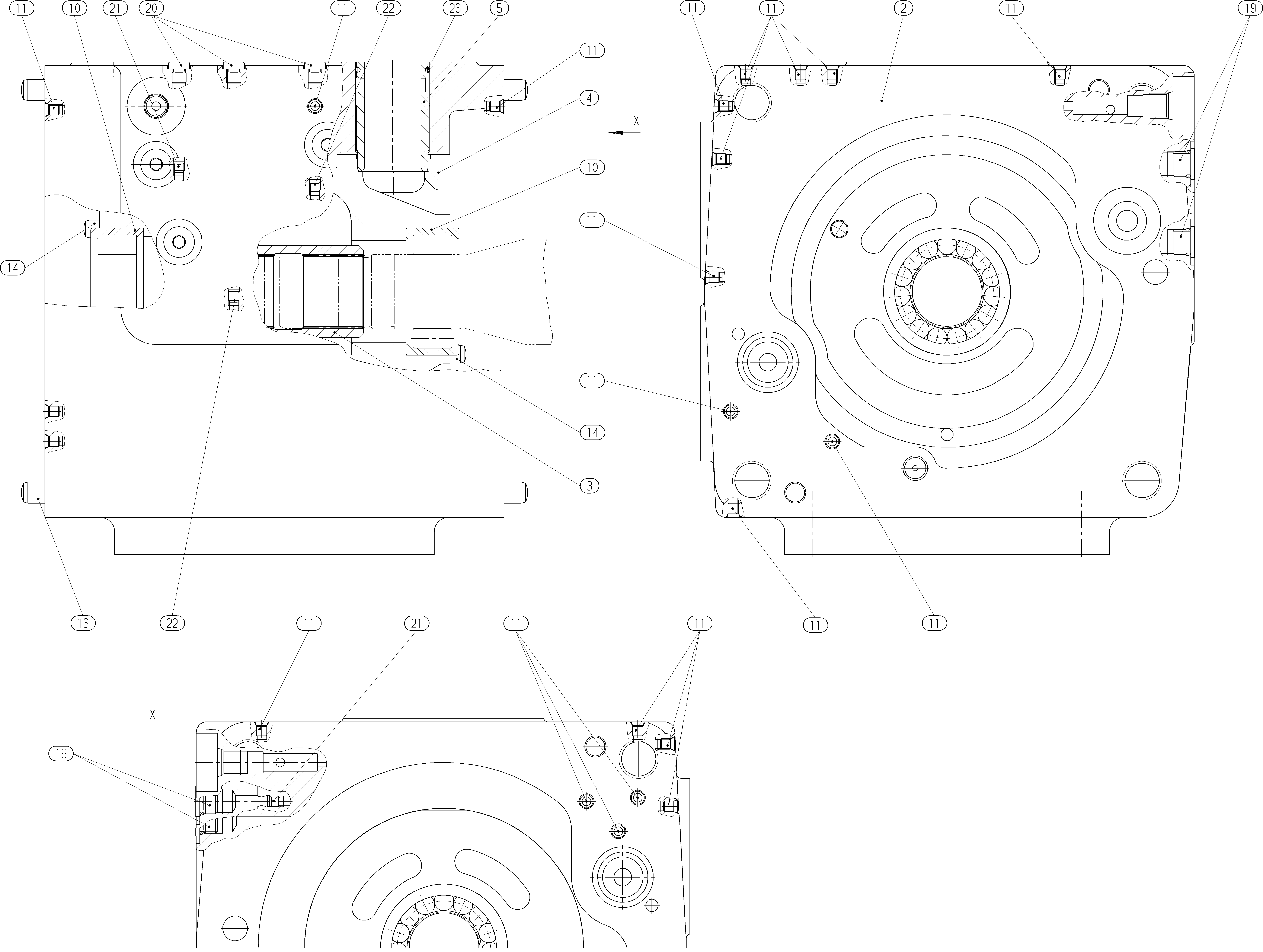

CONNECTION PLATER902029236
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902042671 | CONNECTION PLATE | 1 | ||
| R902018936 | COUPLING HUB | 1 | ||
| R902014622 | RING | 1 | ||
| R902064683 | ARRESTING BUSH | 1 | ||
| R909156665 | CYL. ROLLER BEARING | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 10 | ||
| R913009673 | STRAIGHT PIN | 4 | ||
| R909830241 | STRAIGHT PIN | 2 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909153364 | SCREW PLUGD | 3 | ||
| R909156495 | NOZZLE | 2 | ||
| R909156494 | NOZZLE | 2 | ||
| R902602037 | SNAP RING | 1 |
