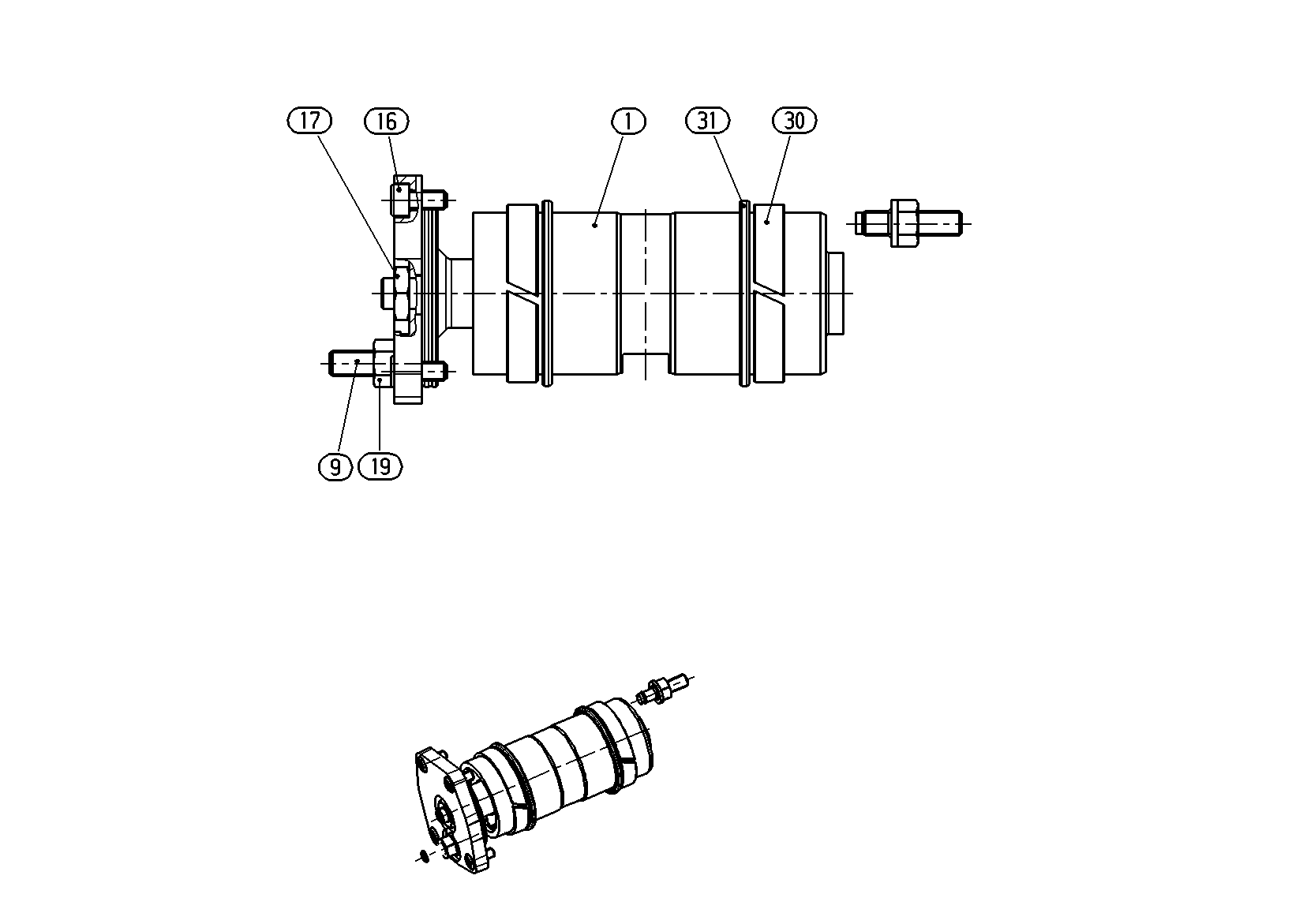

Assembly
CONTROLR902029935
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909652167 | POSITIONING PISTON | 1 | ||
| 2 | R909440855 | ROD | 1 | |
| 3 | R902029745 | COVER | 1 | |
| 5 | R909436219 | RING | 1 | |
| 5 | R909436220 | RING | 1 | |
| 5 | R909436221 | RING | 1 | |
| 5 | R909436222 | RING | 1 | |
| 5 | R909436223 | RING | 1 | |
| 5 | R909436224 | RING | 1 | |
| 5 | R909650222 | RING | 1 | |
| 5 | R909650223 | RING | 1 | |
| 5 | R909650224 | RING | 1 | |
| 6 | R902035529 | SPRING DISK | 1 | |
| 7 | R909921080 | SPACER BUSHING | 1 | |
| 7 | R902049839 | SPACER BUSHING | 1 | |
| 7 | R909921082 | SPACER BUSHING | 1 | |
| 7 | R902049700 | SPACER BUSHING | 1 | |
| 7 | R902049701 | SPACER BUSHING | 1 | |
| 7 | R902049840 | SPACER BUSHING | 1 | |
| 8 | R902035530 | COMPRESSION SPRING | 1 | |
| 10 | R902035531 | SPRING DISK | 1 | |
| 13 | R909086377 | O-RINGD | 1 | |
| 15 | R909085359 | RETAINING RING | 1 | |
| R909083018 | SOCKET HEAD CAP SCREW | 4 | ||
| R902017521 | HEXAGON NUT | 1 | ||
| 18 | R909083724 | O-RINGD | 1 | |
| R902600558 | ROD GUIDANCE RING | 2 | ||
| R902602138 | ROD SEALD | 2 |
