Assembly

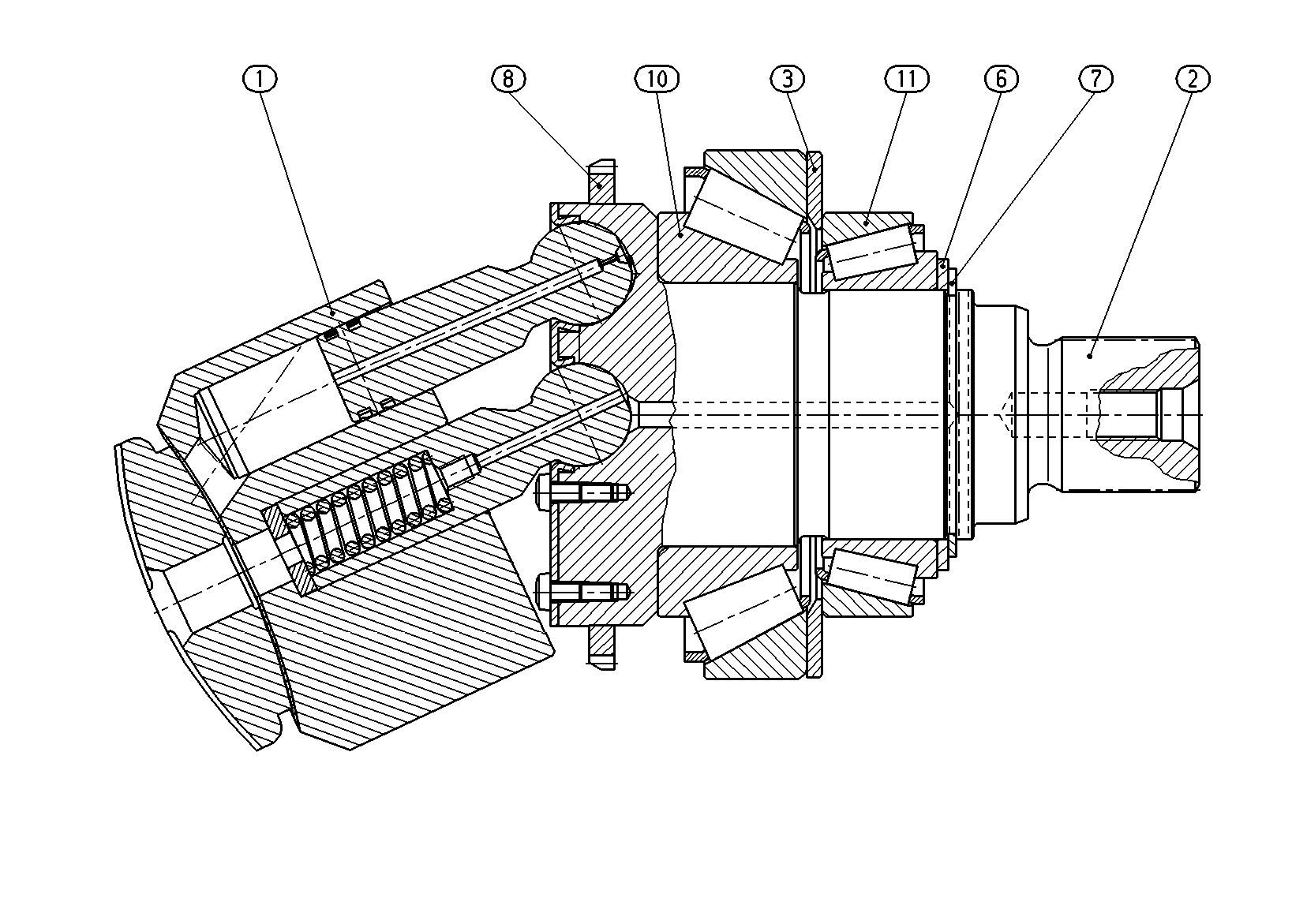

ROTARY GROUPR902030967
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902028909 | ROTARY GROUP Assembly parts list →L | 1 | |
| R902040195 | DRIVE SHAFT | 1 | ||
| R909651659 | SHIM RING | 1 | ||
| R909921766 | SUPPORTING DISC | 1 | ||
| R909921767 | SUPPORTING DISC | 1 | ||
| R909921768 | SUPPORTING DISC | 1 | ||
| R909921769 | SUPPORTING DISC | 1 | ||
| R909921770 | SUPPORTING DISC | 1 | ||
| R909921771 | SUPPORTING DISC | 1 | ||
| R909921772 | SUPPORTING DISC | 1 | ||
| R909921773 | SUPPORTING DISC | 1 | ||
| 7 | R909086744 | RETAINING RING | 1 | |
| R909922169 | ANNULAR GEAR | 1 | ||
| R902600976 | TAPERED-ROLLER BEARING | 1 | ||
| 11 | R909157197 | TAPERED-ROLLER BEARING | 1 |
