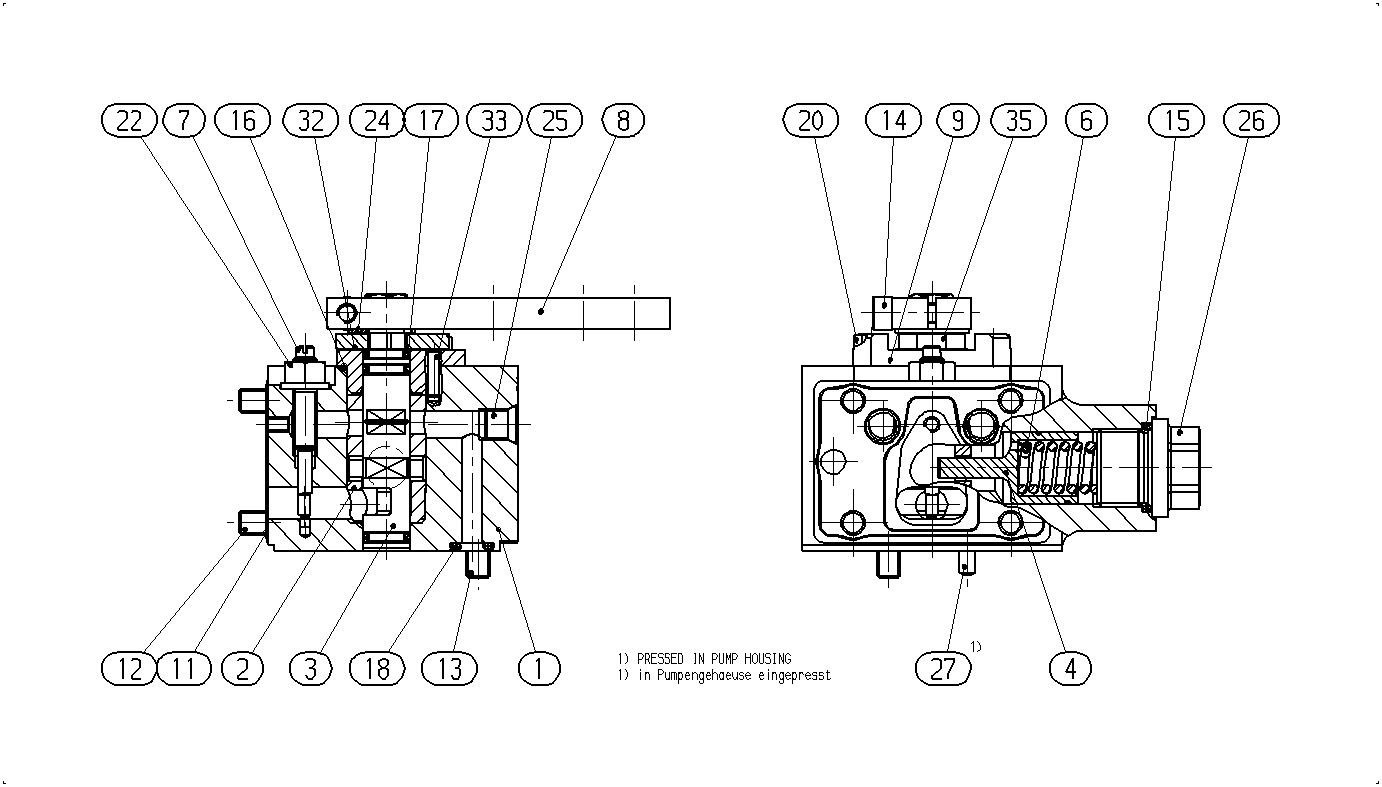

Assembly
BASIC UNITR902031250
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902012989 | HOUSING | 1 | ||
| R902013983 | CONTROL SLEEVE | 1 | ||
| R902032749 | CONTROL SHAFT | 1 | ||
| R909650254 | SPRING BUSH | 1 | ||
| R909421991 | COMPRESSION SPRING | 1 | ||
| R902010473 | ECCENTRIC PIN | 1 | ||
| R909650273 | LEVER | 1 | ||
| R902025490 | COVER | 1 | ||
| R902603829 | SEALD | 1 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| R909084385 | SOCKET HEAD CAP SCREW | 1 | ||
| R909083012 | SOCKET HEAD CAP SCREW | 1 | ||
| R909083757 | O-RINGD | 1 | ||
| — | O-RINGD | 1 | ||
| R909083728 | O-RINGD | 3 | ||
| R909157512 | O-RINGD | 1 | ||
| R909083183 | SOCKET HEAD CAP SCREW | 2 | ||
| R909152425 | SEALING NUT | 1 | ||
| R909085131 | LOCKING WASHER | 1 | ||
| — | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909086753 | SCREW PLUG | 1 | ||
| R913009663 | STRAIGHT PIN | 1 | ||
| R902600768 | SHIM RING | 1 | ||
| R913016374 | SLOTTED SPRING PIN | 1 | ||
| R902025491 | STOP PIECE | 1 | ||
| 98 | R902002385 | SEAL KIT | 1 |
