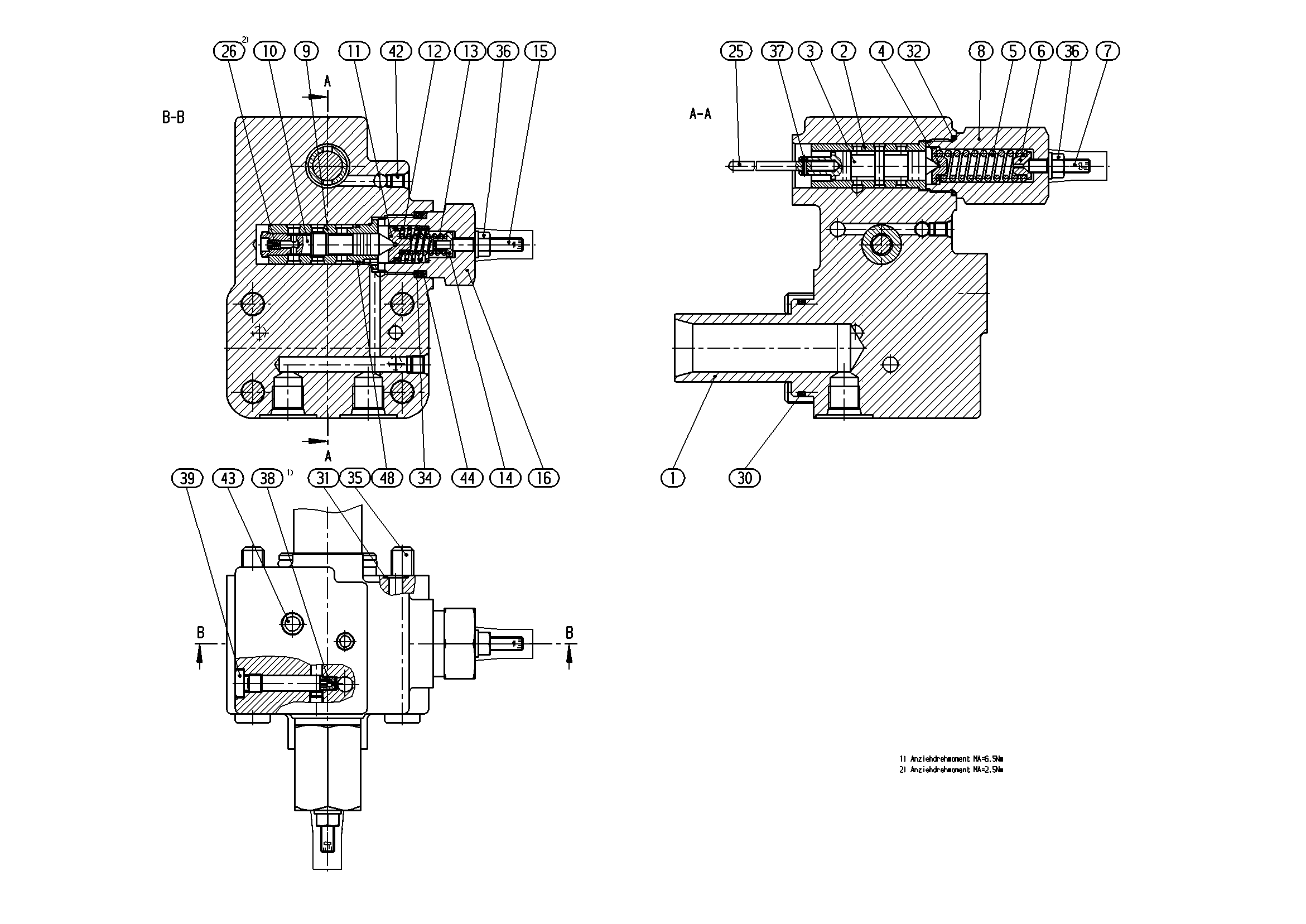

Assembly
CONTROL UNITR902031848
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902036773 | CONTROL HOUSING | 1 | ||
| R909436593 | CONTROL SLEEVE | 1 | ||
| R909444000 | CONTROL PISTON | 1 | ||
| R909431526 | SPRING DISK | 1 | ||
| R909435520 | COMPRESSION SPRING | 1 | ||
| R909420414 | SPRING DISK | 1 | ||
| R909420991 | SETSCREW | 1 | ||
| R909435522 | SCREW PLUG | 1 | ||
| R909444564 | CONTROL SLEEVE | 1 | ||
| R909443934 | CONTROL PISTON | 1 | ||
| R909418698 | SPRING DISK | 1 | ||
| R909410091 | COMPRESSION SPRING | 1 | ||
| R909432906 | COMPRESSION SPRING | 1 | ||
| R909422325 | SPRING DISK | 1 | ||
| R909421402 | SETSCREW | 1 | ||
| R909435552 | SCREW PLUG | 1 | ||
| R909439025 | PIN | 1 | ||
| R909443522 | PIN | 1 | ||
| R909443932 | PIN | 1 | ||
| R902276325 | THROTTLE SCREW | 1 | ||
| R909085545 | O-RING | 1 | ||
| R909086498 | O-RINGD | 3 | ||
| R909086517 | O-RINGD | 1 | ||
| R909083797 | O-RINGD | 1 | ||
| R909083071 | SOCKET HEAD CAP SCREW | 4 | ||
| R909152425 | SEALING NUTD | 2 | ||
| R902600212 | SLOTTED SPRING PIN | 1 | ||
| R909156492 | NOZZLE | 1 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R909087626 | BACKUP RINGD | 1 | ||
| R909156358 | R-RINGD | 1 |
