Assembly

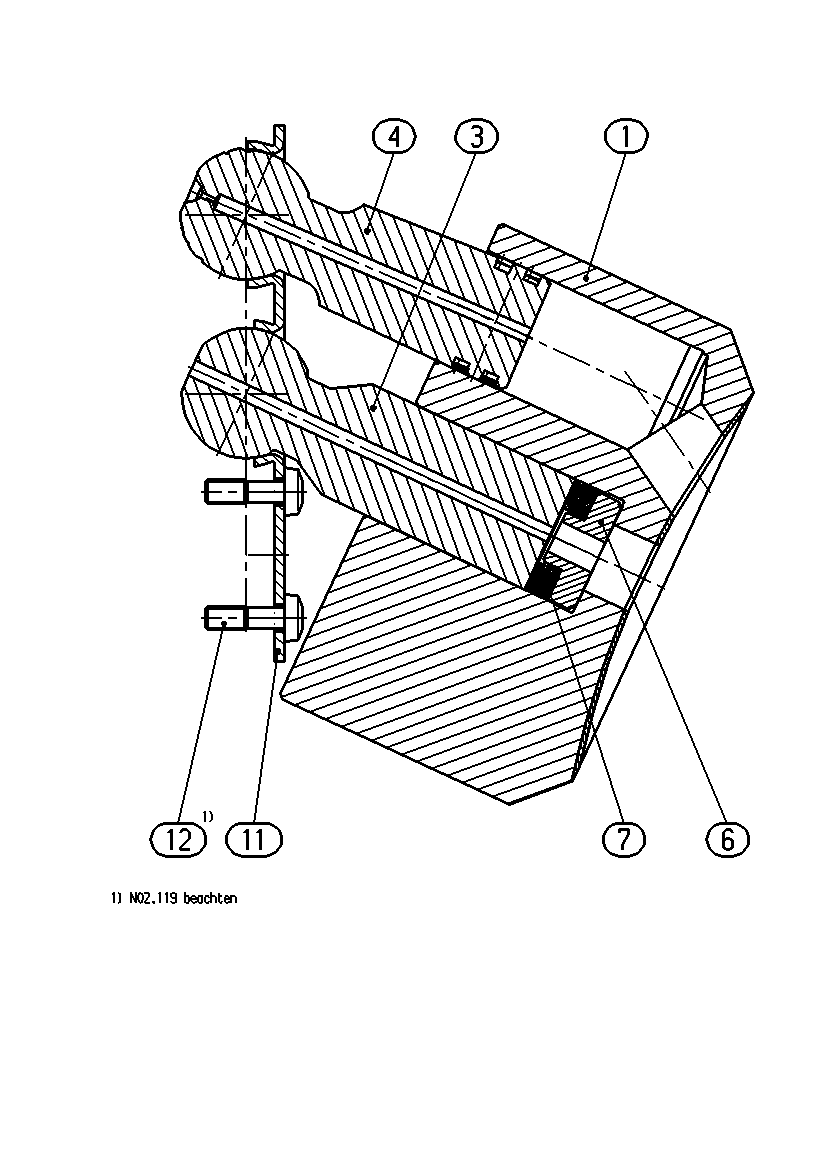

ROTARY GROUPR902031947
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902036684 | CYLINDER | 1 | ||
| R902080908 | CENTER PIN | 1 | ||
| R902031949 | PISTON | 7 | ||
| R902073933 | SPRING DISK Assembly parts list →L | 1 | ||
| 7 | R909418513 | DISC SPRING | 4 | |
| 11 | R902033027 | RETAINING PLATE | 1 | |
| R902602395 | PAN-HEAD SCREW | 14 |
