Assembly

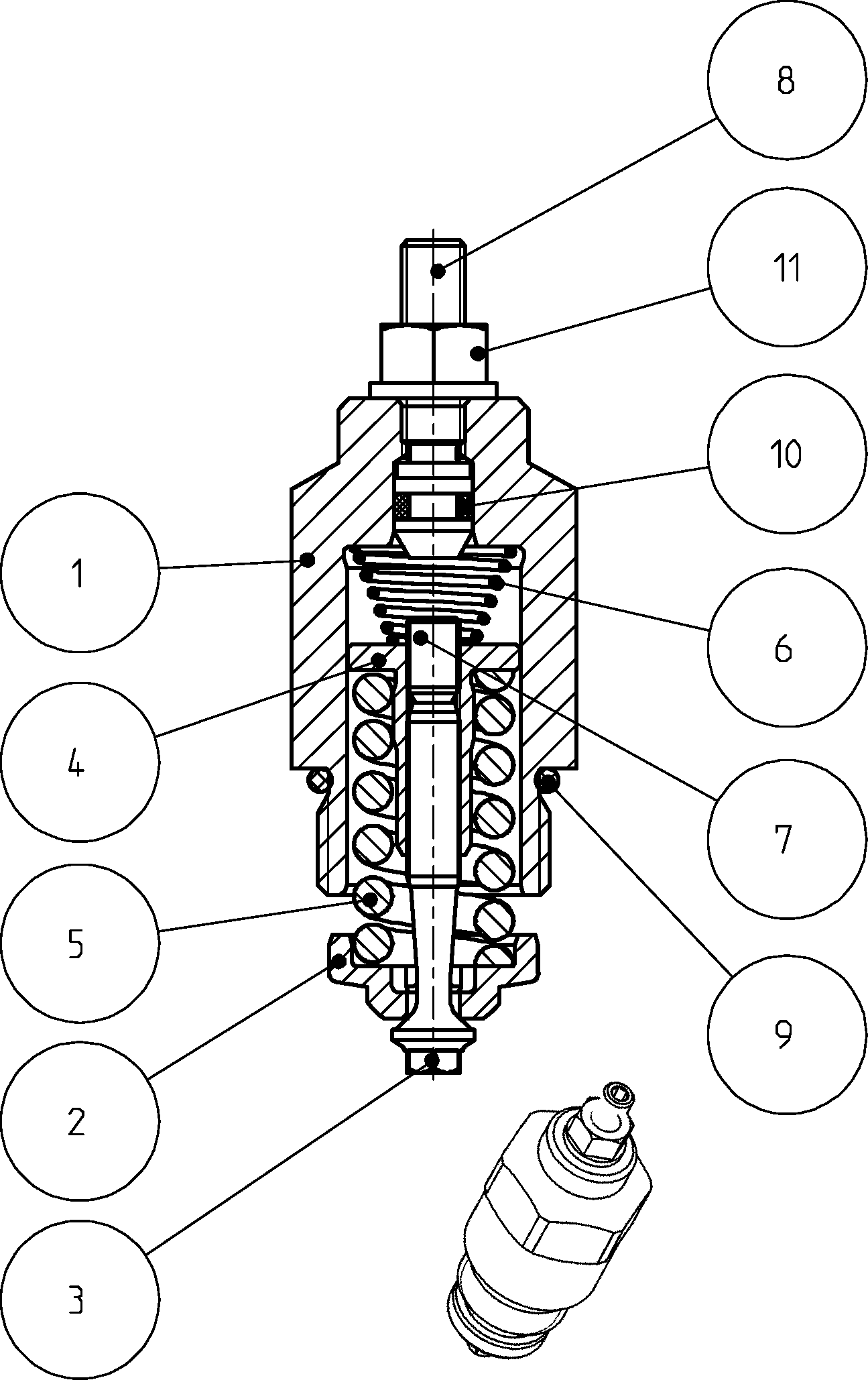

PRESSURE RELIEF VALVER902032828
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902025138 | SCREW PLUG | 1 | ||
| R902016471 | VALVE PLATE | 1 | ||
| R902000660 | VALVE STEM | 1 | ||
| R902000759 | EXPANSION PIECE | 1 | ||
| R902016462 | COMPRESSION SPRING | 1 | ||
| R902254586 | COMPRESSION SPRING | 1 | ||
| R902000658 | SETSCREW | 1 | ||
| R902025139 | ADJUSTING SCREW | 1 | ||
| R909830863 | O-RINGD | 1 | ||
| R909083723 | O-RING | 1 | ||
| R909152425 | SEALING NUT | 1 |
