Assembly

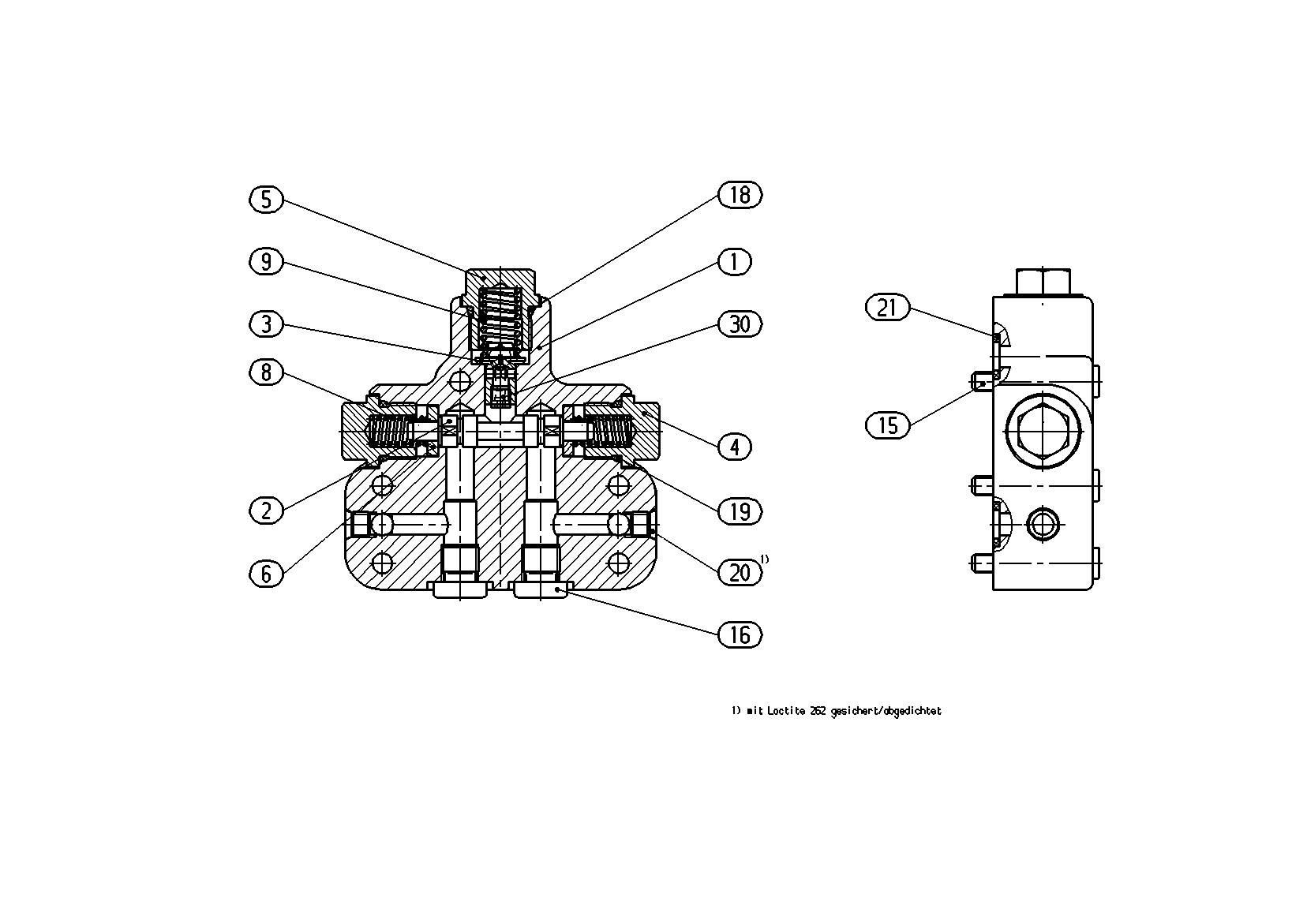

FLUSH/BOOST PRESSURE VALVER902033685
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902033687 | FLUSHING VALVE HOUSING | 1 | ||
| R909432410 | FLUSHING PISTON | 1 | ||
| R902032530 | VALVE SPOOL | 1 | ||
| R902033689 | SCREW PLUG | 2 | ||
| R902033688 | SCREW PLUG | 1 | ||
| R909417112 | WASHER | 2 | ||
| R902011921 | COMPRESSION SPRING | 2 | ||
| R909417848 | COMPRESSION SPRING | 1 | ||
| R909083025 | SOCKET HEAD CAP SCREW | 5 | ||
| R909156650 | SCREW PLUGD | 2 | ||
| R909830862 | O-RINGD | 1 | ||
| R909830860 | O-RINGD | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909152688 | O-RINGD | 3 | ||
| R909157343 | NOZZLE | 1 |
