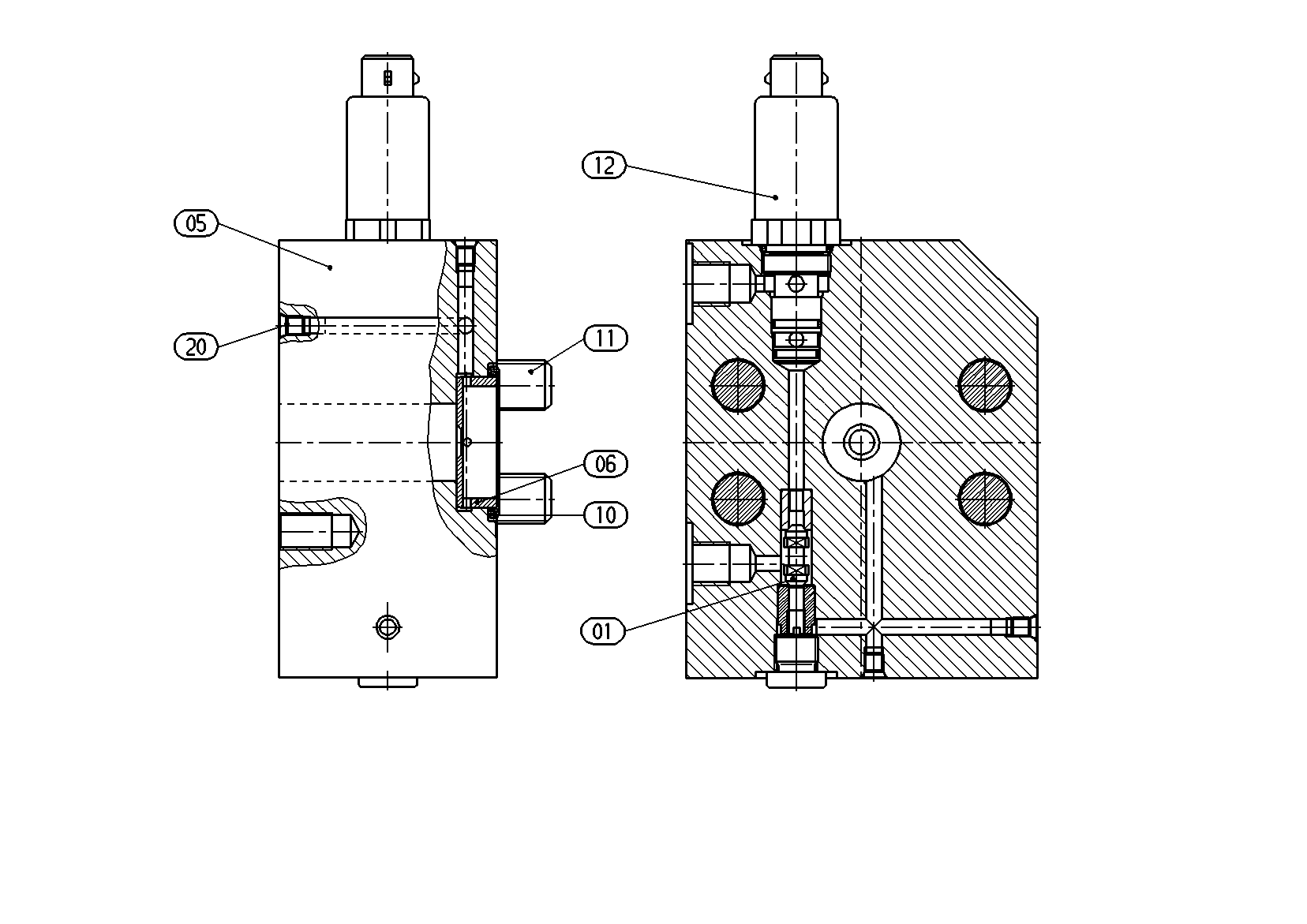

Assembly
DIRECTIONAL-CONTROL VALVER902033794
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902030012 | SHUTTLE VALVE Assembly parts list →L | 1 | |
| 5 | R902029397 | ORIFICE FLANGE | 1 | |
| 6 | R902033793 | ORIFICE | 1 | |
| R909150107 | O-RINGD | 1 | ||
| 11 | R909083137 | SOCKET HEAD CAP SCREW | 4 | |
| 12 | R902600516 | DIRECTIONAL-CONTROL VALVE | 1 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 |
