Assembly

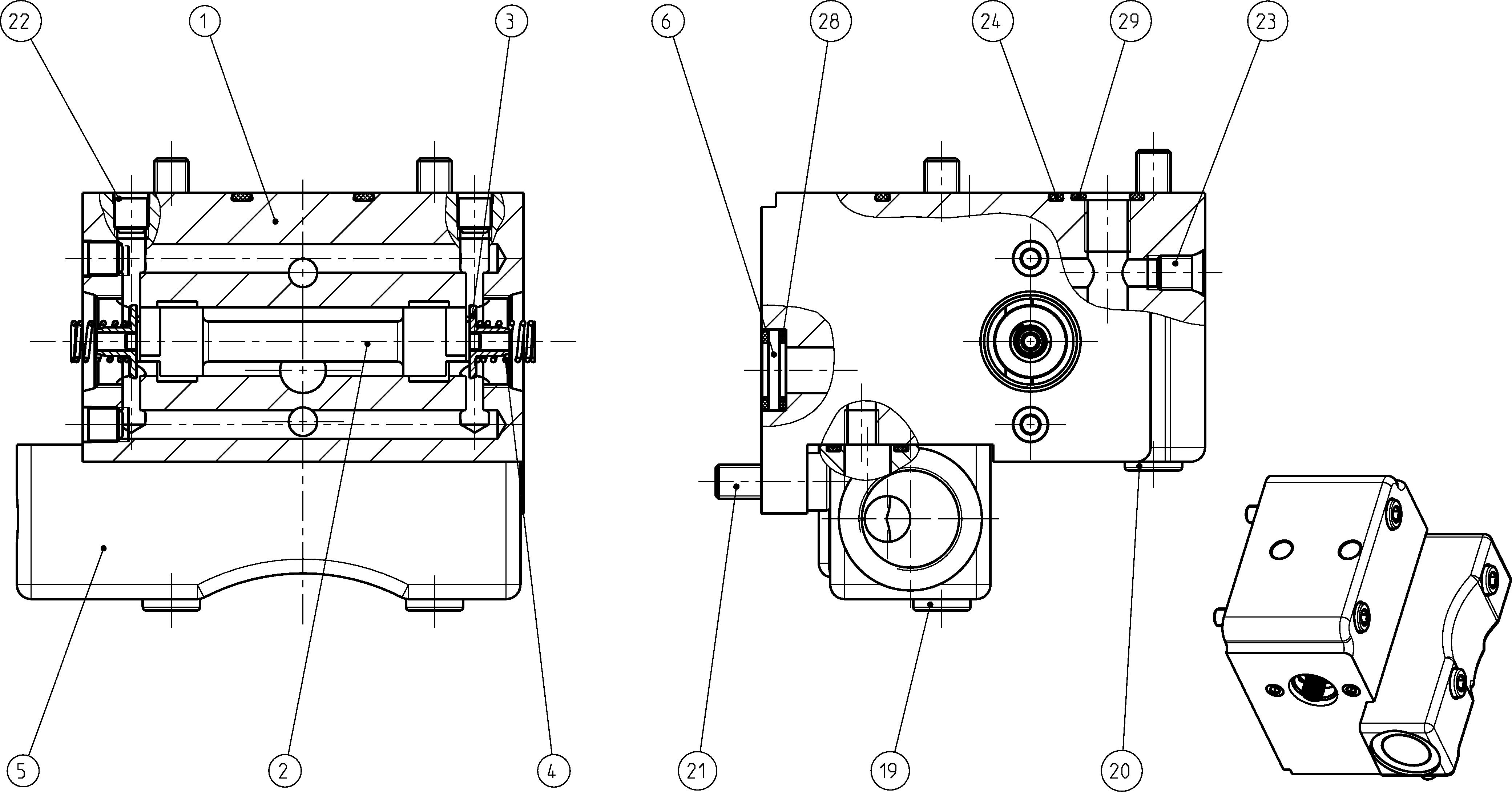

VALVE HOUSINGR902034763
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902139471 | VALVE HOUSING | 1 | ||
| R902034730 | CONTROL PISTON | 1 | ||
| R902236432 | SPRING DISK | 2 | ||
| R909071362 | COMPRESSION SPRING | 2 | ||
| R902041082 | CONNECTION COVER | 1 | ||
| R902016381 | SHIM RING | 1 | ||
| R902600322 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083028 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083187 | SOCKET HEAD CAP SCREW | 2 | ||
| R902600705 | PLUG | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902600641 | O-RINGD | 1 | ||
| R909086178 | O-RINGD | 5 | ||
| R909085709 | O-RINGD | 1 |
