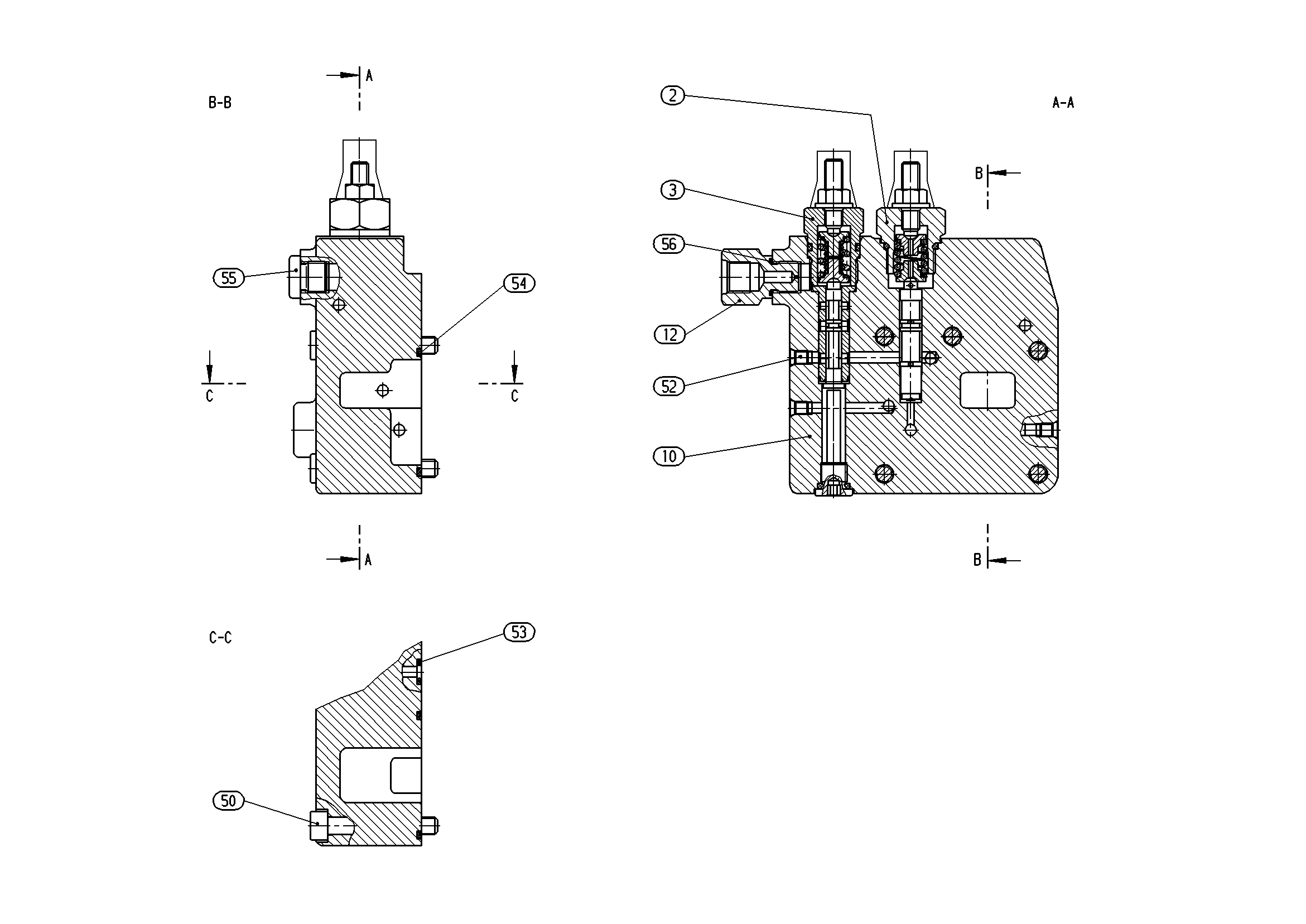

Assembly
REGULATORR902034789
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902081667 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902032579 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902106904 | CONTROL HOUSING | 1 | ||
| R902071631 | THREADED REDUCING STUD | 1 | ||
| R909083044 | SOCKET HEAD CAP SCREW | 5 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R902602890 | R-RINGD | 3 | ||
| R902600656 | O-RINGD | 1 | ||
| R909151979 | SCREW PLUG | 1 | ||
| R900012467 | SEAL RING | 1 | ||
| 98 | R902002479 | SEAL KIT | 1 |
