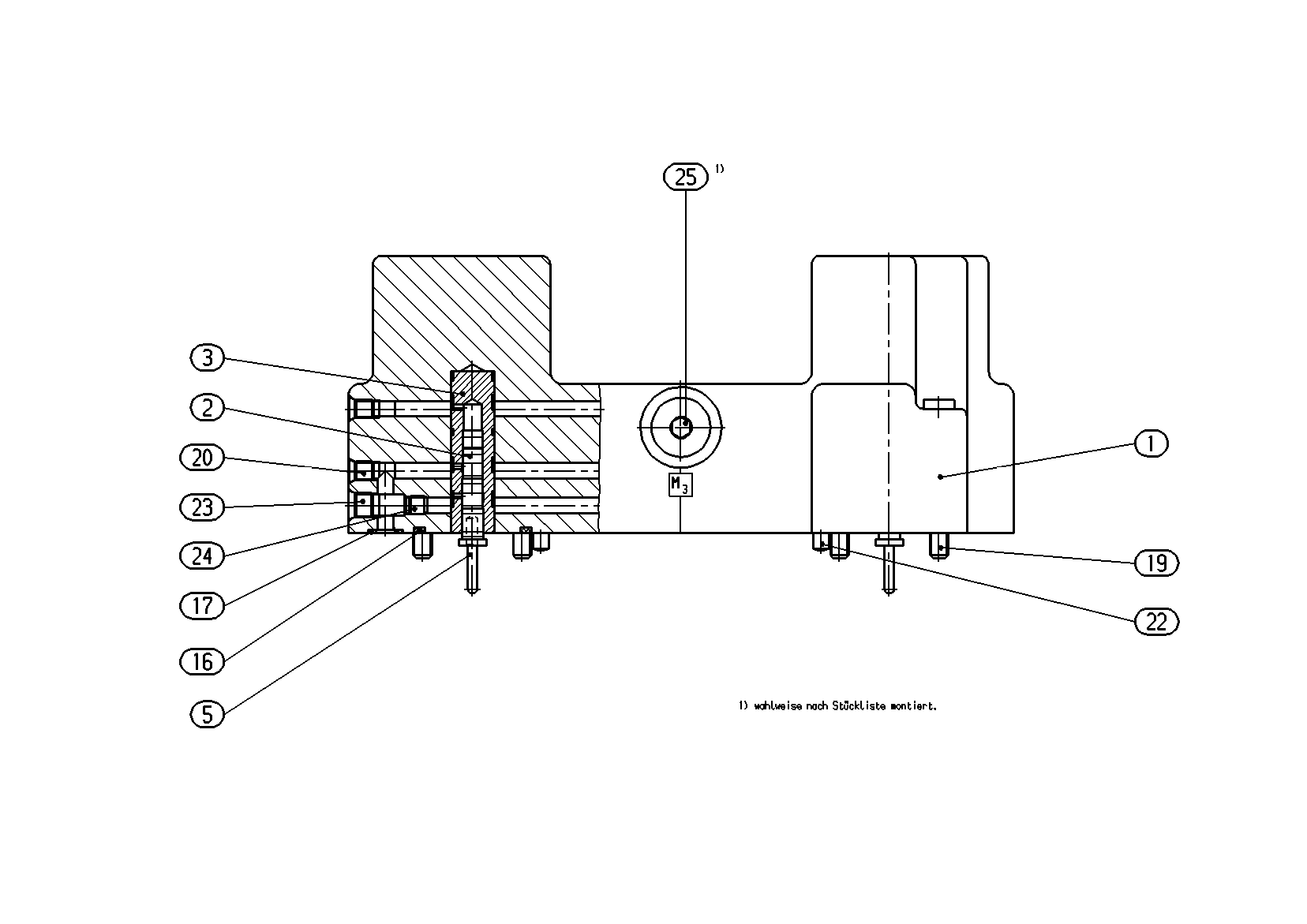

Assembly
CONTROL MODULER902035466
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902035430 | CONTROL HOUSING | 1 | |
| R902011897 | CONTROL PISTON | 2 | ||
| R902011898 | CONTROL SLEEVE | 2 | ||
| R902045222 | PIN | 2 | ||
| R909086730 | O-RINGD | 2 | ||
| 17 | R909086498 | O-RINGD | 2 | |
| R909083027 | SOCKET HEAD CAP SCREW | 6 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909084149 | STRAIGHT PIN | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902600705 | PLUG | 1 | ||
| R909151979 | SCREW PLUG | 1 |
