Assembly

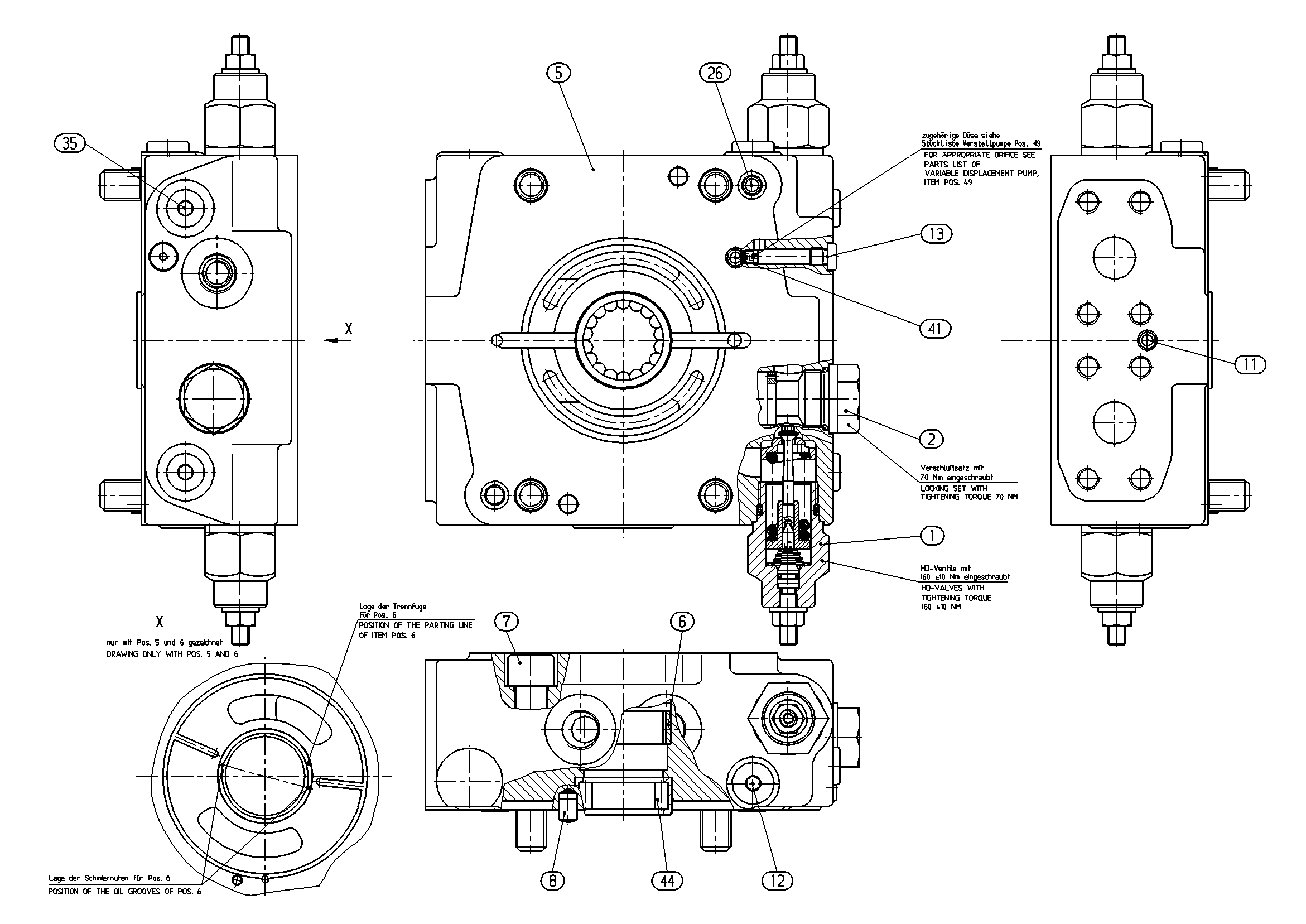

CONNECTION PLATER902035517
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902016388 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R909442606 | LOCKING SET | 1 | ||
| R902029651 | CONNECTION PLATE | 1 | ||
| R902260550 | BUSHING | 1 | ||
| R902600524 | SOCKET HEAD CAP SCREW | 4 | ||
| R913033778 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909151979 | SCREW PLUG | 1 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909085709 | O-RINGD | 2 | ||
| R909154478 | SCREW PLUGD | 2 | ||
| R909415314 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156249 | CYL. ROLLER BEARING | 1 | ||
| 98 | R902002446 | SEAL KIT | 1 |
