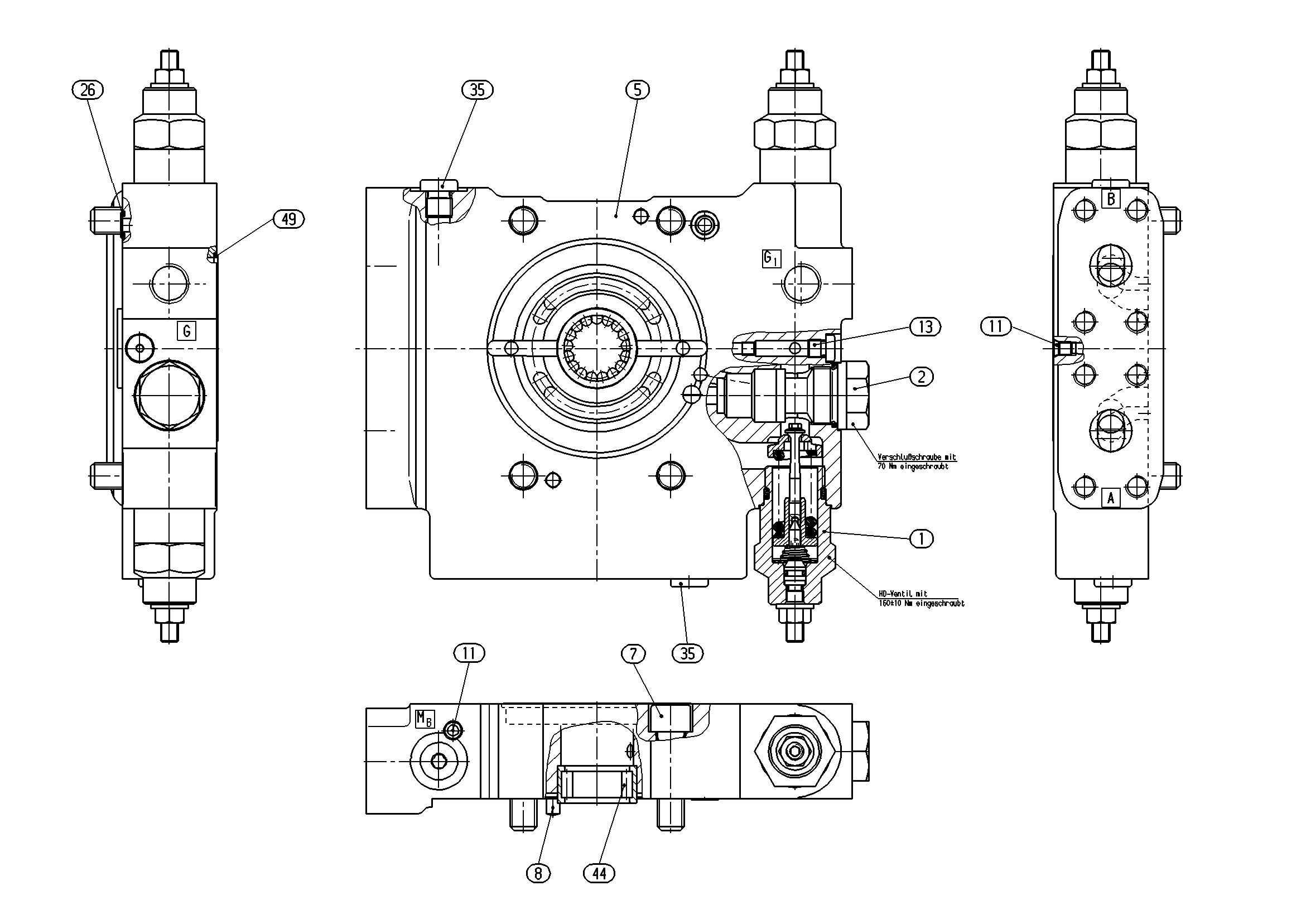

Assembly
CONNECTION PLATER902035555
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902016400 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R909438962 | LOCKING SET | 1 | ||
| R902049598 | CONNECTION PLATE | 1 | ||
| R909086611 | SOCKET HEAD CAP SCREW | 4 | ||
| R900748992 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909085709 | O-RINGD | 1 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909153245 | CYL. ROLLER BEARING | 1 | ||
| R913044774 | O-RINGD | 1 |
