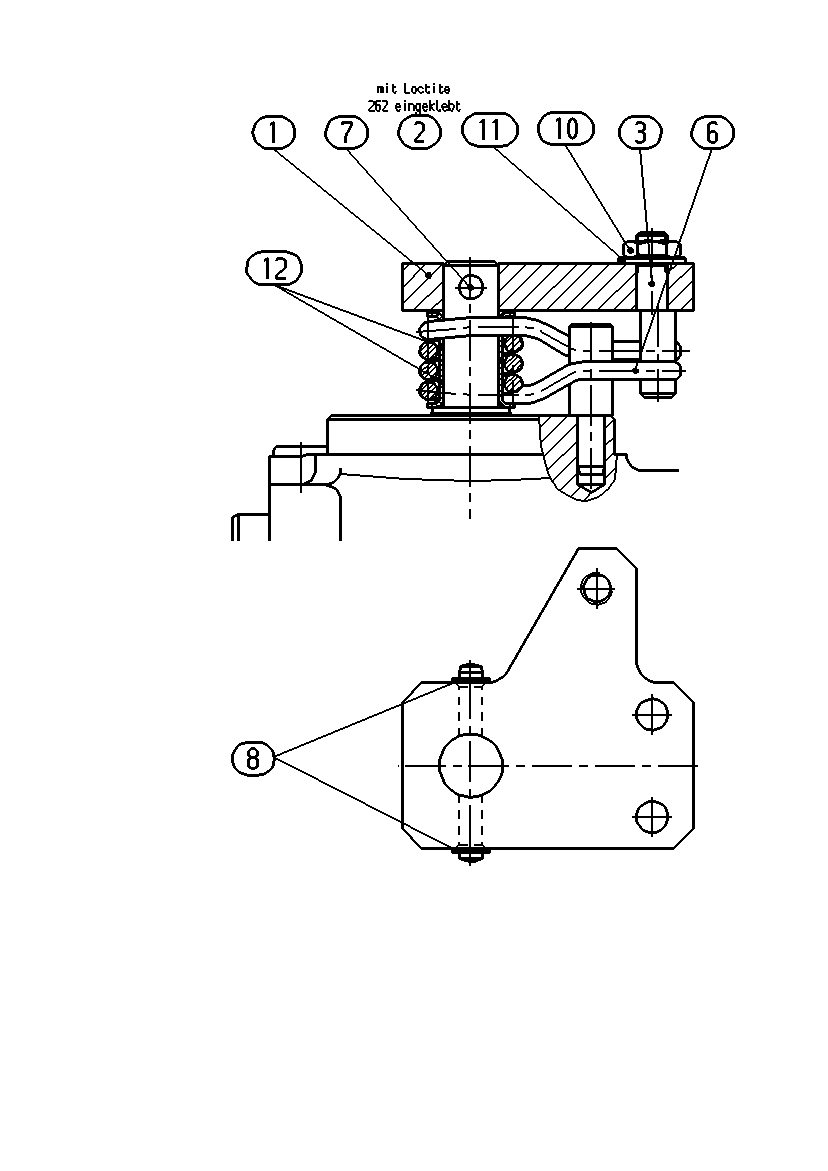

Assembly
CONTROLR902035880
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902035879 | ADJUSTING LEVER | 1 | |
| R902029692 | POITIONING PIN | 1 | ||
| R902035888 | ECCENTRIC PIN | 2 | ||
| R902043451 | ECCENTRIC PIN | 2 | ||
| R902029653 | COILED SPRING | 1 | ||
| R902035926 | DOWEL PIN | 1 | ||
| R909085810 | LOCKING WASHER | 1 | ||
| R909084507 | HEXAGON NUT | 2 | ||
| 11 | 2916010113 | WASHER | 2 | |
| R902601003 | HEADED BUSH | 2 |
