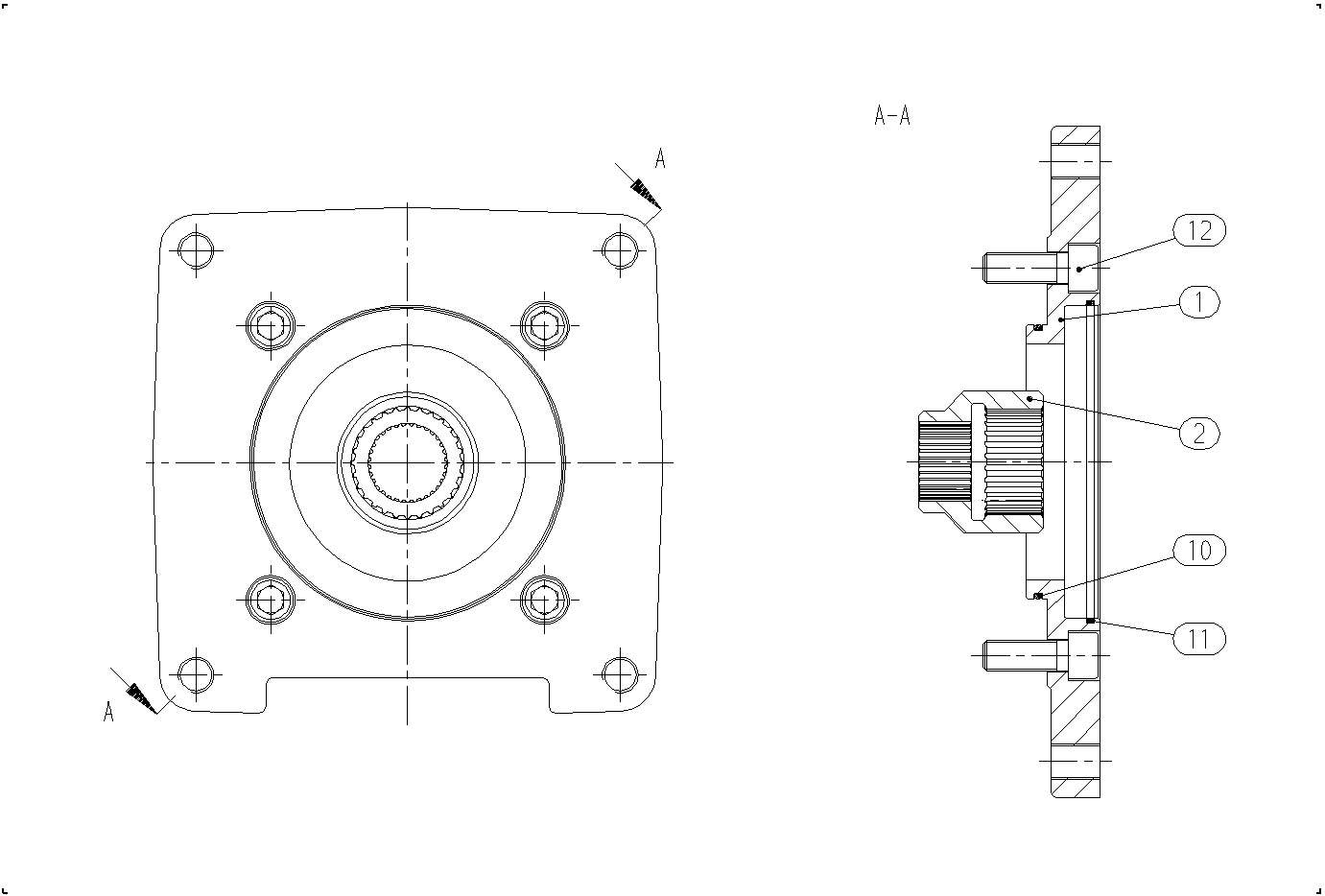

Assembly
BELL HOUSINGR902036049
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902070355 | FLANGE | 1 | |
| R909650590 | COUPLING HUB | 1 | ||
| R909157351 | O-RINGD | 1 | ||
| 11 | R909086482 | O-RINGD | 1 | |
| R909083131 | SOCKET HEAD CAP SCREW | 4 | ||
| 98 | R902095515 | SEAL KIT | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902070355 | FLANGE | 1 | |
| R909650590 | COUPLING HUB | 1 | ||
| R909157351 | O-RINGD | 1 | ||
| 11 | R909086482 | O-RINGD | 1 | |
| R909083131 | SOCKET HEAD CAP SCREW | 4 | ||
| 98 | R902095515 | SEAL KIT | 1 |
