Assembly

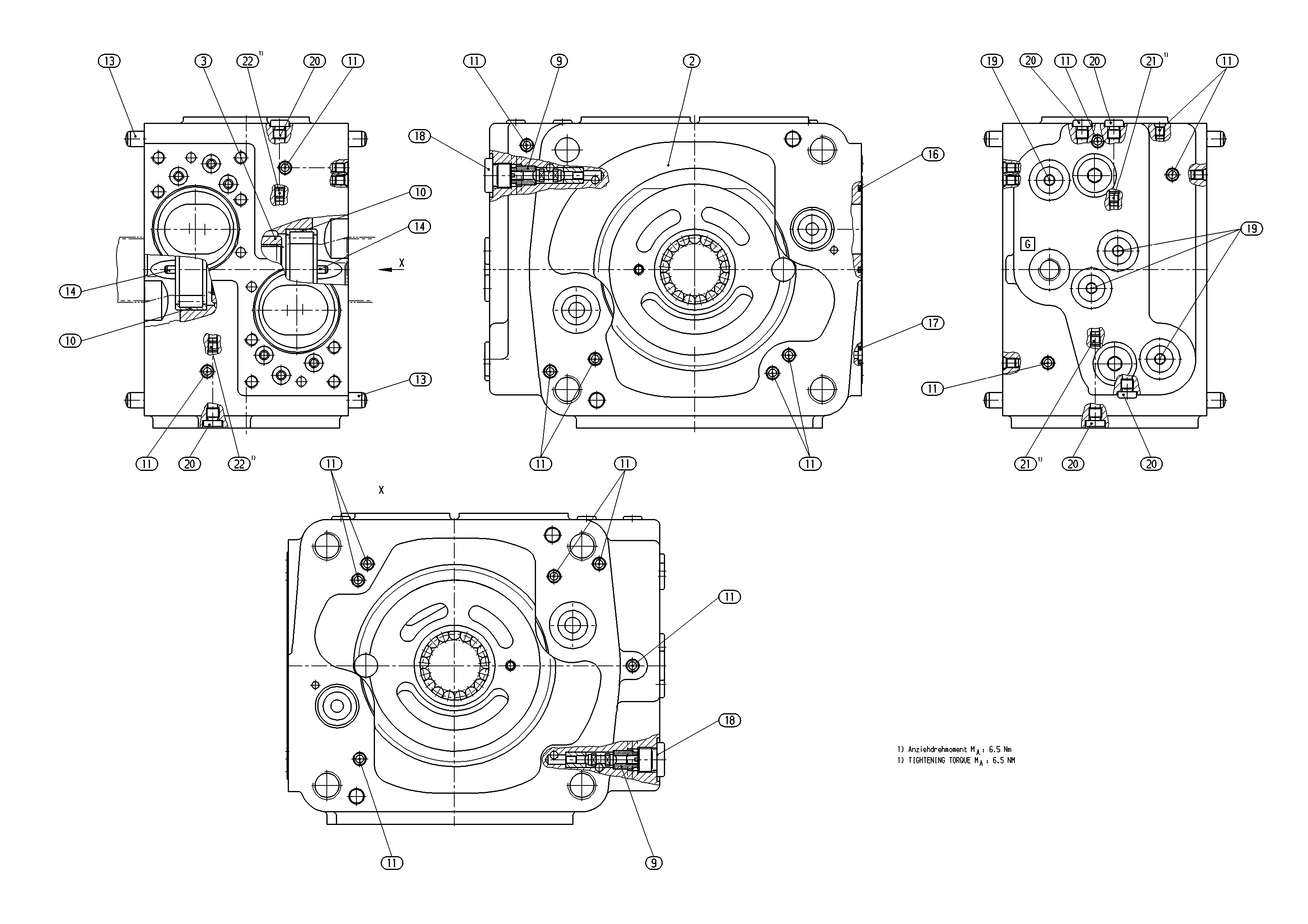

CONNECTION PLATER902036101
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902034823 | CONNECTION PLATE | 1 | ||
| R909921657 | COUPLING HUB | 1 | ||
| R902220060 | SHUTTLE VALVE Assembly parts list →L | 2 | ||
| R909156668 | CYL. ROLLER BEARING | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 10 | ||
| R913009671 | STRAIGHT PIN | 2 | ||
| R909087755 | STRAIGHT PIN | 2 | ||
| R909152464 | O-RINGD | 2 | ||
| R902602890 | R-RINGD | 6 | ||
| R909153816 | SCREW PLUGD | 2 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909154024 | SCREW PLUGD | 6 | ||
| R909156495 | NOZZLE | 2 | ||
| R909156494 | NOZZLE | 2 |
