Assembly

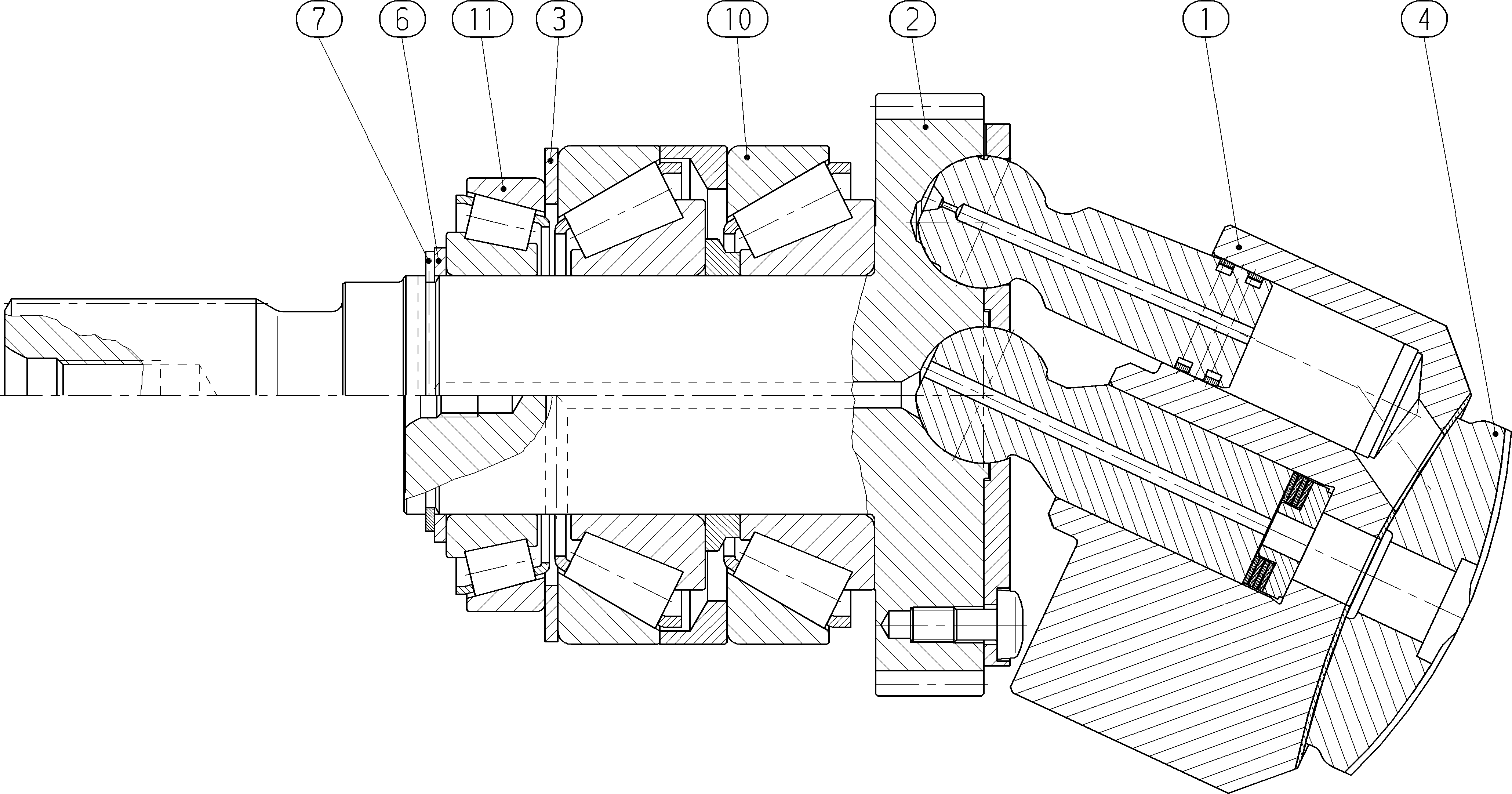

ROTARY GROUPR902036754
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902036770 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902036821 | DRIVE SHAFT | 1 | ||
| R909651581 | SHIM RING | 1 | ||
| R909651582 | SHIM RING | 1 | ||
| R909651583 | SHIM RING | 1 | ||
| R909651584 | SHIM RING | 1 | ||
| R909651585 | SHIM RING | 1 | ||
| R902065580 | CONTROL LENS, RIGHT-HAND ROTATION | 1 | ||
| R902027403 | SUPPORTING DISC Assembly parts list →L | 1 | ||
| R909083365 | RETAINING RING | 1 | ||
| R909154486 | TAPERED-ROLLER BEARING UNIT | 1 | ||
| R909151102 | TAPERED-ROLLER BEARING | 1 |
