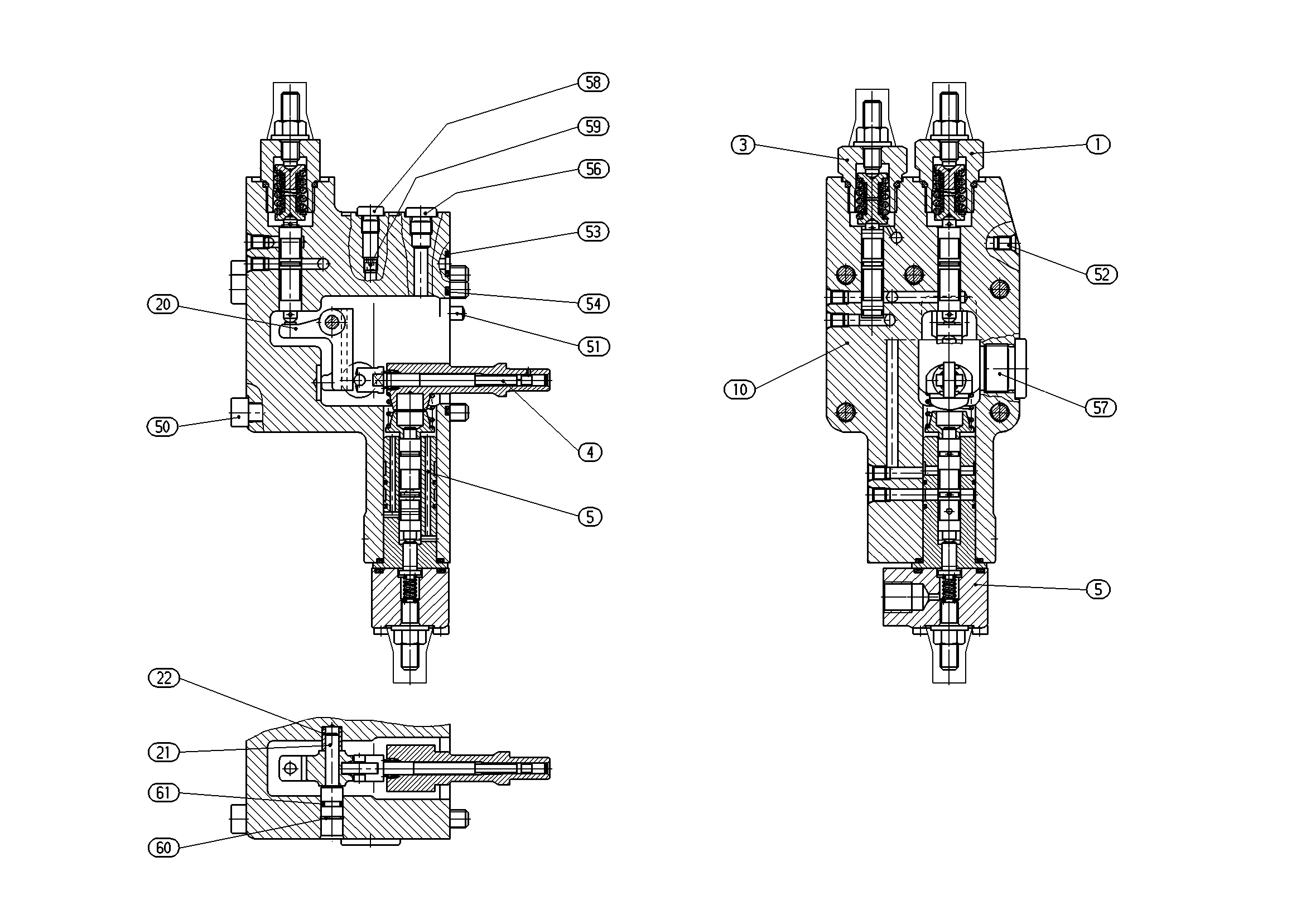

Assembly
REGULATORR902037604
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909442320 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902036189 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902080302 | MEASURING PISTON Assembly parts list →L | 1 | ||
| R902224970 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902131512 | CONTROL HOUSING | 1 | ||
| R909445555 | ANGLE LEVER | 1 | ||
| R909431281 | BEARING BOLT | 1 | ||
| R909431286 | BUSHING | 1 | ||
| R909083053 | SOCKET HEAD CAP SCREW | 5 | ||
| R913009676 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 8 | ||
| R909157512 | O-RINGD | 3 | ||
| R902600656 | O-RINGD | 1 | ||
| R909153364 | SCREW PLUG | 1 | ||
| R909154024 | SCREW PLUG | 1 | ||
| R909156493 | NOZZLE | 1 | ||
| R909087248 | RETAINING RING | 1 | ||
| R913045130 | O-RINGD | 1 | ||
| 98 | R902002478 | SEAL KITD | 1 |
