Assembly

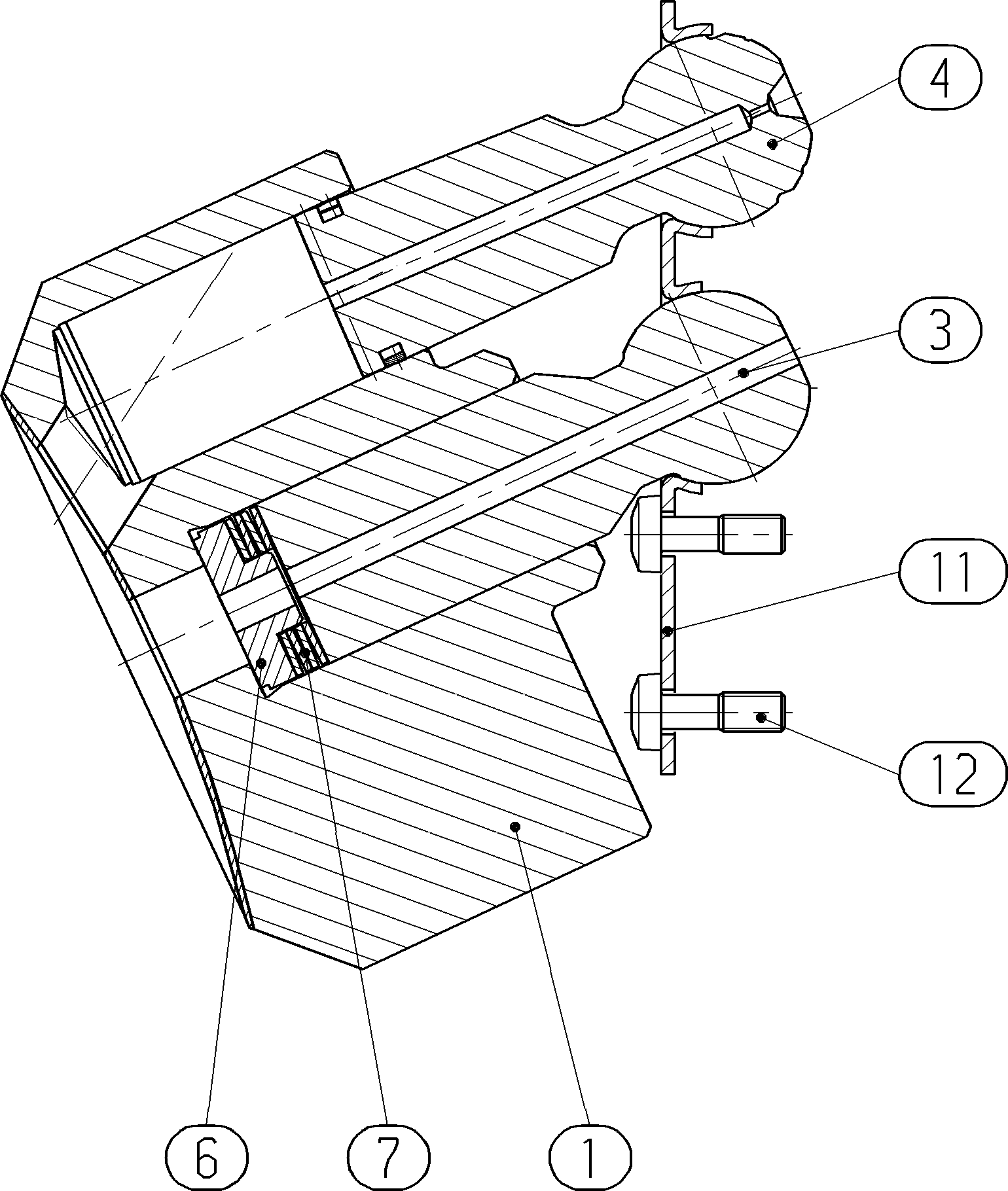

ROTARY GROUPR902038842
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902038760 | CYLINDER | 1 | |
| 2 | R902063765 | CONTROL LENS, RIGHT-HAND ROTATION | 1 | |
| R902038759 | CENTER PIN | 1 | ||
| R902047357 | PISTON | 7 | ||
| R902121531 | SPRING DISK Assembly parts list →L | 1 | ||
| R909408894 | DISC SPRING | 4 | ||
| 11 | R902072552 | RETAINING PLATE | 1 | |
| 12 | R902602493 | PAN-HEAD SCREW | 14 |
