Assembly

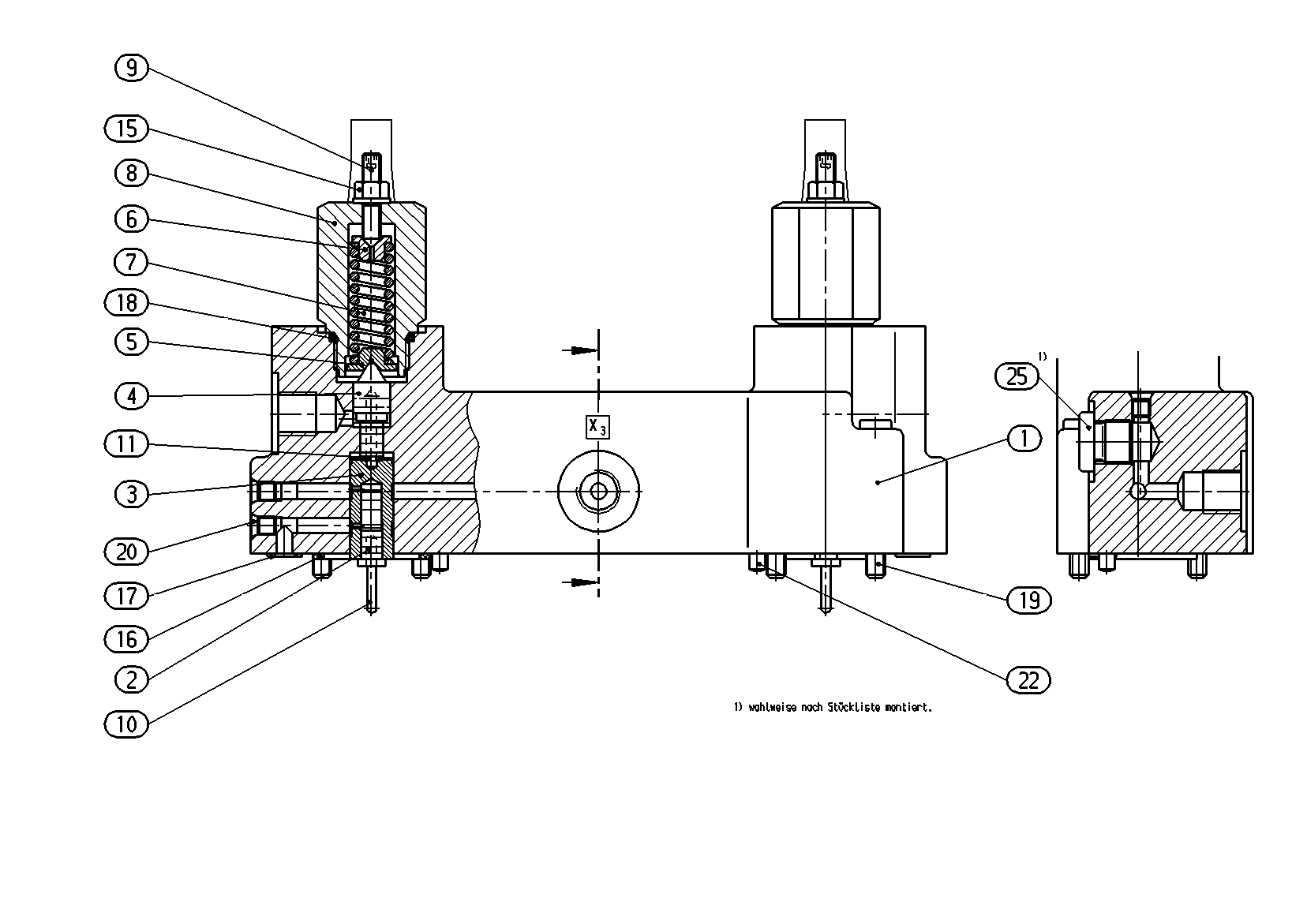

CONTROL MODULER902038988
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902038750 | CONTROL HOUSING | 1 | ||
| R909449879 | CONTROL PISTON | 2 | ||
| R909449880 | CONTROL SLEEVE | 2 | ||
| R909435558 | CONTROL PISTON | 2 | ||
| R909431526 | SPRING DISK | 2 | ||
| R909420414 | SPRING DISK | 2 | ||
| R909435520 | COMPRESSION SPRING | 2 | ||
| R909435522 | SCREW PLUG | 2 | ||
| R909420991 | SETSCREW | 2 | ||
| R909431195 | PIN | 2 | ||
| R909431195 | PIN | 2 | ||
| R909152425 | SEALING NUTD | 2 | ||
| R909086730 | O-RINGD | 2 | ||
| R902600655 | O-RINGD | 2 | ||
| R909086517 | O-RINGD | 2 | ||
| R909083027 | SOCKET HEAD CAP SCREW | 6 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R909084149 | STRAIGHT PIN | 2 | ||
| R909151979 | SCREW PLUG | 1 |
