Assembly

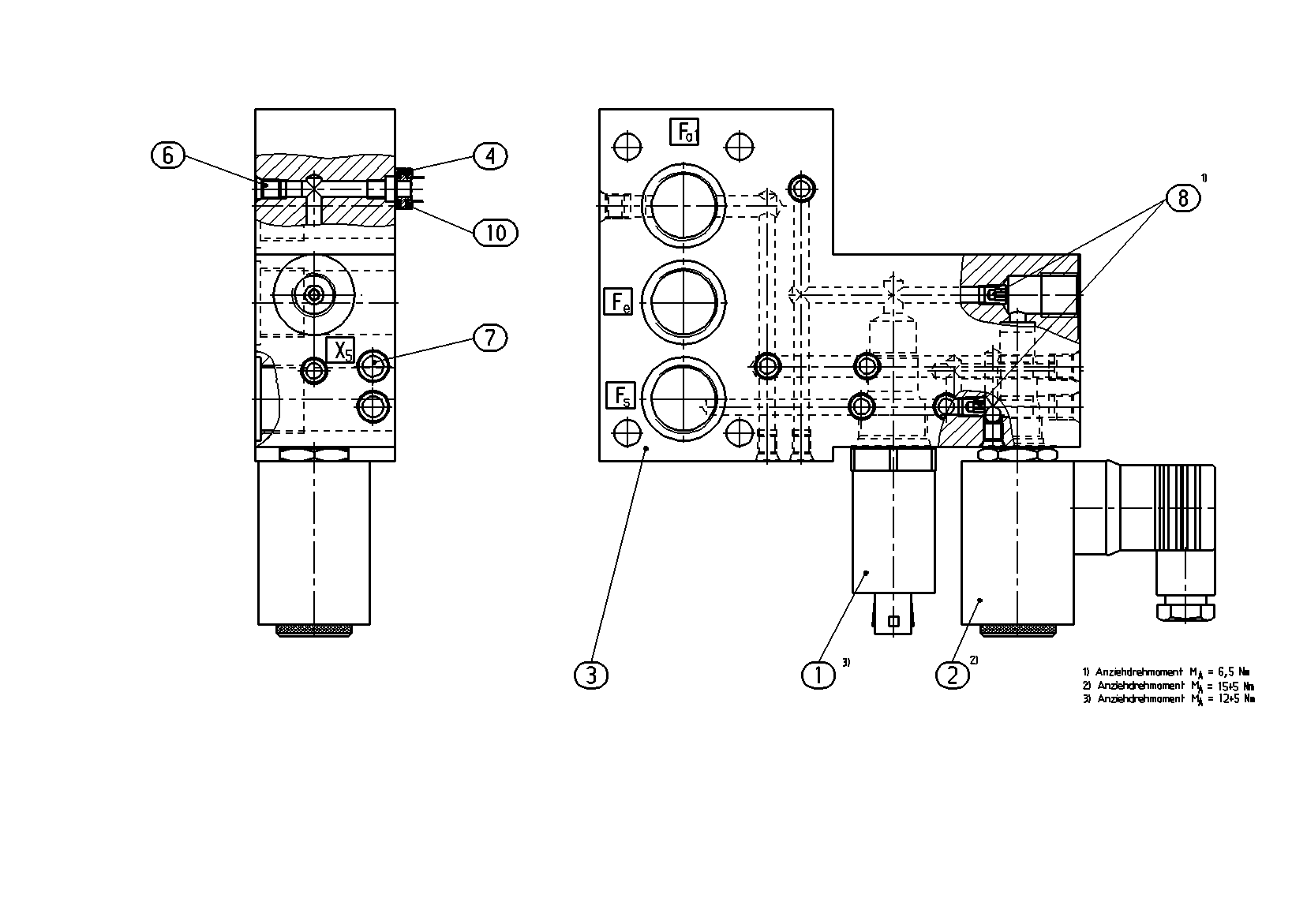

INTERMEDIATE PLATER902039060
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902600246 | PRESSURE REDUCING VALVE | 1 | ||
| R902601844 | SLIDE GATE VALVE Assembly parts list →L | 1 | ||
| R902025048 | HOUSING | 1 | ||
| R902025227 | WASHER | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 11 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R902600705 | PLUG | 2 | ||
| R902600655 | O-RING | 2 |
