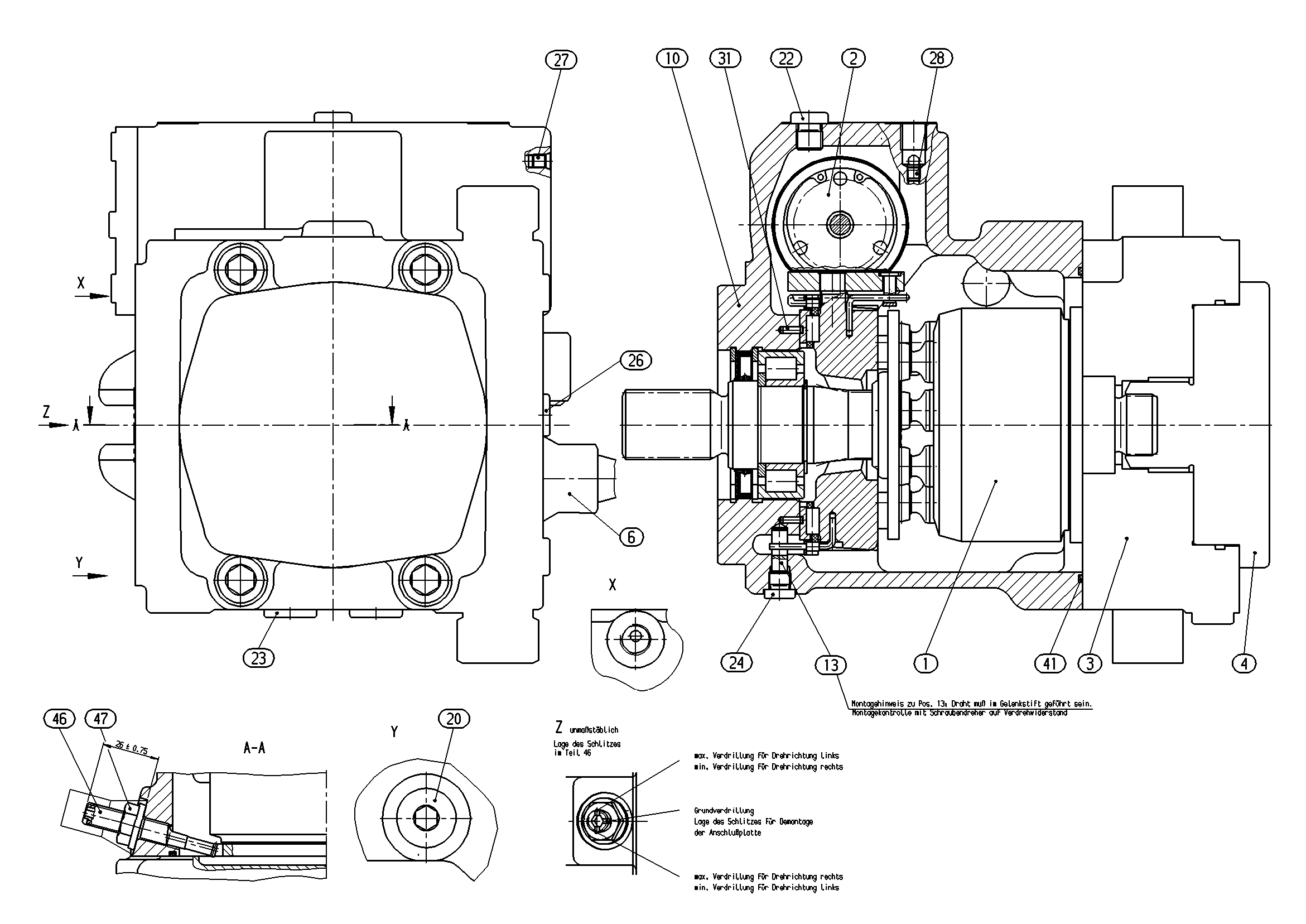

Assembly
AXIAL-PISTON PUMPR902039885
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902041763 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902136639 | CONTROL Assembly parts list →L | 1 | ||
| R902039932 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902039866 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909414719 | CONTROL CARTRIDGE Assembly parts list →L | 1 | ||
| R902029685 | HOUSING | 1 | ||
| R902132713 | PIVOT PIN | 1 | ||
| R910967343 | SCREW PLUGD | 1 | ||
| R910764647 | SCREW PLUGD | 1 | ||
| R910901969 | SCREW PLUGD | 2 | ||
| R909156649 | SCREW PLUGD | 1 | ||
| R909157039 | SCREW PLUGD | 1 | ||
| R909156497 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153330 | O-RINGD | 1 | ||
| R909435856 | ECCENTRIC SCREW | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| 98 | R902095623 | SEAL KIT | 1 |
