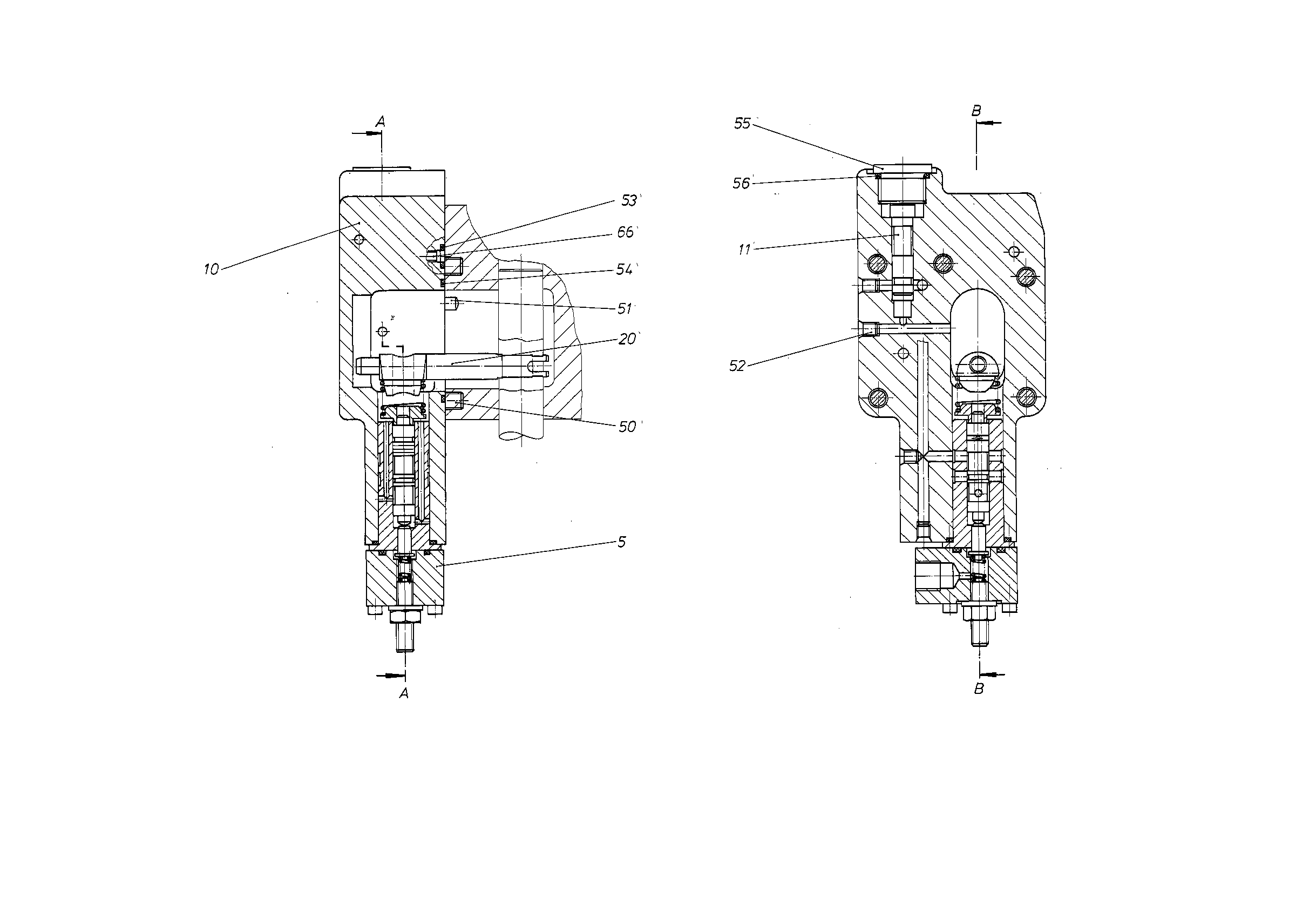

Assembly
REGULATORR902040546
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 5 | R902224971 | CONTROL ELEMENT Assembly parts list →L | 1 | |
| R902083496 | CONTROL HOUSING | 1 | ||
| 11 | R909431326 | LOCKING BOLT | 1 | |
| R909449599 | BOLT | 1 | ||
| R909083045 | SOCKET HEAD CAP SCREW | 5 | ||
| 51 | R913009676 | STRAIGHT PIN | 2 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 8 | ||
| R909157512 | O-RINGD | 3 | ||
| 54 | R902600656 | O-RINGD | 1 | |
| 55 | R909083225 | SCREW PLUG | 1 | |
| R909083758 | O-RINGD | 1 | ||
| 98 | R902002479 | SEAL KIT | 1 |
