Assembly

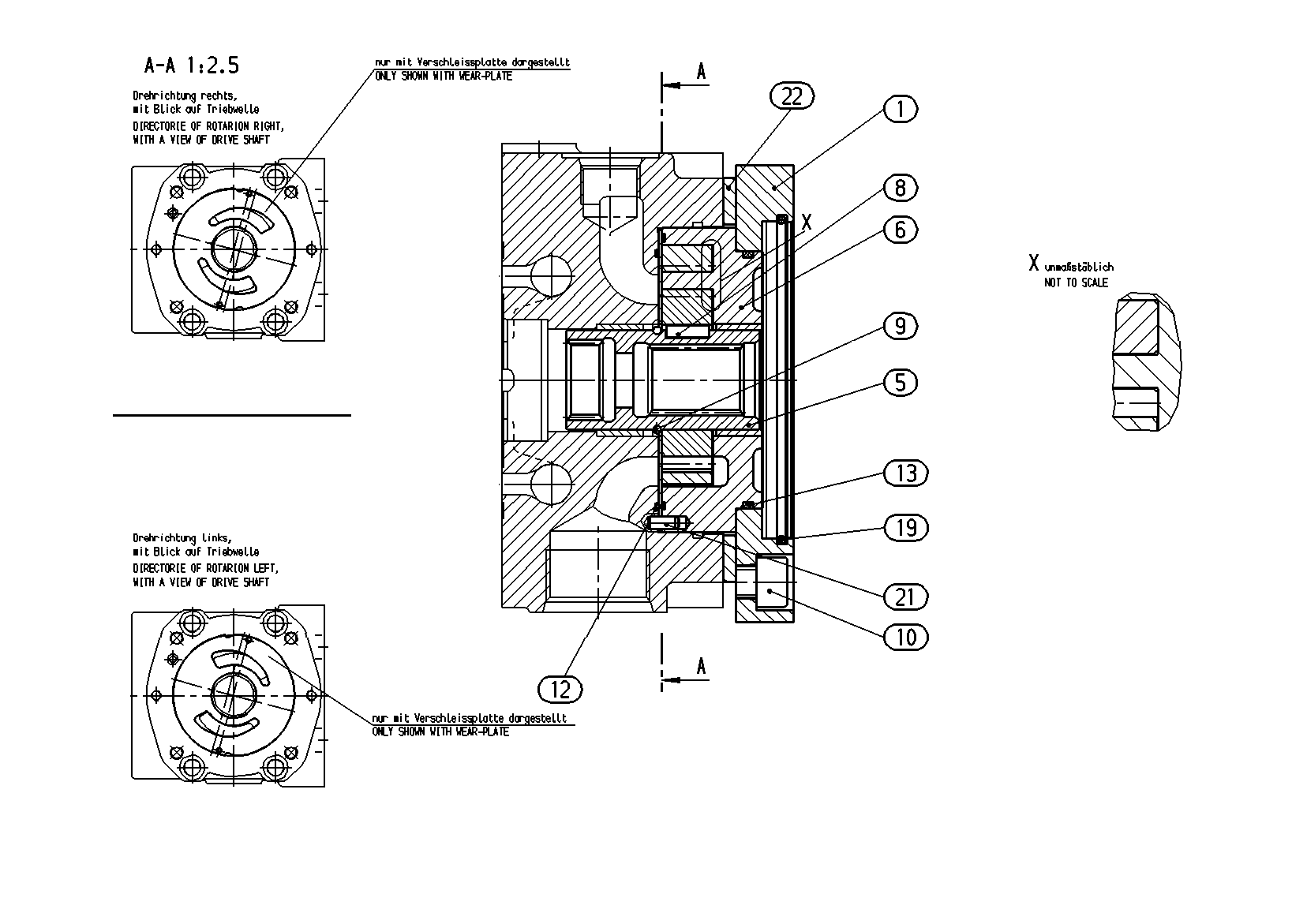

INTERNAL GEAR PUMPR902041426
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902000693 | INTERMEDIATE FLANGE | 1 | ||
| R902036208 | THROUGH DRIVE SHAFT | 1 | ||
| R902118833 | HOUSING Assembly parts list →L | 1 | ||
| R902025649 | PARALLEL KEY | 1 | ||
| R913057533 | SNAP RING | 1 | ||
| R909083060 | SOCKET HEAD CAP SCREW | 4 | ||
| R913037188 | KANTSEALD | 1 | ||
| R909084504 | O-RINGD | 1 | ||
| R913032365 | O-RING | 1 | ||
| R913009663 | STRAIGHT PIN | 1 | ||
| R902015656 | SHIM RING | 1 |
