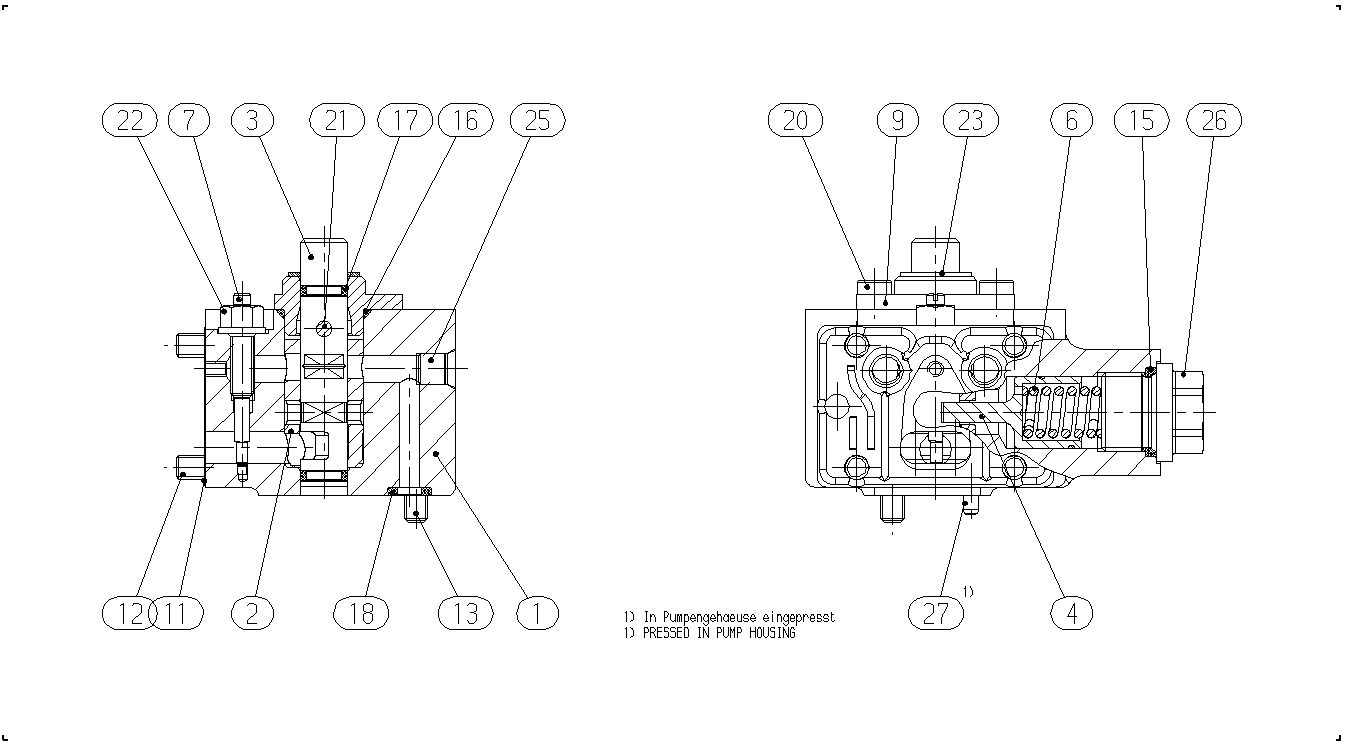

Assembly
BASIC UNITR902041608
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902012990 | HOUSING | 1 | ||
| 2 | R902013983 | CONTROL SLEEVE | 1 | |
| R902076620 | CONTROL SHAFT | 1 | ||
| R909650254 | SPRING BUSH | 1 | ||
| R909421991 | COMPRESSION SPRING | 1 | ||
| R902010473 | ECCENTRIC PIN | 1 | ||
| 9 | R909650255 | COVER | 1 | |
| 11 | R902603829 | SEALD | 1 | |
| 12 | R909085831 | SOCKET HEAD CAP SCREW | 4 | |
| 13 | R909084385 | SOCKET HEAD CAP SCREW | 1 | |
| R909083757 | O-RINGD | 1 | ||
| R909086432 | O-RING | 1 | ||
| 17 | R909083728 | O-RING | 2 | |
| R909157512 | O-RINGD | 1 | ||
| R909083183 | SOCKET HEAD CAP SCREW | 2 | ||
| R909156217 | NEEDLE-ROLLER | 1 | ||
| 22 | R909152425 | SEALING NUT | 1 | |
| R909086180 | SHIM RING | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909086753 | SCREW PLUG | 1 | ||
| R913009663 | STRAIGHT PIN | 1 |
