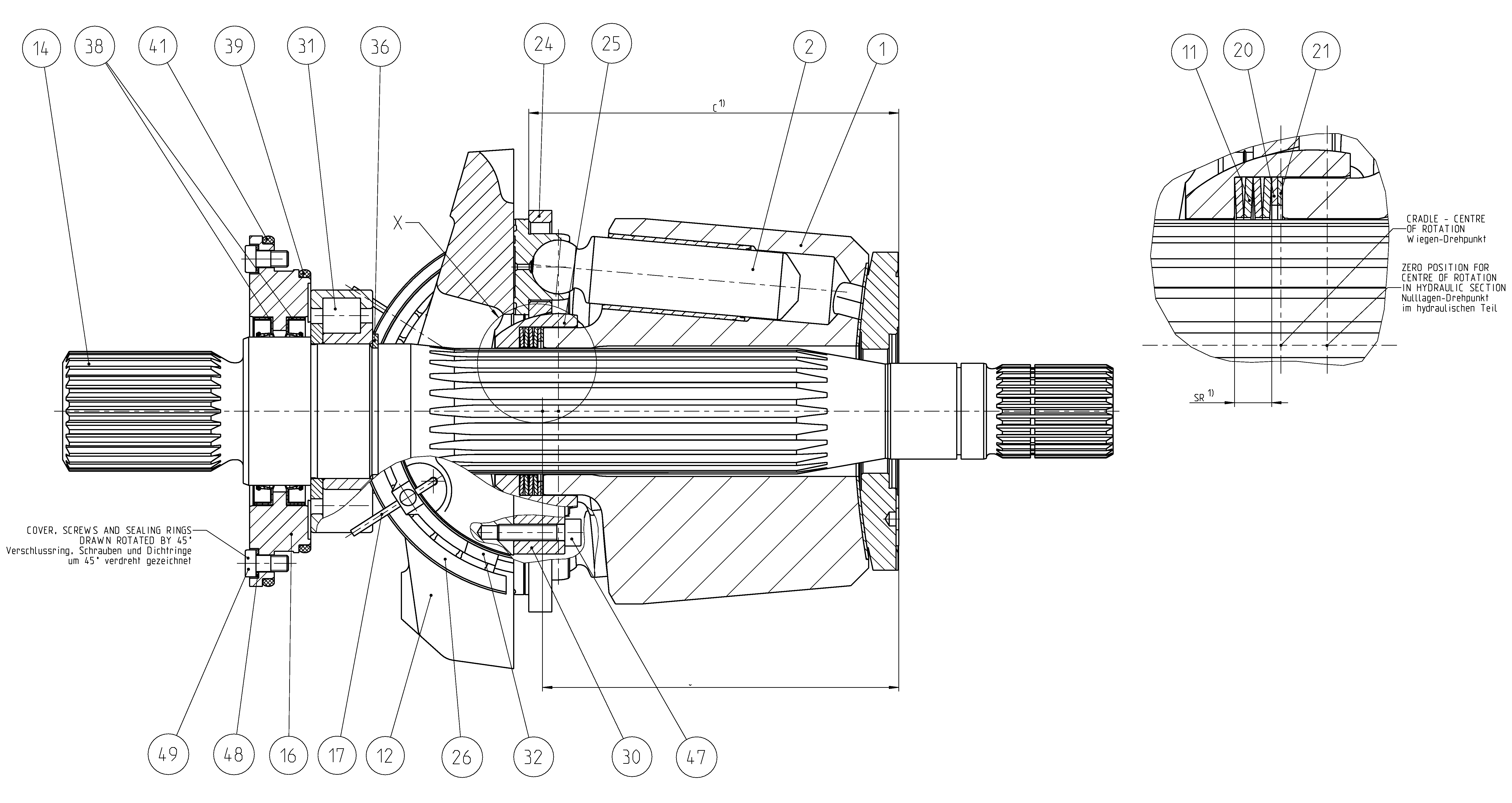

Assembly
ROTARY GROUPR902041956
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902041936 | CYLINDER Assembly parts list →L | 1 | ||
| R909078189 | PISTON PAD | 9 | ||
| R909074128 | CUP-SPRING STACK | 1 | ||
| R902213209 | CRADLE | 1 | ||
| R902021483 | DRIVE SHAFT | 1 | ||
| R902021484 | LOCKING RINGD | 1 | ||
| R909417959 | WIRE | 4 | ||
| R909078319 | SHIM RING | 1 | ||
| R909412706 | SHIM RING | 1 | ||
| R909412707 | SHIM RING | 1 | ||
| R909413043 | SHIM RING | 1 | ||
| R909412706 | SHIM RING | 1 | ||
| R902210083 | RETAINING PLATE | 1 | ||
| R902041873 | RETAINING BALL | 1 | ||
| R902066599 | BEARING SHELL PAIR | 1 | ||
| R909431891 | RETAINING SEGMENT | 2 | ||
| R902603914 | CYL. ROLLER BEARING | 1 | ||
| R913010011 | CAGE PAIR | 1 | ||
| R909084416 | RETAINING RING | 1 | ||
| R913043034 | ROTARY SHAFT LIP SEALD | 2 | ||
| R909154986 | O-RINGD | 1 | ||
| R909154937 | O-RINGD | 1 | ||
| R909831330 | SOCKET HEAD CAP SCREW | 4 | ||
| R909152271 | SEAL RING | 4 | ||
| R909083186 | SOCKET HEAD CAP SCREW | 4 |
