Assembly

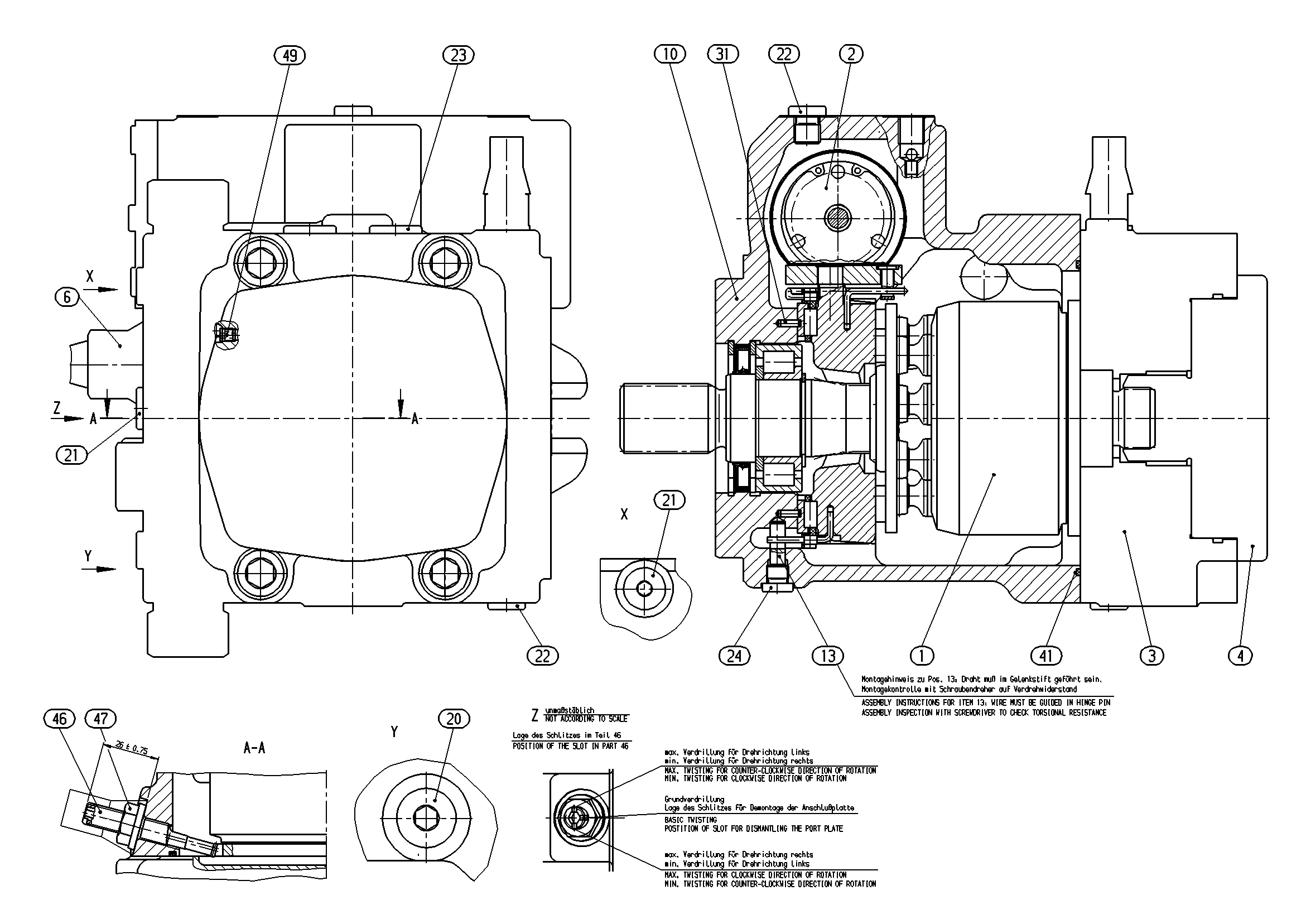

AXIAL-PISTON PUMPR902043434
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902036399 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902136640 | CONTROL Assembly parts list →L | 1 | ||
| R902025936 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902025765 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909414719 | CONTROL CARTRIDGE Assembly parts list →L | 1 | ||
| R902029684 | HOUSING | 1 | ||
| R902132713 | PIVOT PIN | 1 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 2 | ||
| R909154478 | SCREW PLUGD | 2 | ||
| R909153338 | SCREW PLUGD | 2 | ||
| R909156649 | SCREW PLUGD | 1 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153330 | O-RINGD | 1 | ||
| R909435856 | ECCENTRIC SCREW | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| R909156497 | NOZZLE | 1 | ||
| 98 | R902095623 | SEAL KIT | 1 |
