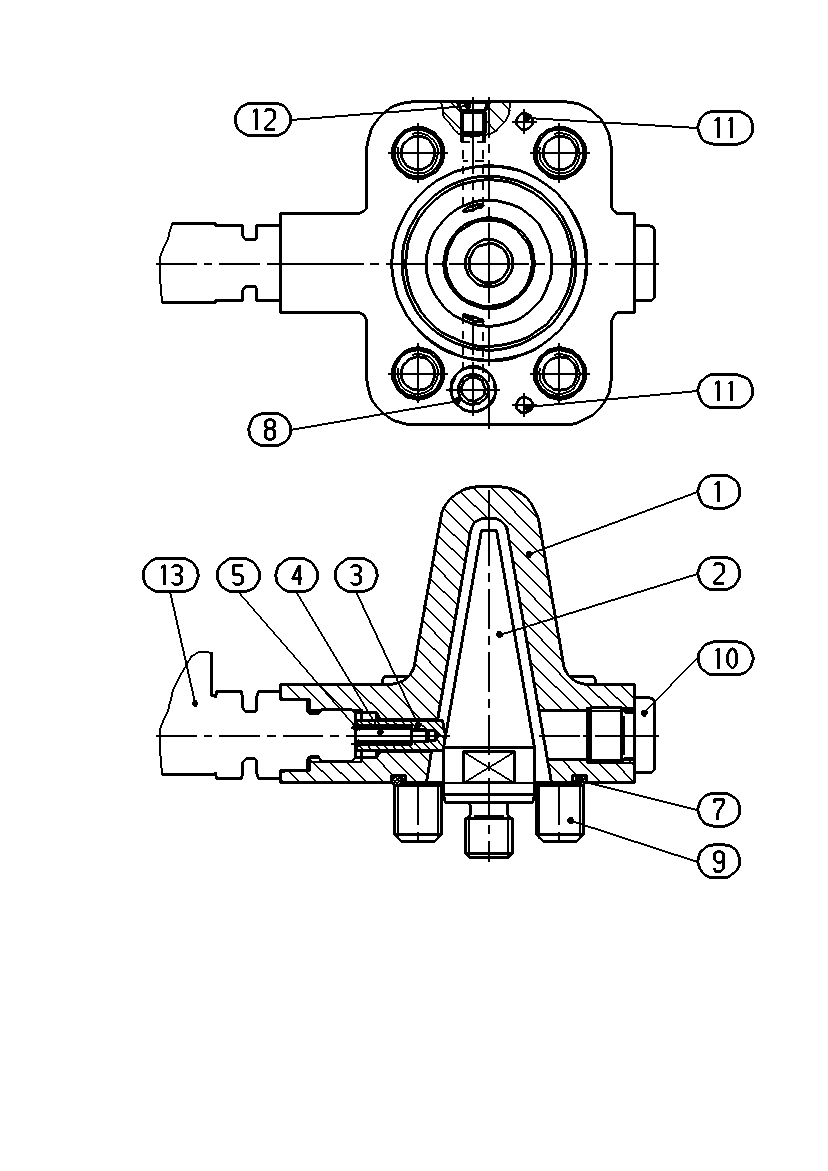

Assembly
COVERR902043664
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902043637 | COVER | 1 | ||
| 3 | R902011938 | KEY PIN | 1 | |
| R909425189 | GUIDE PIN Assembly parts list →L | 1 | ||
| R909415283 | COMPRESSION SPRING | 1 | ||
| R909084890 | O-RINGD | 1 | ||
| R909085709 | O-RINGD | 1 | ||
| R909083087 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| 13 | R909156744 | DISPLACEMENT SENS | 1 |
