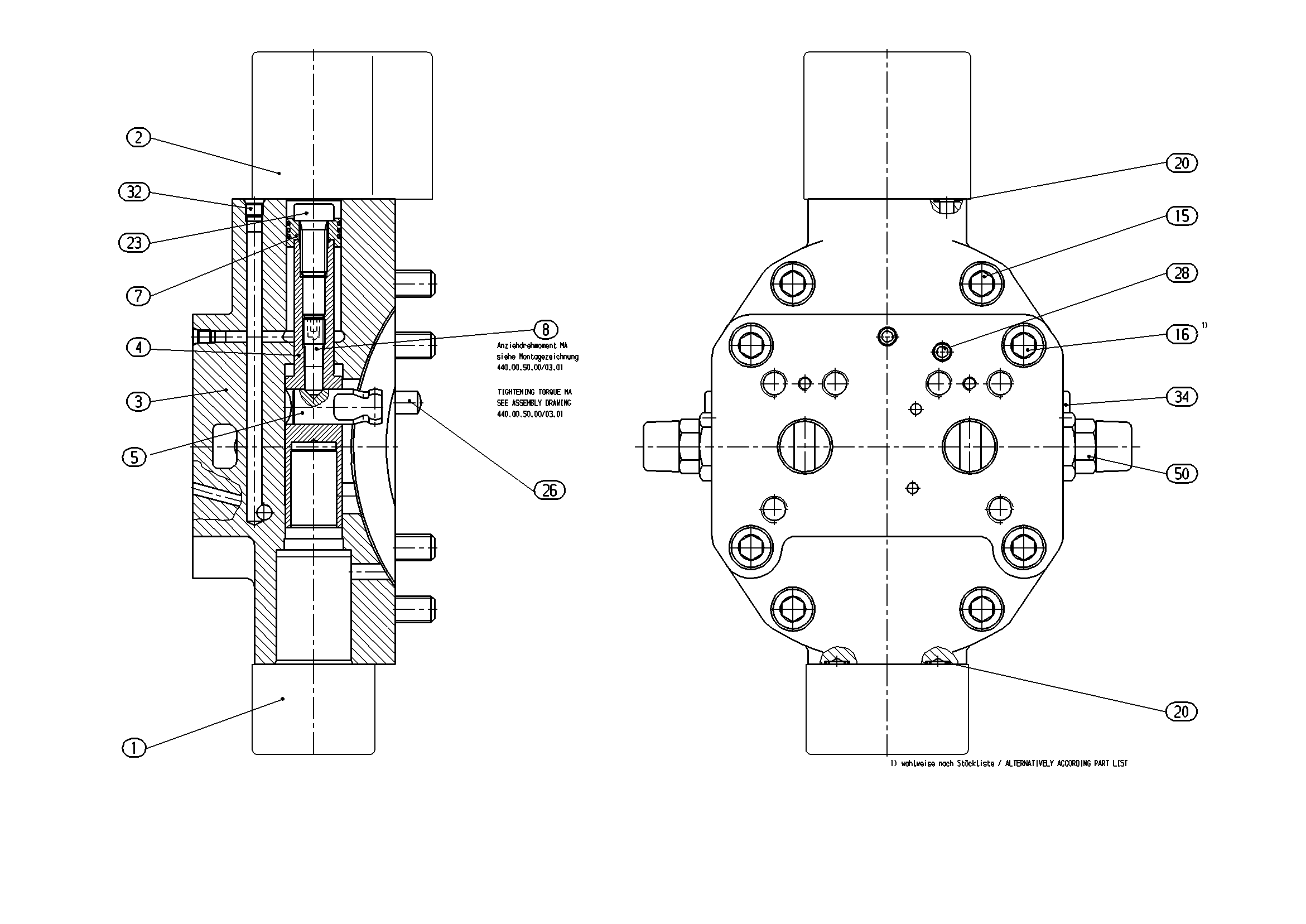

Assembly
CONTROLR902043970
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909604154 | CONTROL PART Assembly parts list →L | 1 | ||
| R902043971 | STROKE LIMITER Assembly parts list →L | 1 | ||
| R902043981 | COVER PLATE | 1 | ||
| R902101487 | POSITIONING PISTON | 1 | ||
| R909422949 | POSITIONING STUD | 1 | ||
| R902102901 | PISTON | 1 | ||
| R902101485 | SETSCREW | 1 | ||
| R909083097 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083104 | SOCKET HEAD CAP SCREW | 4 | ||
| R909085577 | O-RINGD | 8 | ||
| R909083204 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156651 | SCREW PLUGD | 2 | ||
| R902603805 | DELIVERY-VALVE ASSEMBLY Assembly parts list →L | 2 |
