Assembly

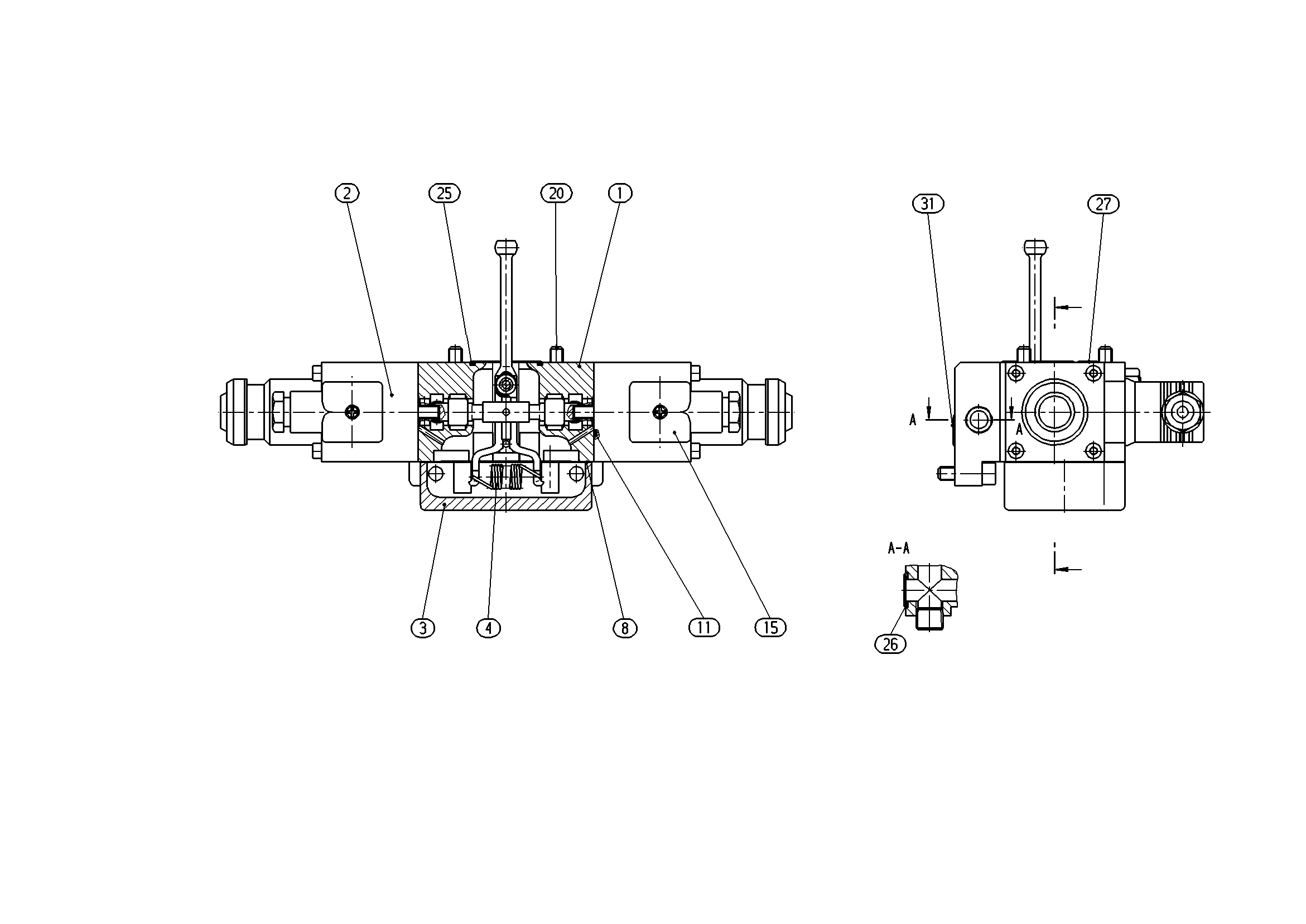

CONTROL MODULER902044105
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902044106 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909428350 | PROPORTIONAL SOLENOID Assembly parts list →L | 2 | ||
| R909443201 | COVER | 1 | ||
| 4 | R909445713 | EXTENSION SPRING | 1 | |
| R909651478 | SEAL | 1 | ||
| 11 | R909083737 | O-RING | 2 | |
| 14 | R913022796 | PLUG-IN CONNECTOR | 1 | |
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| 20 | R909085831 | SOCKET HEAD CAP SCREW | 4 | |
| R902600641 | O-RING | 1 | ||
| R909083731 | O-RING | 4 | ||
| R909083724 | O-RING | 1 | ||
| R909083733 | O-RING | 1 | ||
| 98 | R902002418 | SEAL KIT | 1 |
