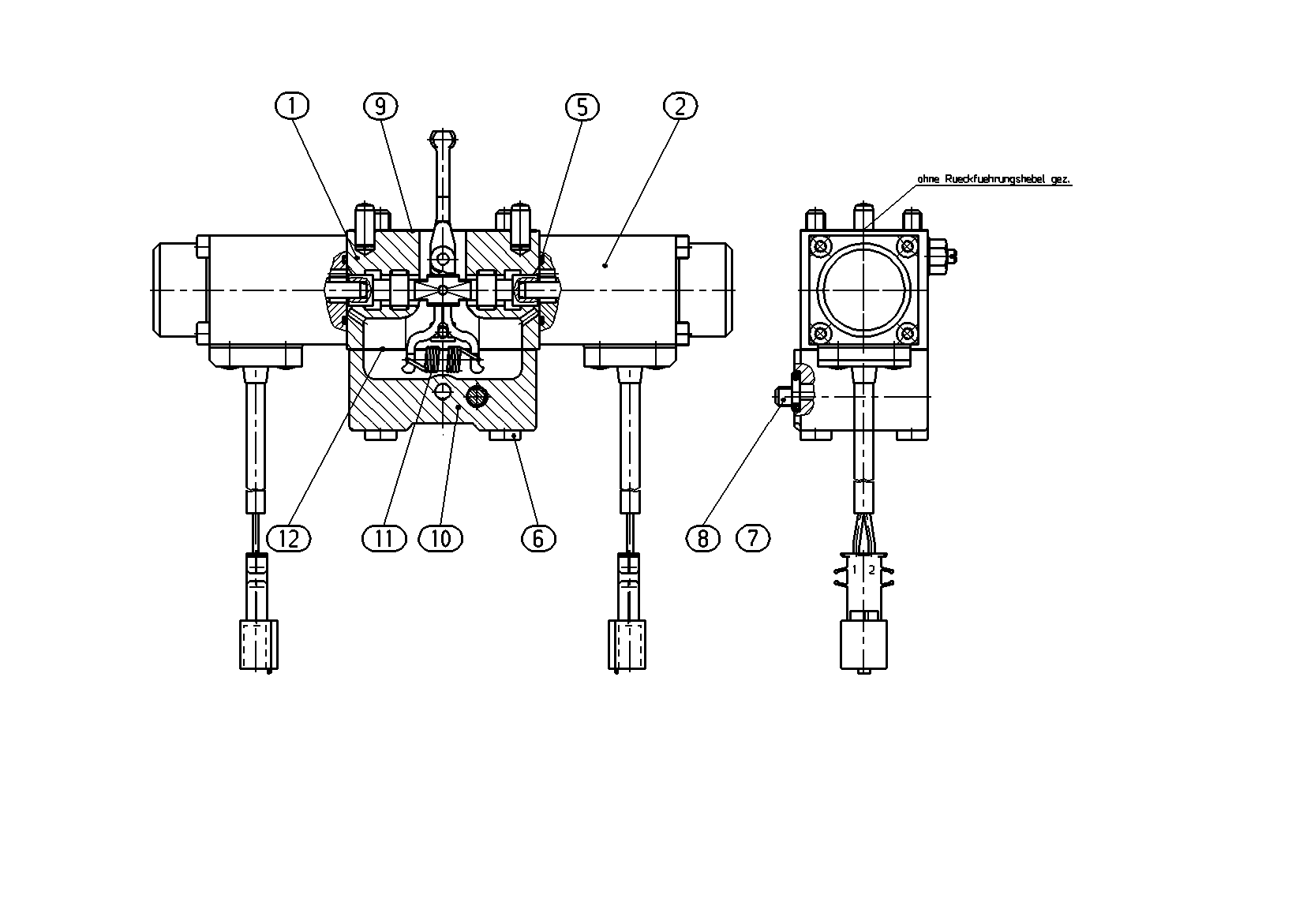

Assembly
CONTROL MODULER902046036
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902046035 | CONTROL MODULE Assembly parts list →L | 1 | |
| R902030179 | PROPORTIONAL SOLENOID Assembly parts list →L | 2 | ||
| R909083737 | O-RINGD | 2 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| R902600655 | O-RINGD | 1 | ||
| R909083027 | SOCKET HEAD CAP SCREW | 1 | ||
| 9 | R902603829 | SEALD | 1 | |
| R902046034 | CONNECTION COVER | 1 | ||
| 11 | R902001144 | EXTENSION SPRING | 1 | |
| R902603830 | SEALD | 1 |
