Assembly

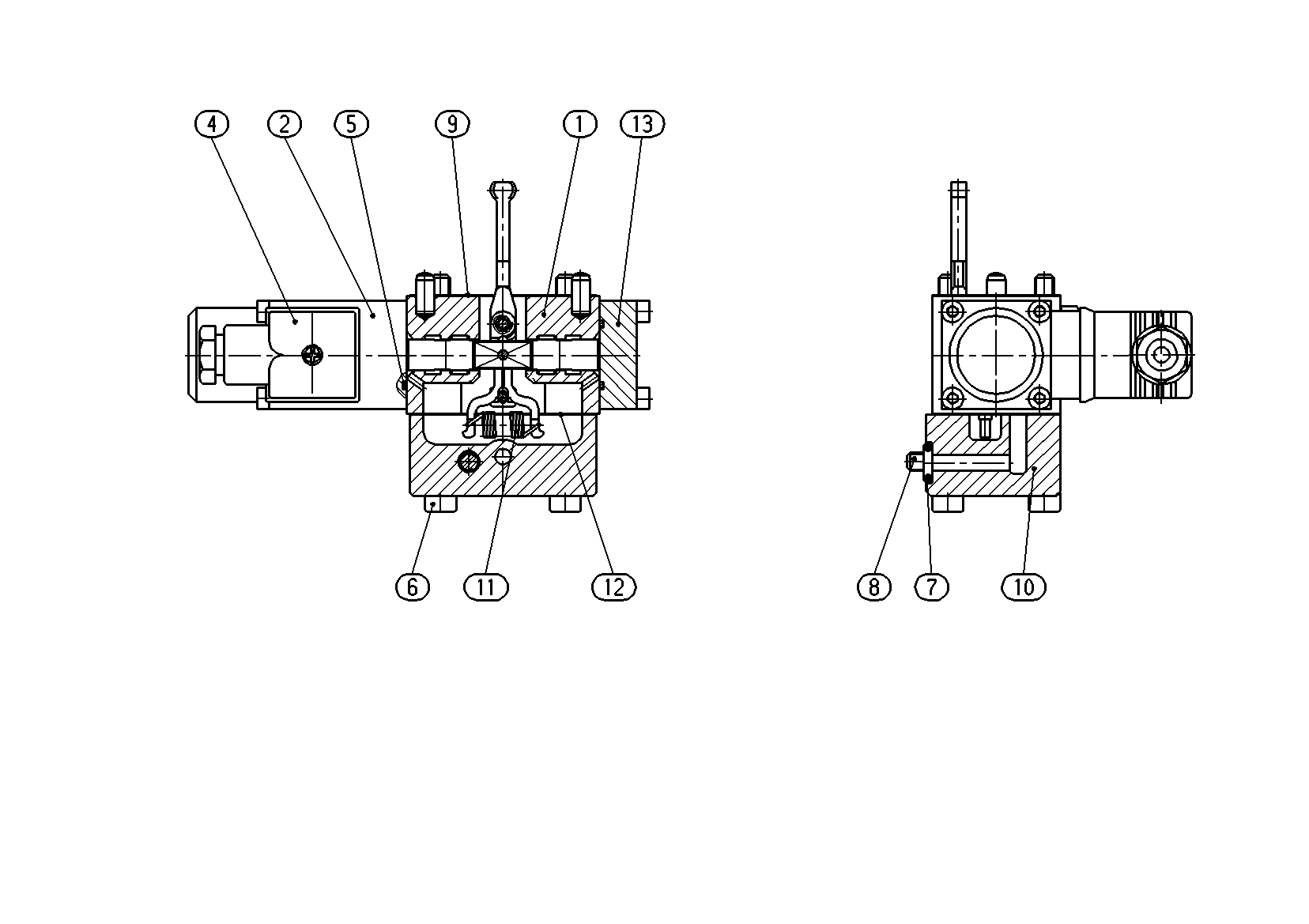

CONTROL MODULER902046919
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902018753 | BASIC UNIT Assembly parts list →L | 1 | ||
| R909441692 | PROPORTIONAL SOLENOID Assembly parts list →L | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| 5 | R909083737 | O-RINGD | 2 | |
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| 7 | R902600655 | O-RINGD | 1 | |
| R909083027 | SOCKET HEAD CAP SCREW | 1 | ||
| 9 | R902603829 | SEALD | 1 | |
| R902046034 | CONNECTION COVER | 1 | ||
| 11 | R902028103 | EXTENSION SPRING | 1 | |
| 12 | R902603830 | SEALD | 1 | |
| R909428780 | COVER Assembly parts list →L | 1 | ||
| 98 | R902002395 | SEAL KIT | 1 |
