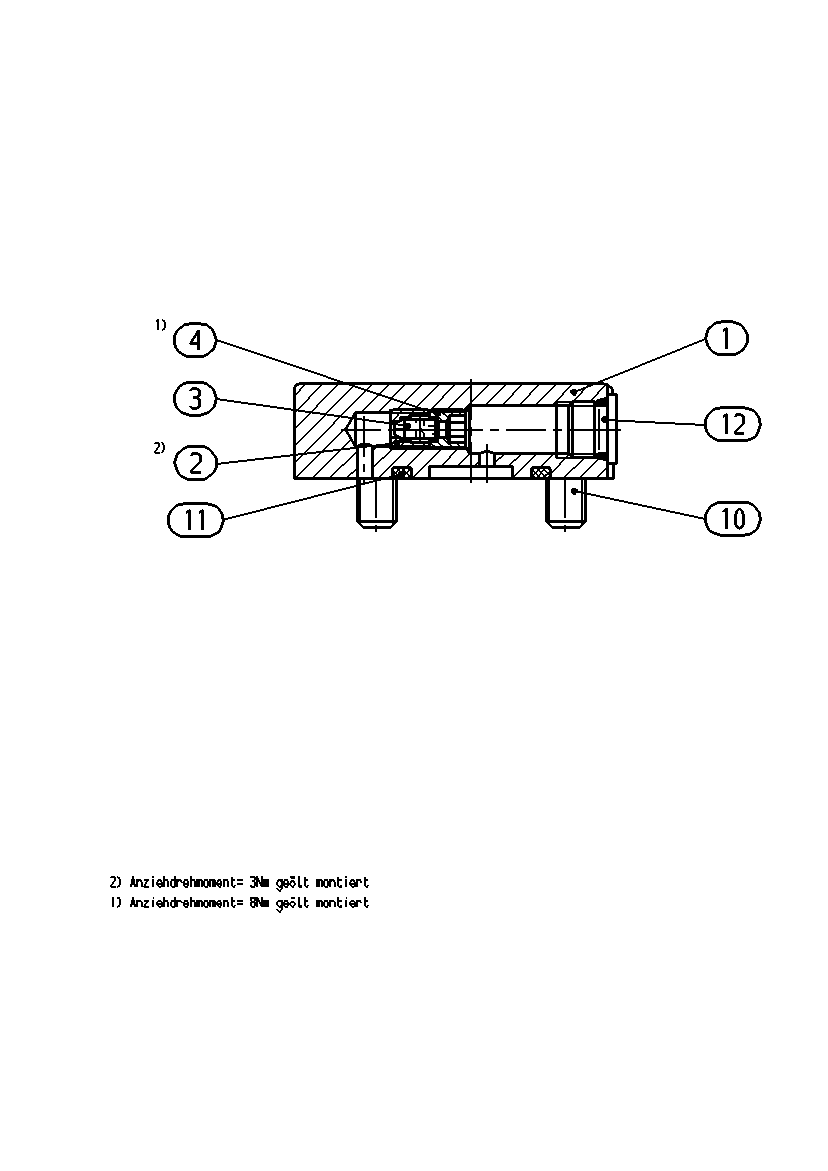

Assembly
COVERR902047496
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909921561 | COVER | 1 | |
| R909400263 | THROTTLE SCREW | 1 | ||
| R909425867 | THROTTLE PIN | 1 | ||
| R909400264 | THROTTLE SCREW | 1 | ||
| R909157771 | SOCKET HEAD CAP SCREW | 4 | ||
| 11 | R909085578 | O-RINGD | 1 | |
| R913044793 | SCREW PLUGD | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909921561 | COVER | 1 | |
| R909400263 | THROTTLE SCREW | 1 | ||
| R909425867 | THROTTLE PIN | 1 | ||
| R909400264 | THROTTLE SCREW | 1 | ||
| R909157771 | SOCKET HEAD CAP SCREW | 4 | ||
| 11 | R909085578 | O-RINGD | 1 | |
| R913044793 | SCREW PLUGD | 1 |
