Assembly

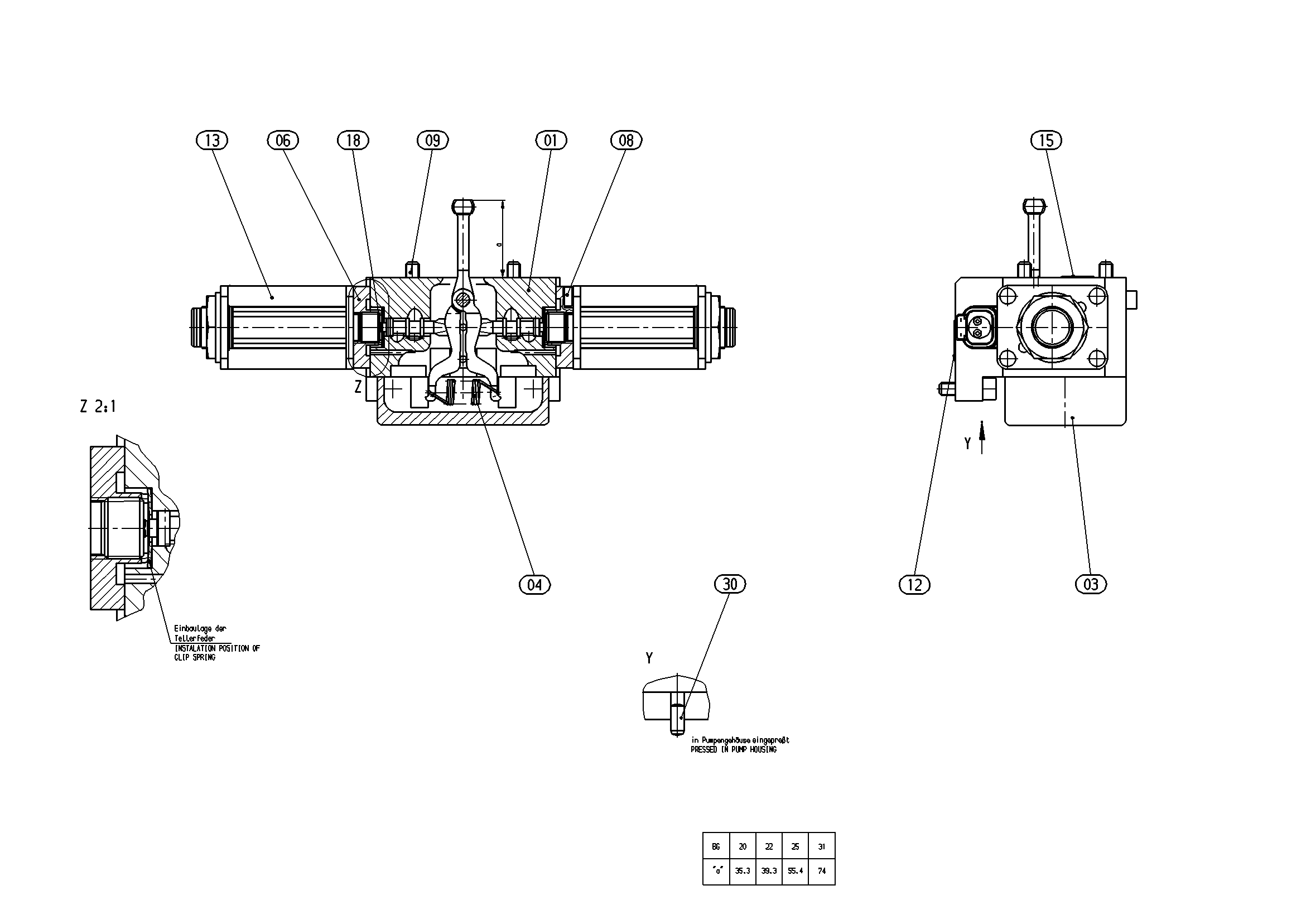

CONTROL MODULER902047593
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902047723 | BASIC UNIT Assembly parts list →L | 1 | |
| 3 | R909443201 | COVER | 1 | |
| R902063327 | EXTENSION SPRING | 1 | ||
| 6 | R902047700 | LOCATION PIECE | 2 | |
| 8 | R909083183 | SOCKET HEAD CAP SCREW | 8 | |
| 9 | R909085831 | SOCKET HEAD CAP SCREW | 4 | |
| R909086178 | O-RINGD | 3 | ||
| R902601851 | PROPORTIONAL SOLENOID | 2 | ||
| R909086333 | O-RING | 2 | ||
| 18 | R902601640 | DISC SPRING | 2 | |
| R913009677 | STRAIGHT PIN | 1 |
