Assembly

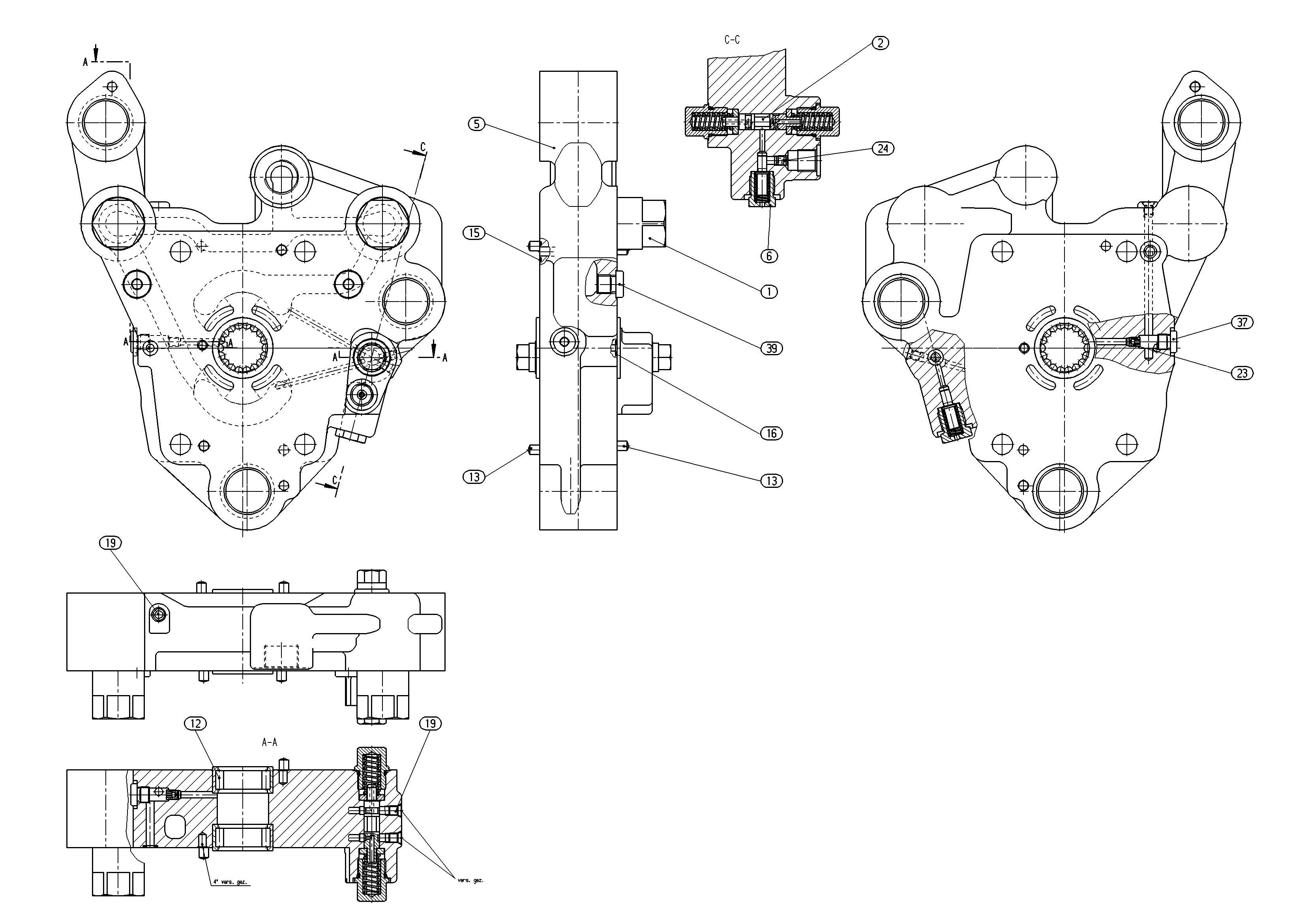

CONNECTION PLATER902047608
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902133866 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R902001377 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902127793 | CONNECTION PLATE | 1 | ||
| R902047671 | SCREW PLUG | 1 | ||
| R909831337 | CYL. ROLLER BEARING | 2 | ||
| R900748992 | STRAIGHT PIN | 4 | ||
| R909085709 | O-RINGD | 1 | ||
| R909086380 | O-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909156494 | NOZZLE | 1 | ||
| R909157343 | NOZZLE | 1 | ||
| R902601931 | SCREW PLUGD | 1 | ||
| R902191251 | SCREW PLUG | 2 |
