Assembly

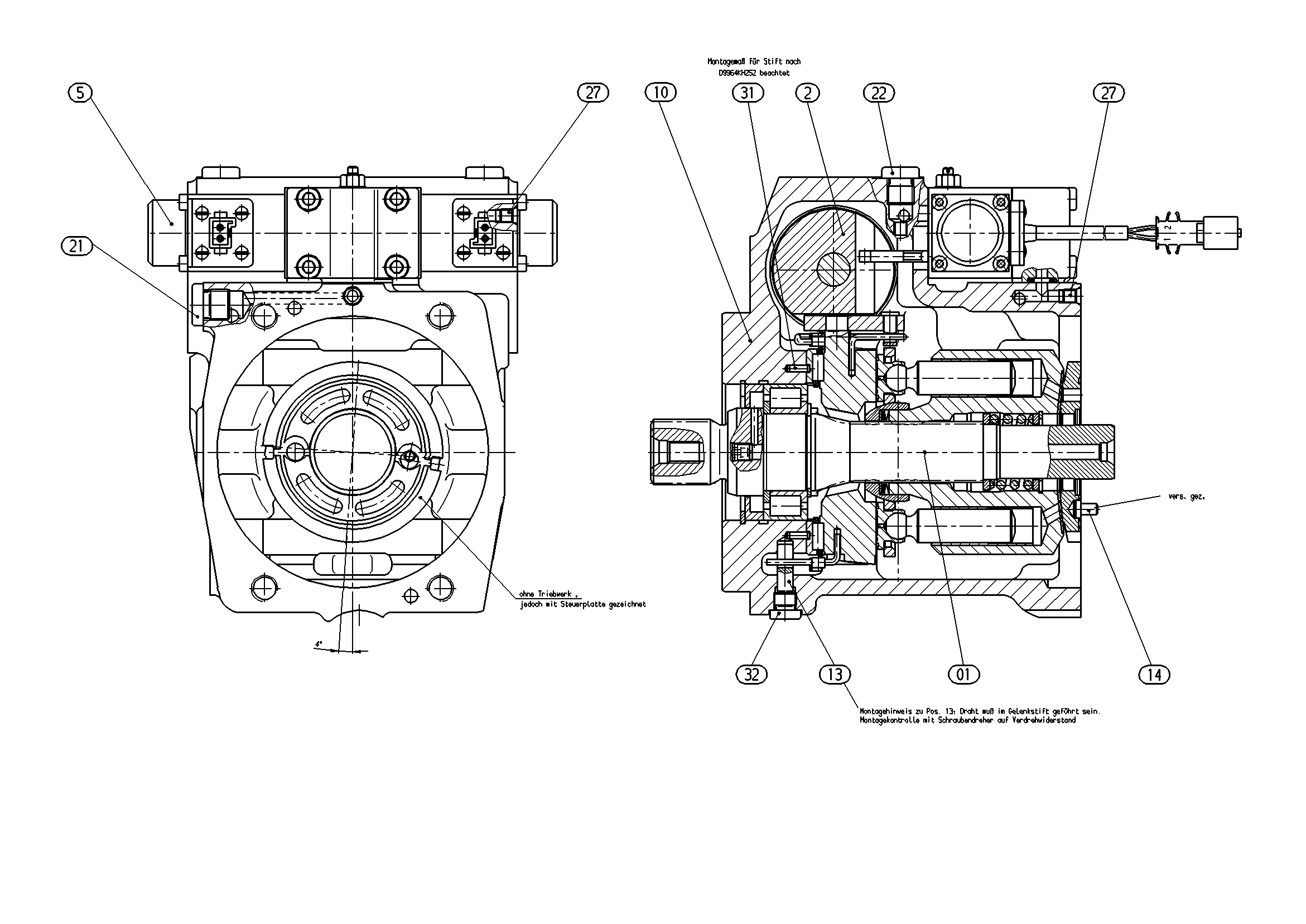

AXIAL-PISTON PUMPR902047639
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902047610 | ROTARY GROUP Assembly parts list →L | 1 | |
| R902029914 | CONTROL Assembly parts list →L | 1 | ||
| R902001390 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902047618 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 1 | ||
| R909425537 | ECCENTRIC BOLT | 1 | ||
| 21 | R902601933 | SCREW PLUGD | 1 | |
| R902601932 | SCREW PLUG | 3 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| 31 | R913016373 | SLOTTED SPRING PIN | 2 | |
| 32 | R902601931 | SCREW PLUG | 1 |
