Assembly

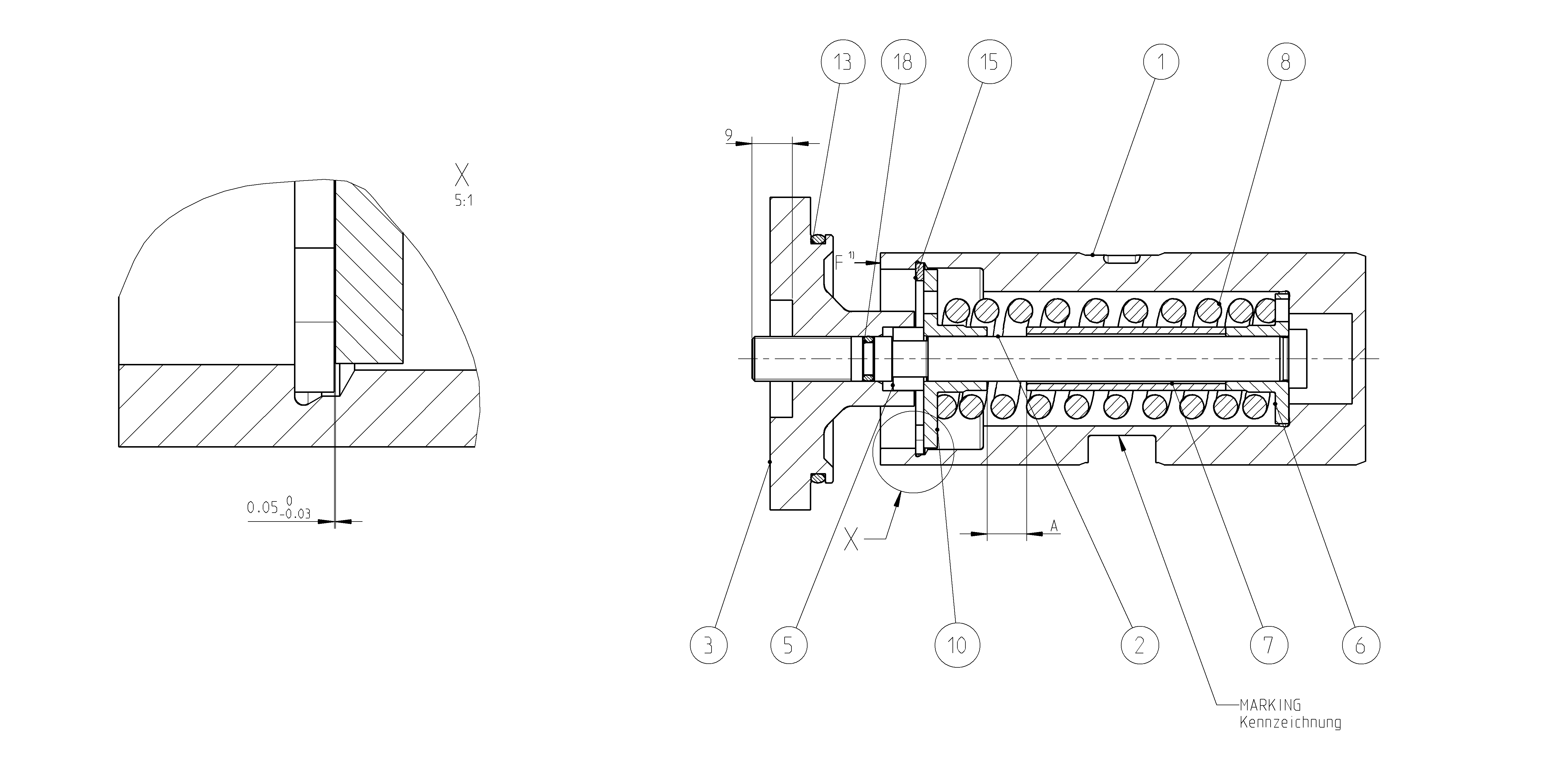

POSITIONING PISTONR902047761
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902017625 | POSITIONING PISTON | 1 | ||
| R909440500 | ROD | 1 | ||
| R902272169 | COVER | 1 | ||
| R909436219 | RING | 1 | ||
| R909436220 | RING | 1 | ||
| R909436221 | RING | 1 | ||
| R909436222 | RING | 1 | ||
| R909436223 | RING | 1 | ||
| R909650222 | RING | 1 | ||
| R909650223 | RING | 1 | ||
| R902035608 | SPRING DISK | 1 | ||
| R909650472 | SPACER BUSHING | 1 | ||
| R902039655 | SPACER BUSHING | 1 | ||
| R902039656 | SPACER BUSHING | 1 | ||
| R902039657 | SPACER BUSHING | 1 | ||
| R902047860 | SPACER BUSHING | 1 | ||
| R902047861 | SPACER BUSHING | 1 | ||
| R902047862 | SPACER BUSHING | 1 | ||
| R909440512 | COMPRESSION SPRING | 1 | ||
| R902035607 | SPRING DISK | 1 | ||
| R909083776 | O-RINGD | 1 | ||
| R909083400 | RETAINING RING | 1 | ||
| R909086380 | O-RINGD | 1 |
