Assembly

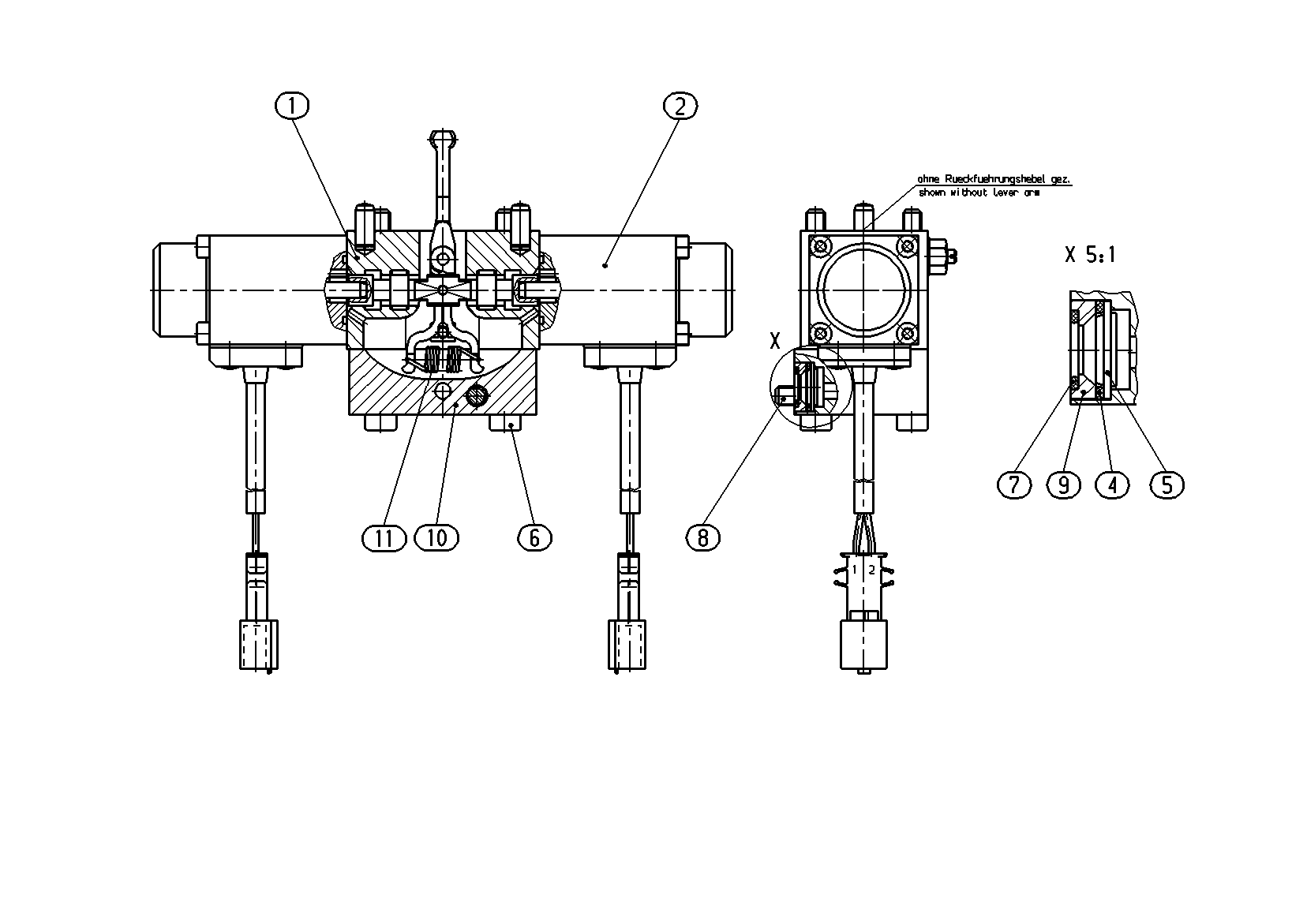

CONTROL UNITR902047932
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902044402 | BASIC UNIT Assembly parts list →L | 1 | ||
| R902030179 | PROPORTIONAL SOLENOID Assembly parts list →L | 2 | ||
| R909086333 | O-RINGD | 1 | ||
| R909830096 | FILTER DISC | 1 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| 7 | R909085709 | O-RINGD | 1 | |
| R909083027 | SOCKET HEAD CAP SCREW | 1 | ||
| 9 | R902047959 | SPACER RING | 1 | |
| R902047958 | CONNECTION COVER | 1 | ||
| R902001144 | EXTENSION SPRING | 1 |
