Assembly

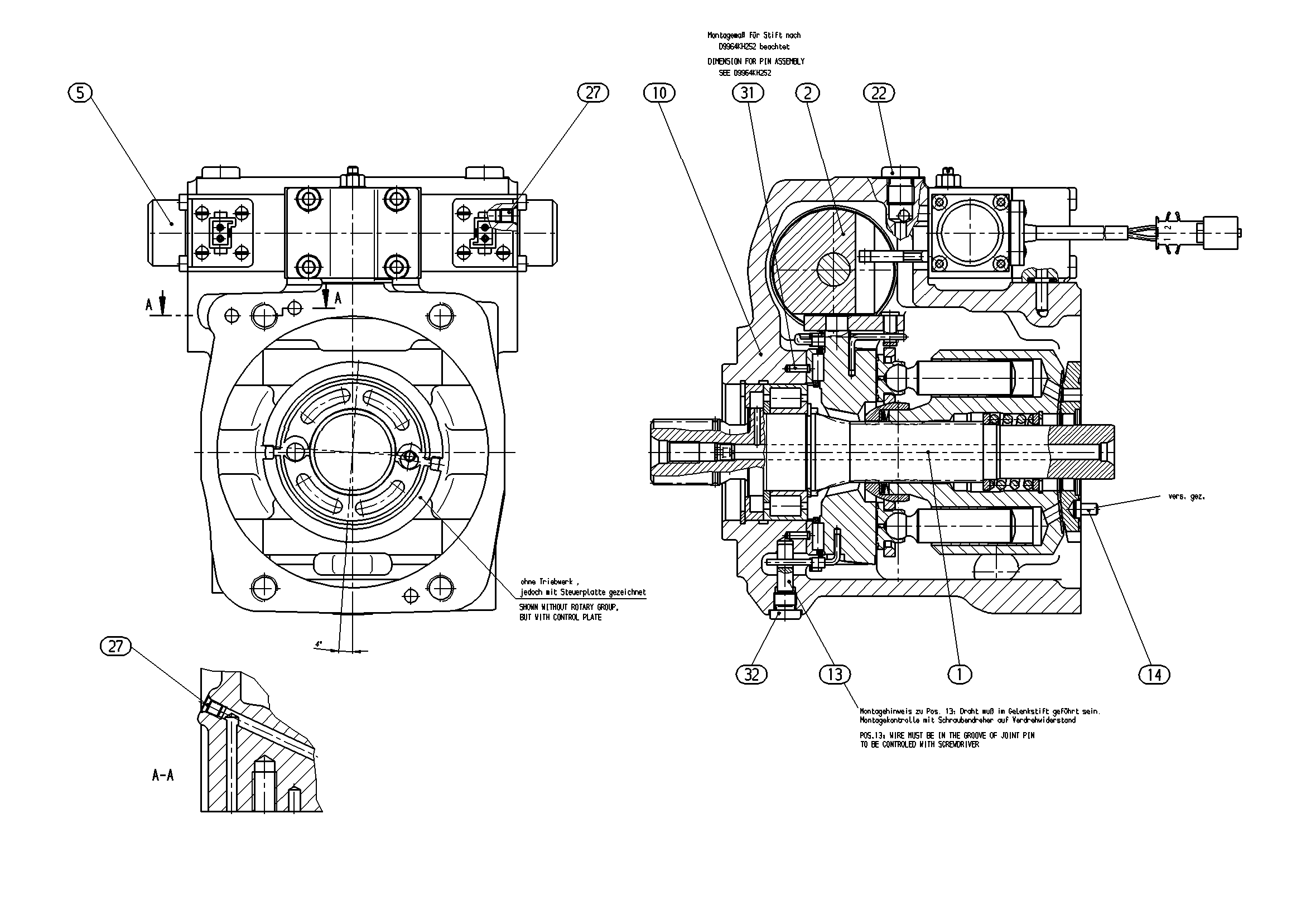

AXIAL-PISTON PUMPR902047952
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902047738 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902029914 | CONTROL Assembly parts list →L | 1 | ||
| R902047953 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902047951 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 1 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R902191107 | SCREW PLUG | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R902191109 | SCREW PLUG | 1 |
