Assembly

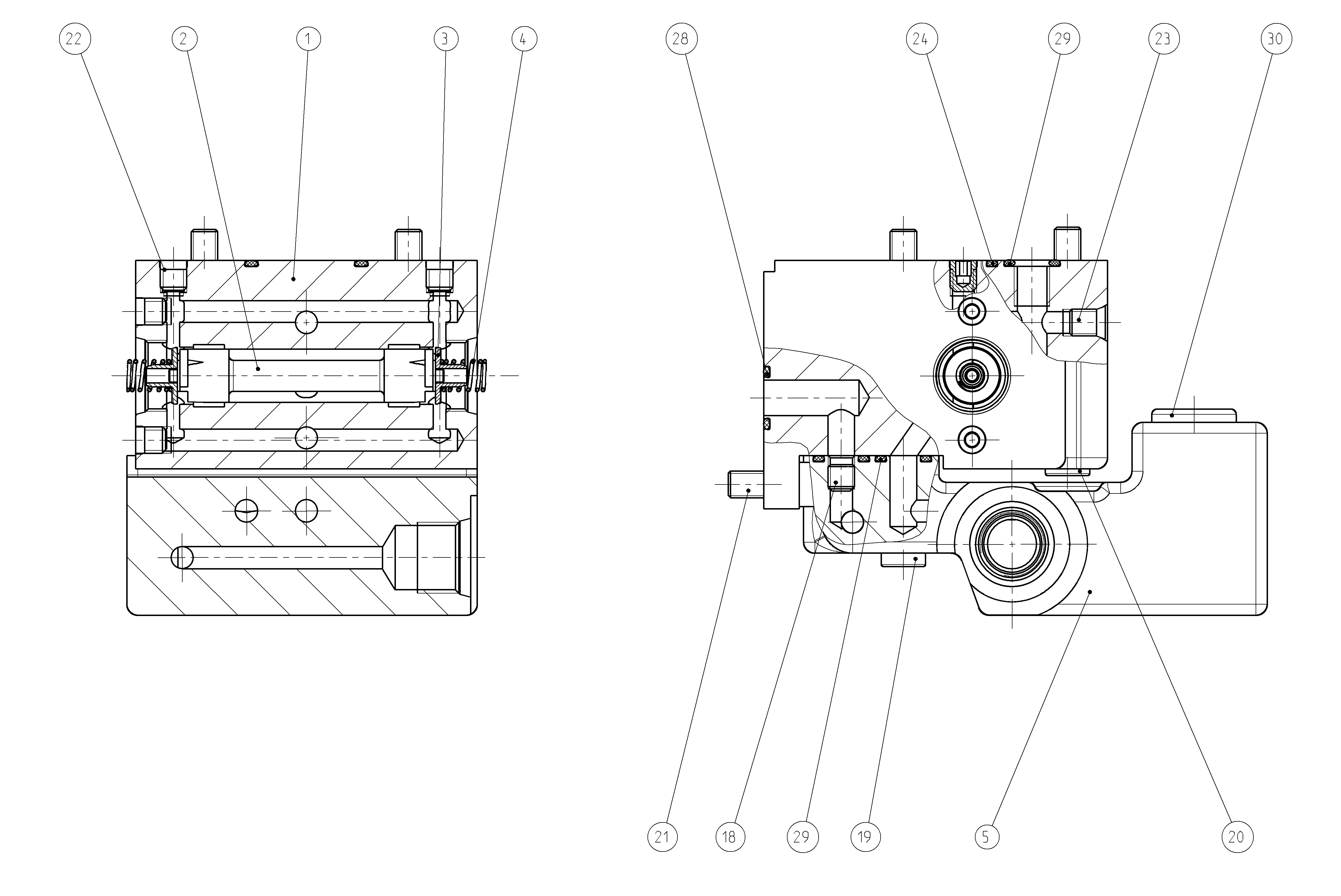

VALVE HOUSINGR902048284
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902139474 | VALVE HOUSING | 1 | ||
| R902048187 | CONTROL PISTON | 1 | ||
| R902236432 | SPRING DISK | 2 | ||
| R909071362 | COMPRESSION SPRING | 2 | ||
| R902028049 | HOUSING | 1 | ||
| R902600503 | SETSCREW | 1 | ||
| R909085700 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083028 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083187 | SOCKET HEAD CAP SCREW | 2 | ||
| R902600705 | PLUG | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R902600641 | O-RINGD | 1 | ||
| R909086332 | O-RINGD | 3 | ||
| R909085709 | O-RINGD | 3 | ||
| R909151979 | SCREW PLUG | 2 |
