Assembly

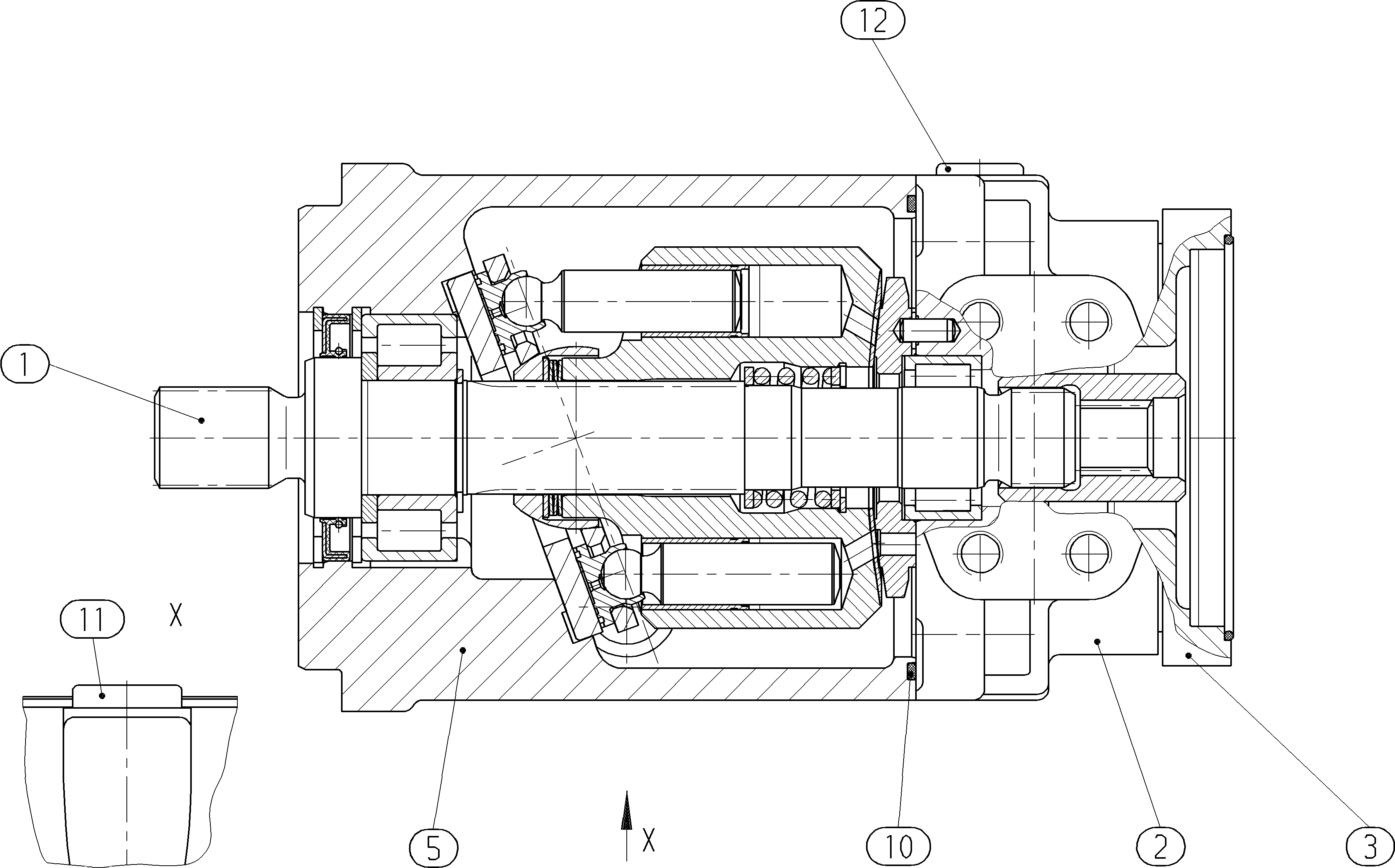

AXIAL-PISTON PUMPR902049850
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902195124 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909429536 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902035539 | BELL HOUSING Assembly parts list →L | 1 | ||
| R902025850 | HOUSING | 1 | ||
| R909154589 | O-RINGD | 1 | ||
| R909153815 | SCREW PLUGD | 2 | ||
| R909151979 | SCREW PLUGD | 1 |
