Assembly

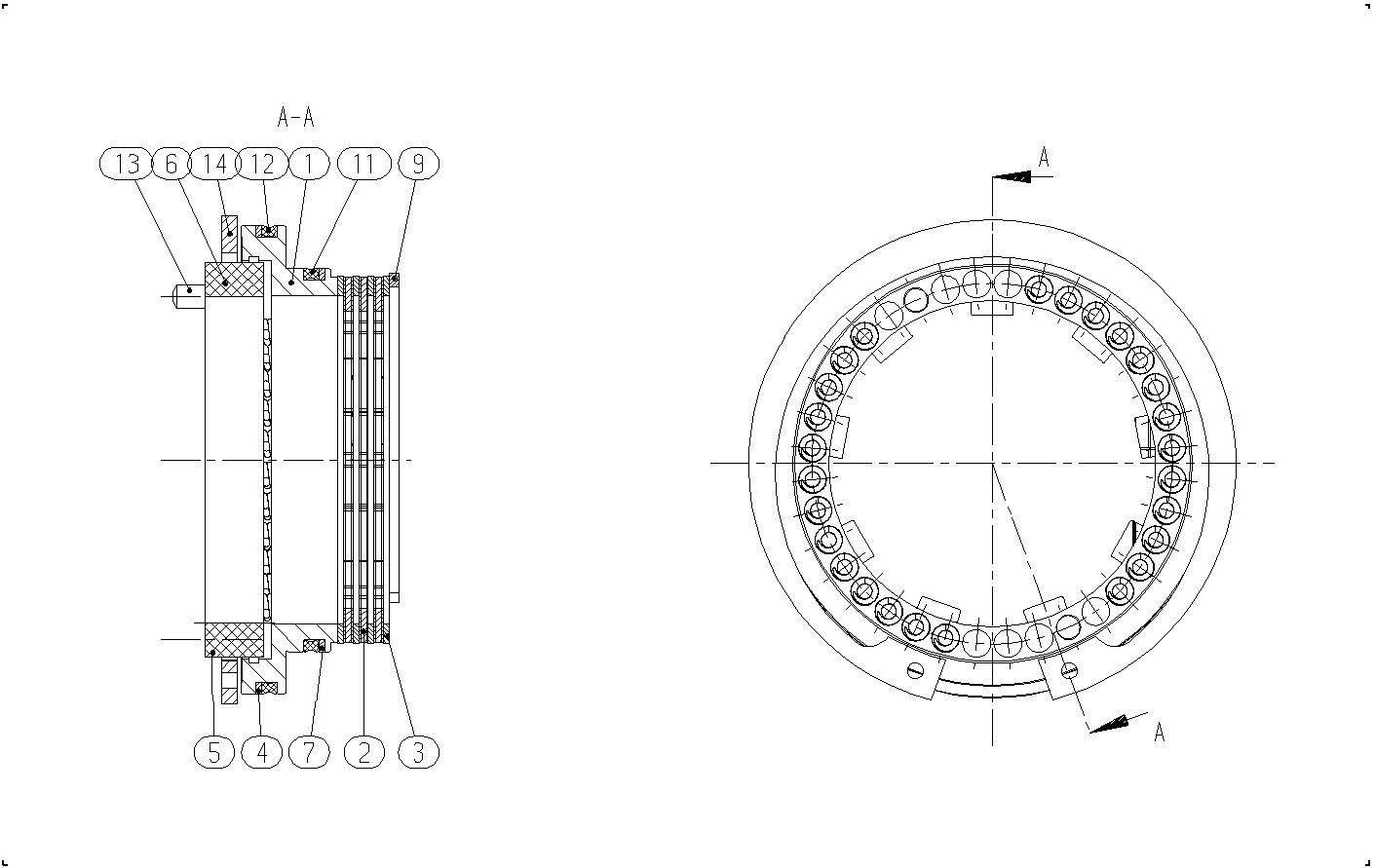

THRUST RINGR902049869
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902049876 | THRUST RING | 1 | |
| R913005251 | DISC | 3 | ||
| R913005252 | COUNTER DISC | 4 | ||
| R902017941 | BACKUP RING | 1 | ||
| 5 | R902029957 | COMPRESSION SPRING | 26 | |
| R902017942 | GUIDE RING | 1 | ||
| 7 | R902017943 | BACKUP RING | 1 | |
| 9 | R909154747 | SNAP RING | 1 | |
| 11 | R902603055 | QUAD RINGD | 1 | |
| 12 | R902603056 | QUAD RINGD | 1 | |
| R913016986 | STRAIGHT PIN | 2 | ||
| 14 | R902062393 | RETAINING RING | 1 |
