Assembly

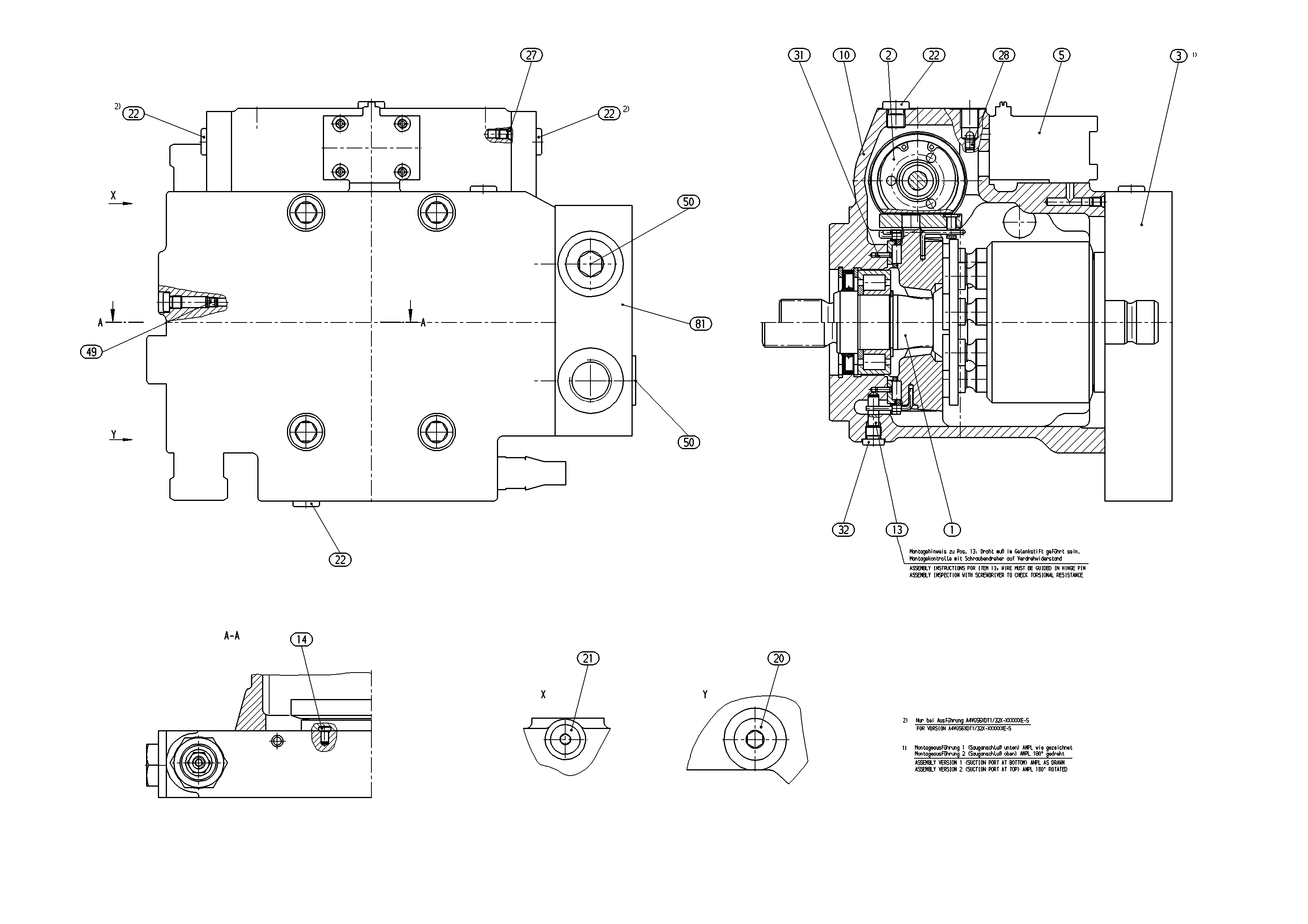

AXIAL-PISTON PUMPR902050394
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902199697 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902007568 | CONTROL Assembly parts list →L | 1 | ||
| R902087514 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| — | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902103594 | HOUSING | 1 | ||
| R902132713 | PIVOT PIN | 1 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909154480 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R909154478 | SCREW PLUG | 2 | ||
| — | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909156493 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909156497 | NOZZLE | 1 | ||
| R909154480 | SCREW PLUG | 2 | ||
| R902083035 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| 98 | R902095502 | SEAL KIT | 1 |
