Assembly

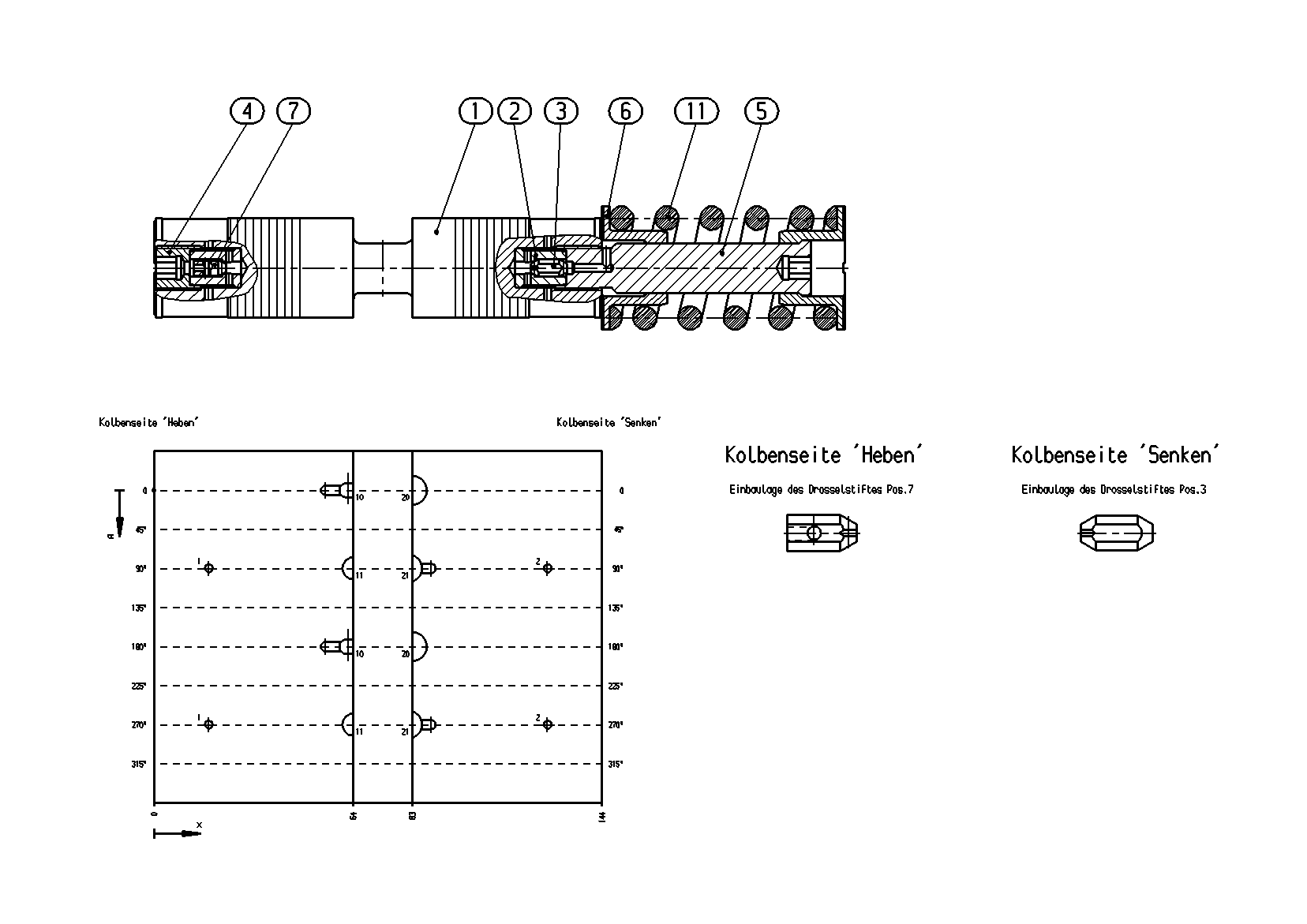

BRAKE PISTONR902051117
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902051075 | BRAKE PISTON | 1 | ||
| R902066227 | VALVE BUSHING | 2 | ||
| R902066296 | THROTTLE PIN | 1 | ||
| R902083486 | VALVE SCREW | 1 | ||
| R902083485 | BOLT | 1 | ||
| R902236298 | SPRING DISK | 2 | ||
| R909425868 | THROTTLE PIN | 1 | ||
| R902050583 | COMPRESSION SPRING | 1 |
