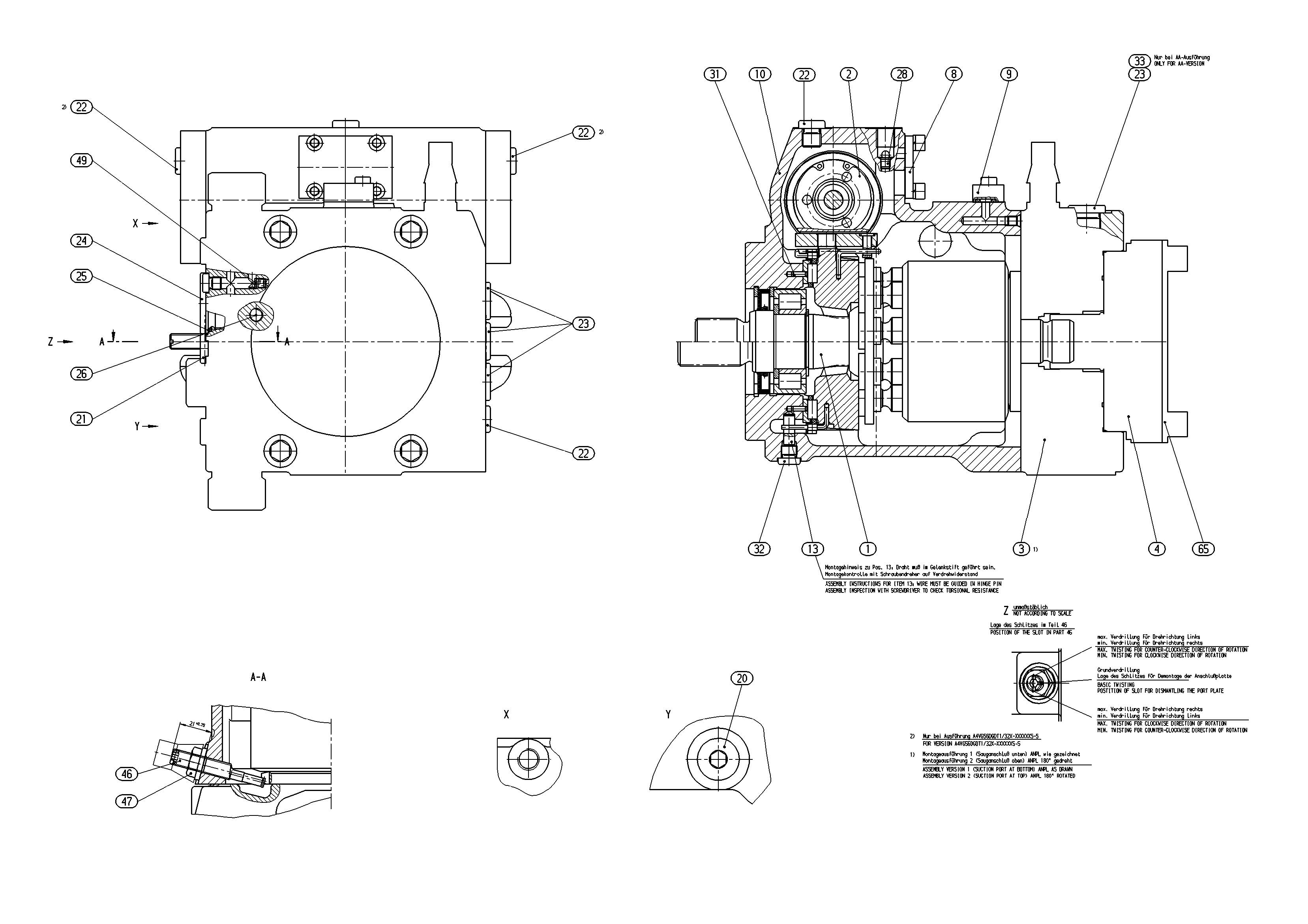

Assembly
AXIAL-PISTON PUMPR902052884
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902199690 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902048057 | CONTROL Assembly parts list →L | 1 | ||
| R909609337 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909606389 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909405730 | SEALING PLATE Assembly parts list →L | 1 | ||
| R909609783 | SEALING COVER Assembly parts list →L | 1 | ||
| R902029526 | HOUSING | 1 | ||
| R902132713 | PIVOT PIN | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909153815 | SCREW PLUGD | 4 | ||
| R909083228 | SCREW PLUG | 1 | ||
| R909086731 | O-RINGD | 1 | ||
| R909153572 | SCREW PLUG | 1 | ||
| R909156493 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909435856 | ECCENTRIC SCREW | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| R909831347 | PLUG | 1 | ||
| R909438015 | COVER Assembly parts list →L | 1 | ||
| 98 | R902095507 | SEAL KIT | 1 |
